Wiper and Washer Switch Circuit
CIRCUIT DESCRIPTIONThis circuit detects the state of the wiper and washer switch and send it to the passenger side J/B ECU.

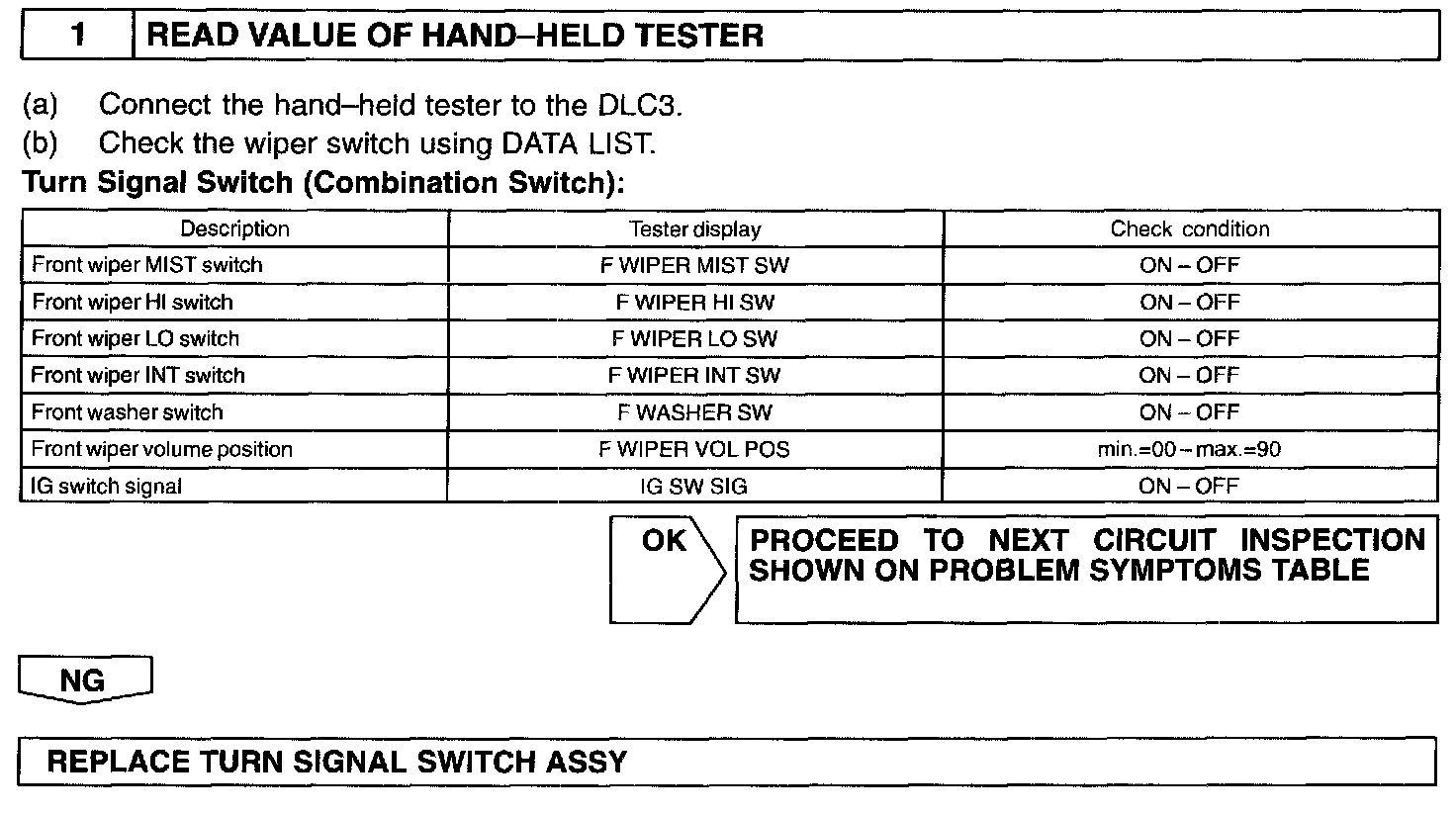

Step 1:
INSPECTION PROCEDURE
This circuit detects the state of the wiper and washer switch and send it to the passenger side J/B ECU.
INSPECTION PROCEDURE
