Wiper Switch (HI Speed) Circuit
CIRCUIT DESCRIPTIONPassenger side J/B ECU receives the HI position signal of the wiper switch to operate the wiper motor at HI speed.

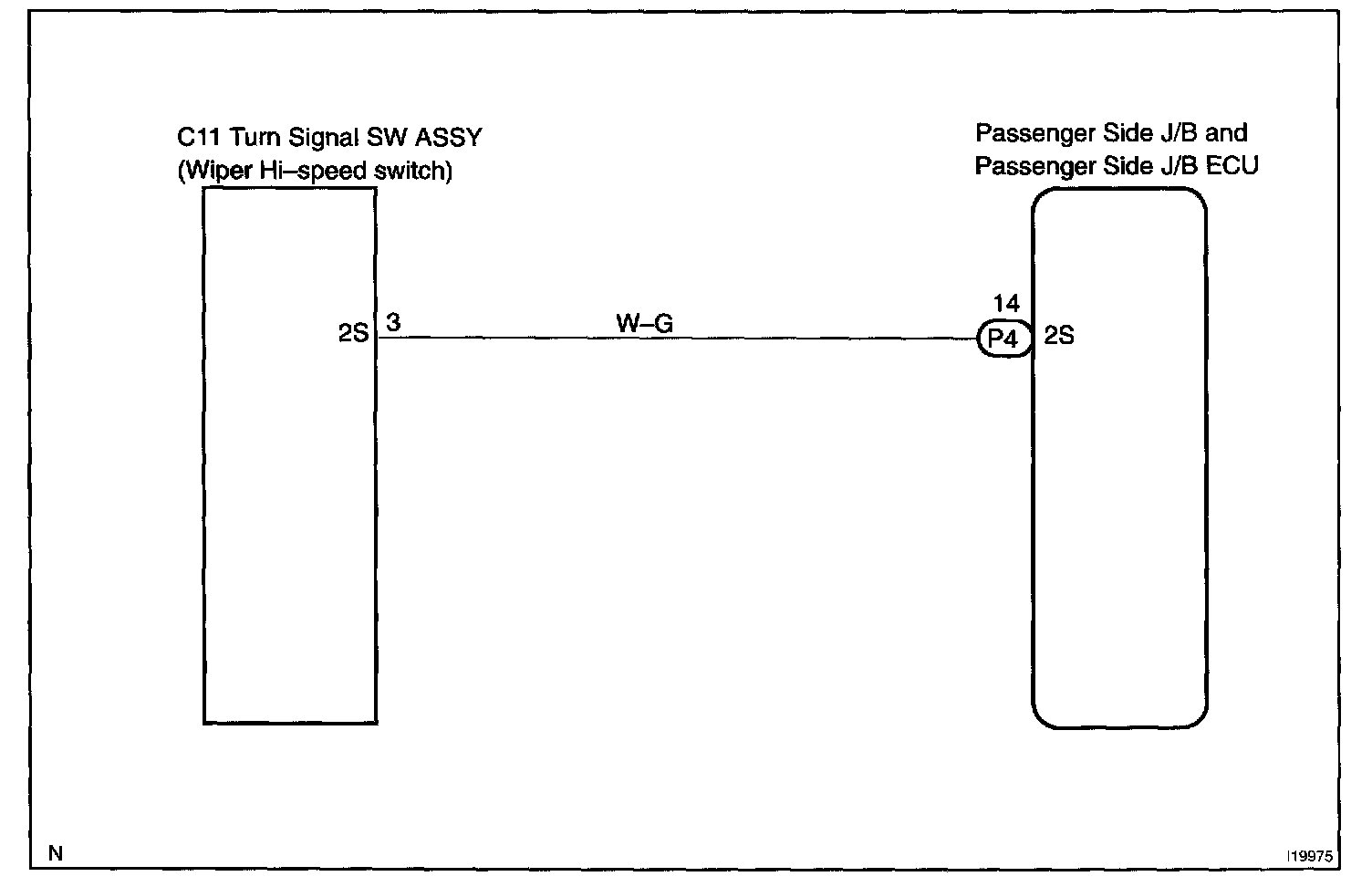

Wiring Diagram:

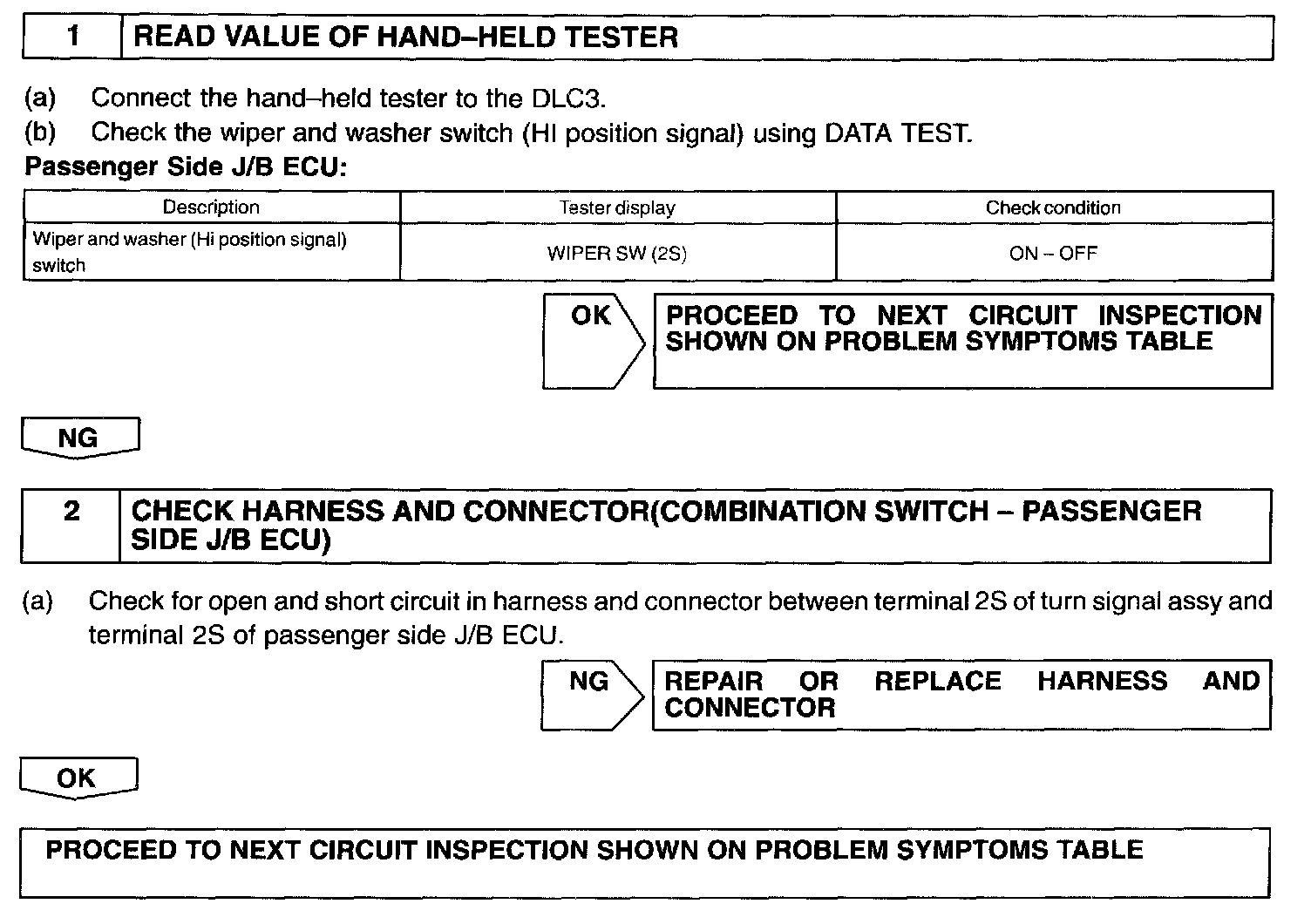

Step 1 - 2:
INSPECTION PROCEDURE
Passenger side J/B ECU receives the HI position signal of the wiper switch to operate the wiper motor at HI speed.
INSPECTION PROCEDURE
