Washer Motor and Relay Circuit

CIRCUIT DESCRIPTION
Front lamp ECU receives washer switch information from the combination switch, and operates the washer motor.

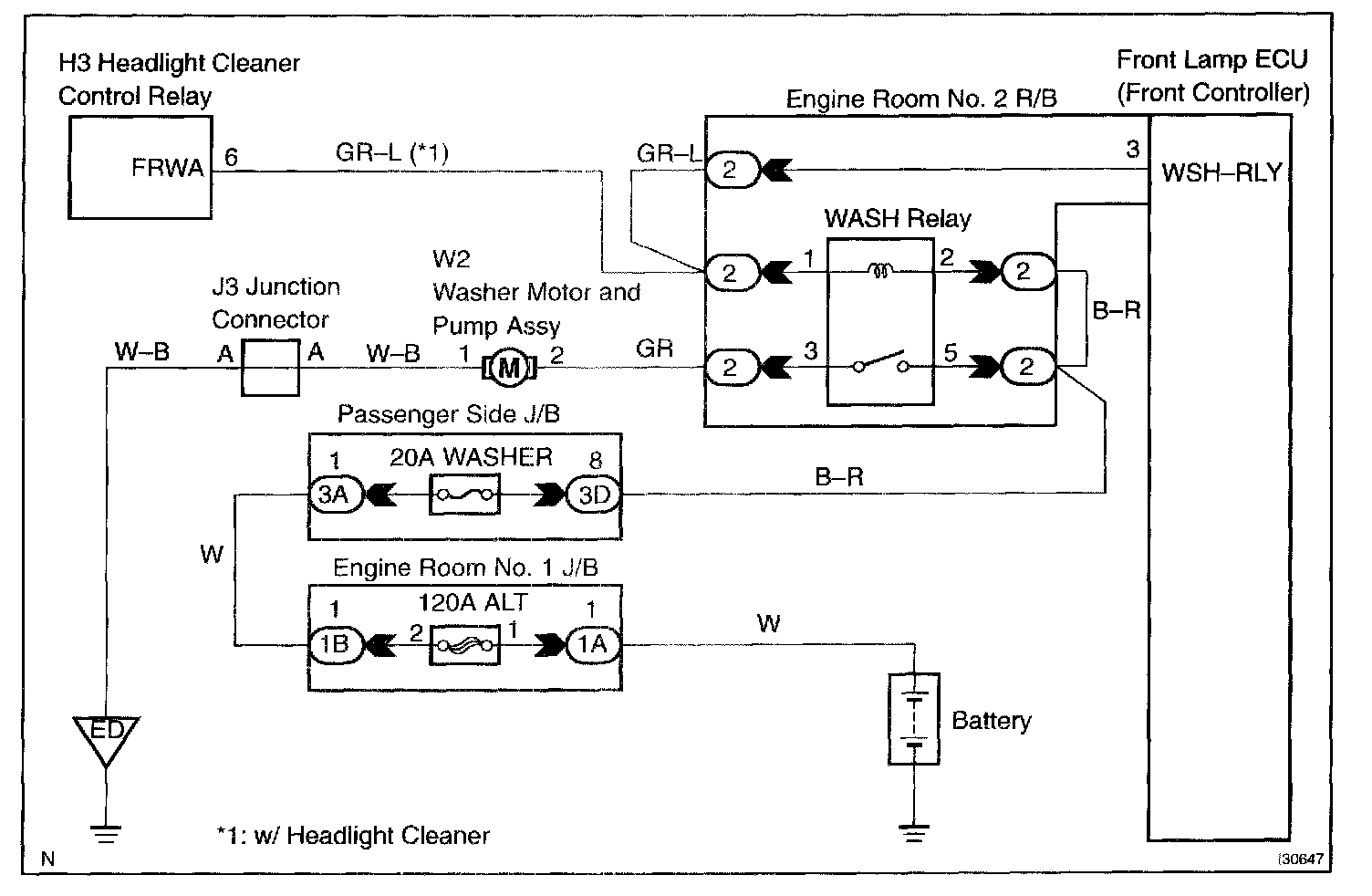

Wiring Diagram:

Step 1:

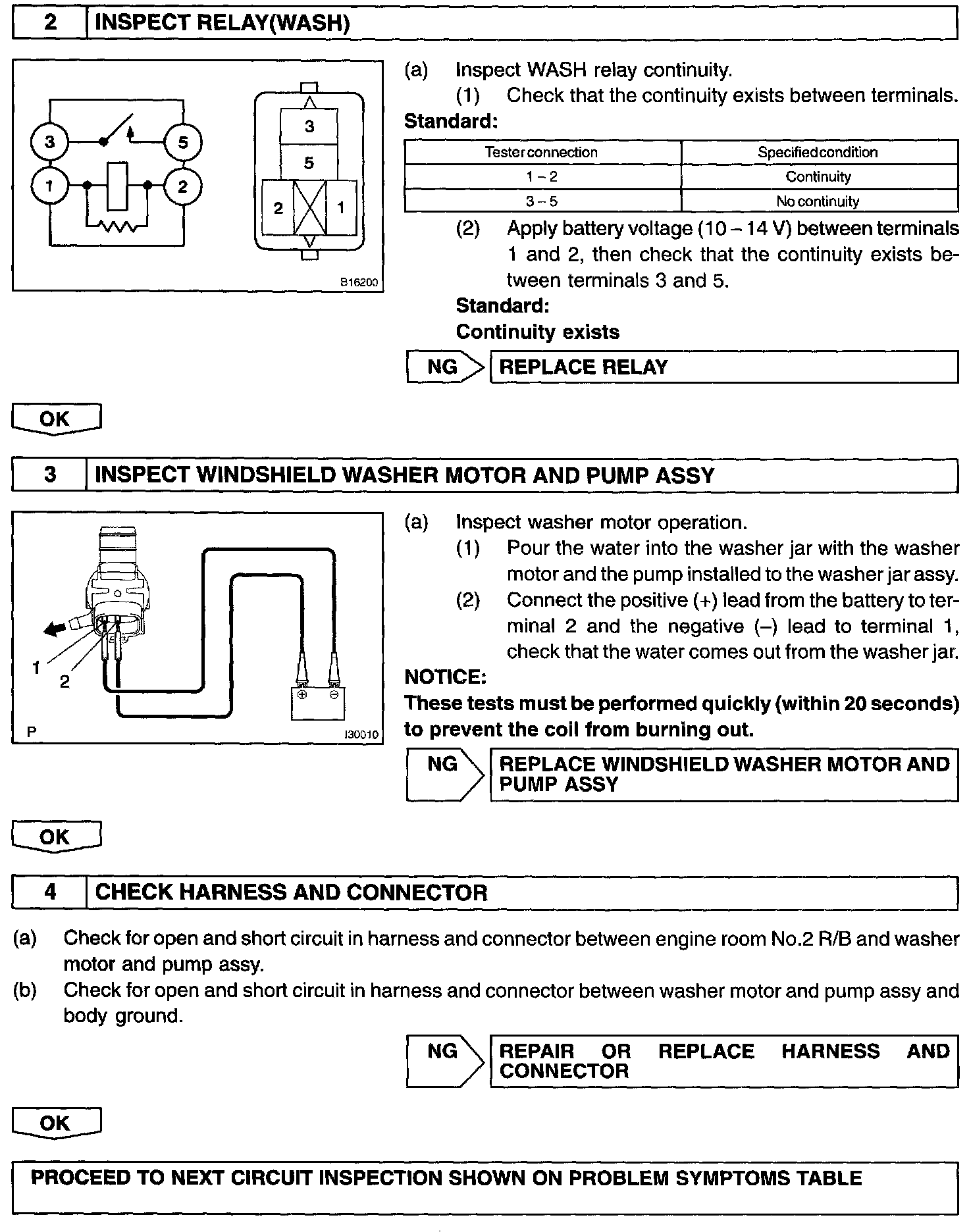

Step 2 - 4:

INSPECTION PROCEDURE
