Headlight Cleaner Switch Circuit

CIRCUIT DESCRIPTION
This circuit detects the conditions of the headlight cleaner switch

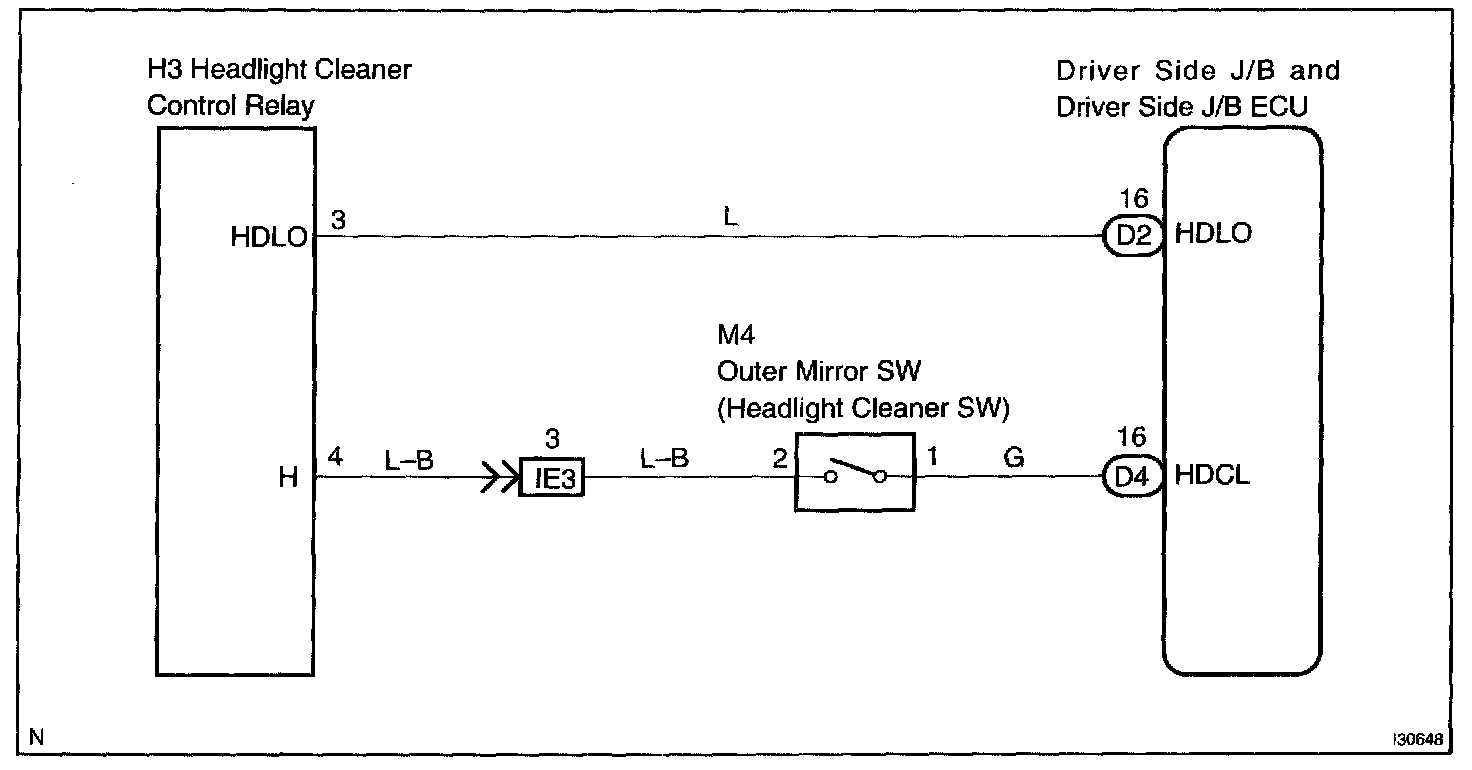

Wiring Diagram:






Step 1:




Step 2:

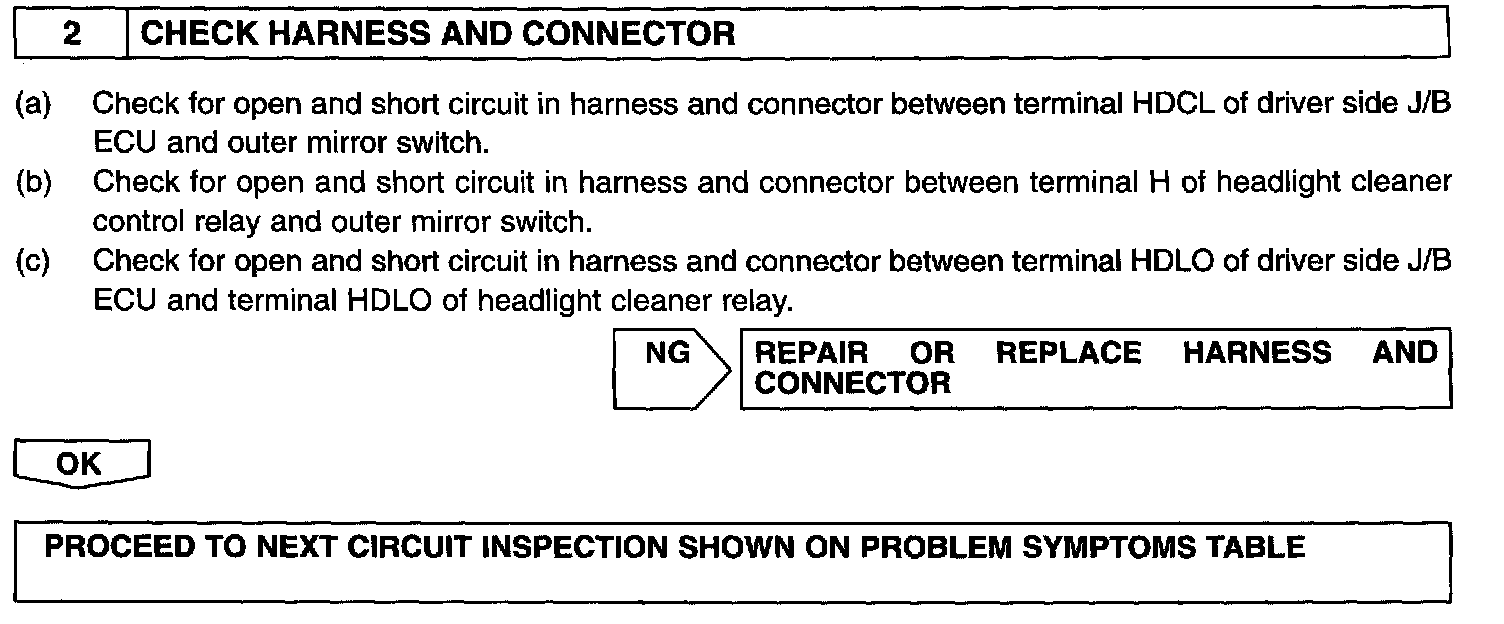

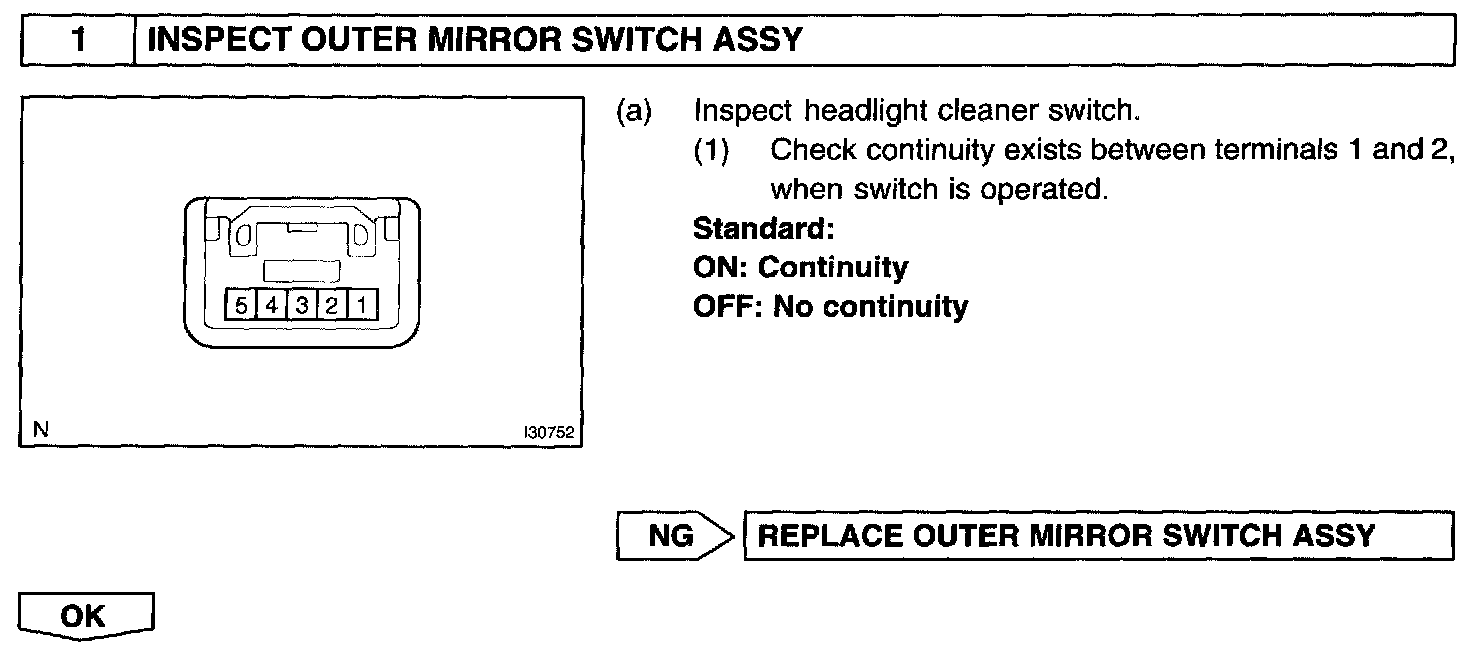

INSPECTION PROCEDURE
