Headlamp Washer Motor: Service and Repair

Wiper And Washer Part 1:

Wiper And Washer Part 2:

HEADLAMP WASHER ACTUATOR SUB-ASSEMBLY LH

REPLACEMENT

1. REMOVE RADIATOR GRILLE
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER

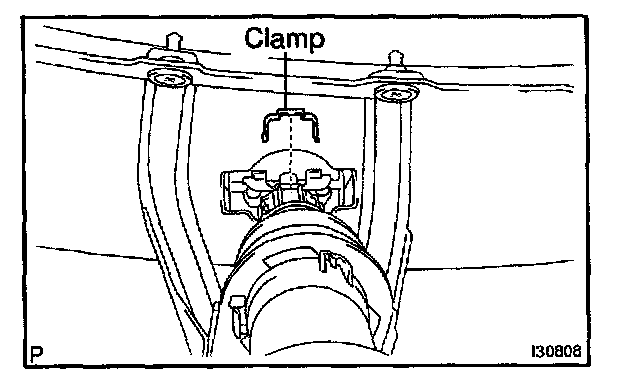

5. REMOVE HEADLAMP CLEANER WASHER NOZZLE
a. Remove the clamp.
b. Remove the headlamp cleaner washer nozzle

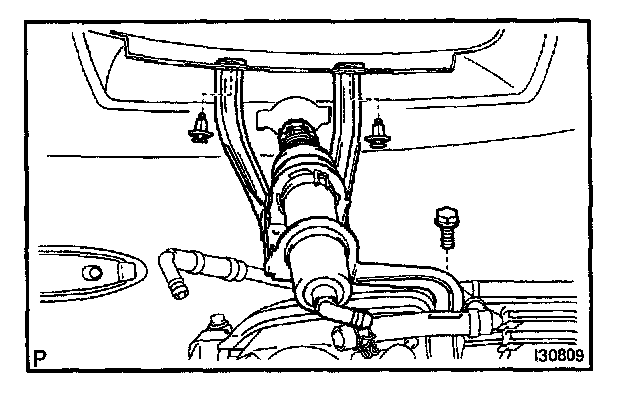

6. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSEMBLY LH
a. Disconnect the headlamp cleaner hose.
b. Remove the bolt and 2 clips.
c. Remove the headlamp washer actuator sub-assembly LH.
