Pre-Check

PRE-CHECK

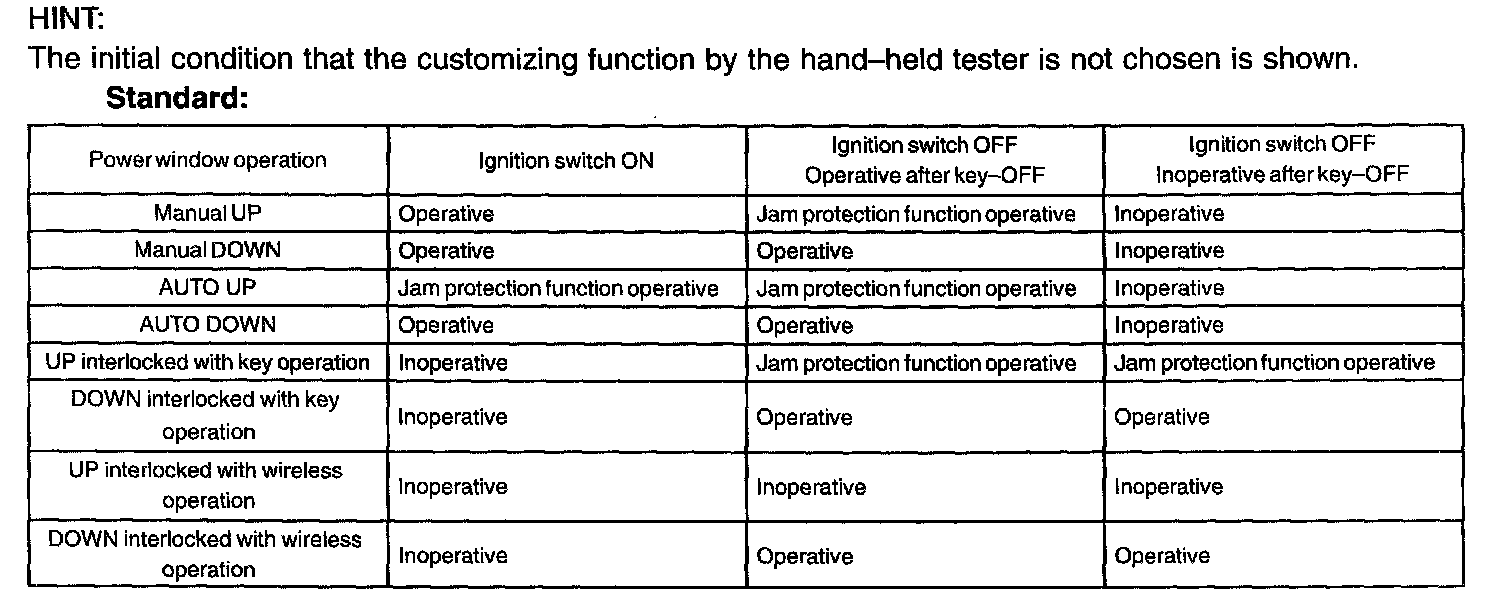

1. INSPECTION POWER WINDOW OPERATION

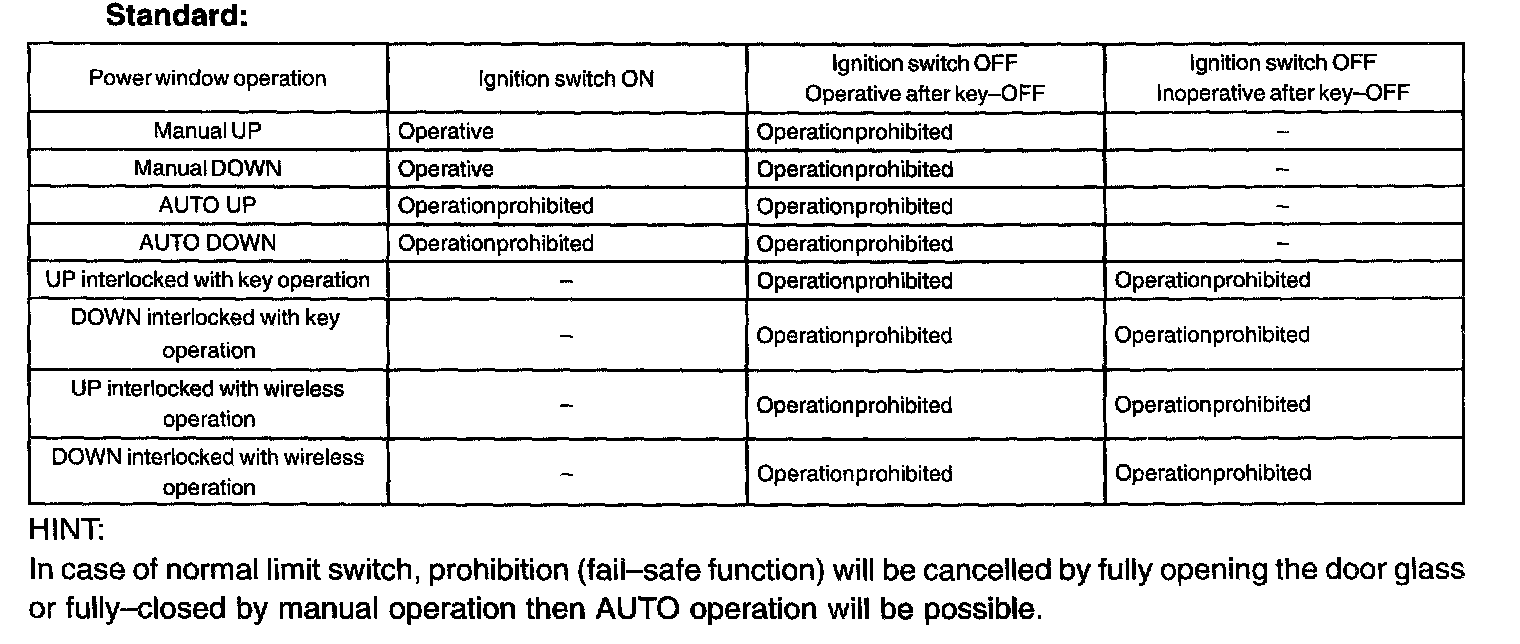

2. INSPECT POWER WINDOW FAIL-SAFE FUNCTION
a. When an abnormality is detected in the limit switch and pulse sensor for operating the jam protection function (DTC: B1231/31, B1232/32, B1233/33, B1234/34), the following power window operations will be prohibited for fail-safe.










3 INSPECT ECU DATA MONITOR WITH HAND-HELD TESTER

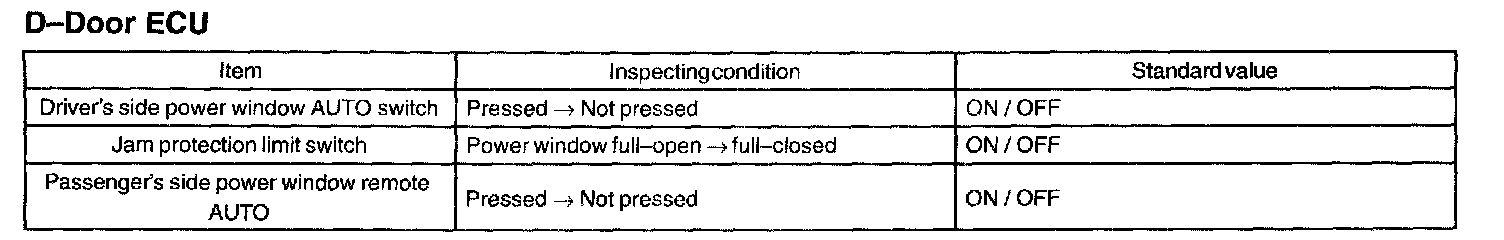

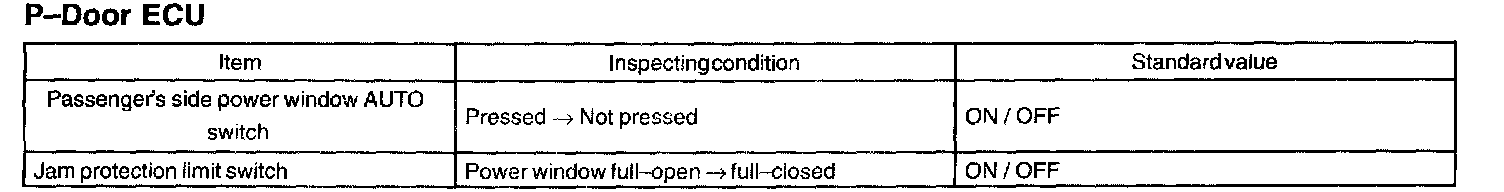

a. Check the driver (D) and passenger (P) door ECU condition by the ECU data monitor.

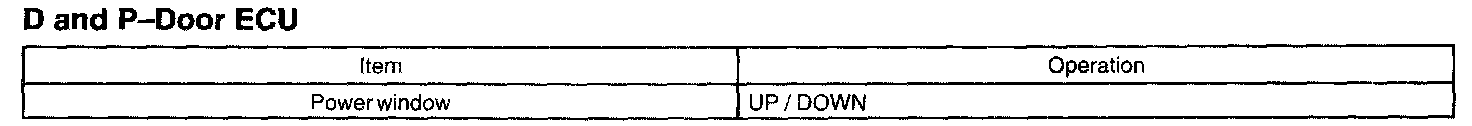

4. INSPECT ACTIVE TEST WITH HAND-HELD TESTER
a. Check the driver's and passenger's power window operation by the active test.

D-Door ECU:

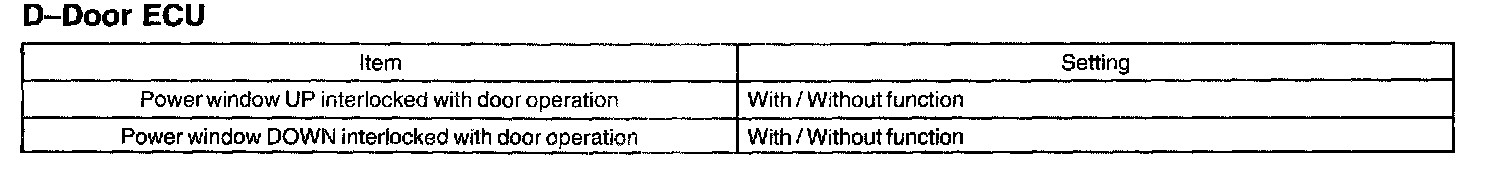

5. INSPECT CUSTOMIZING FUNCTION (REFERENCE):
a. Select the given controls on the power window control system.
