Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

1. CHECK LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)

Terminals Of ECU Part 1:

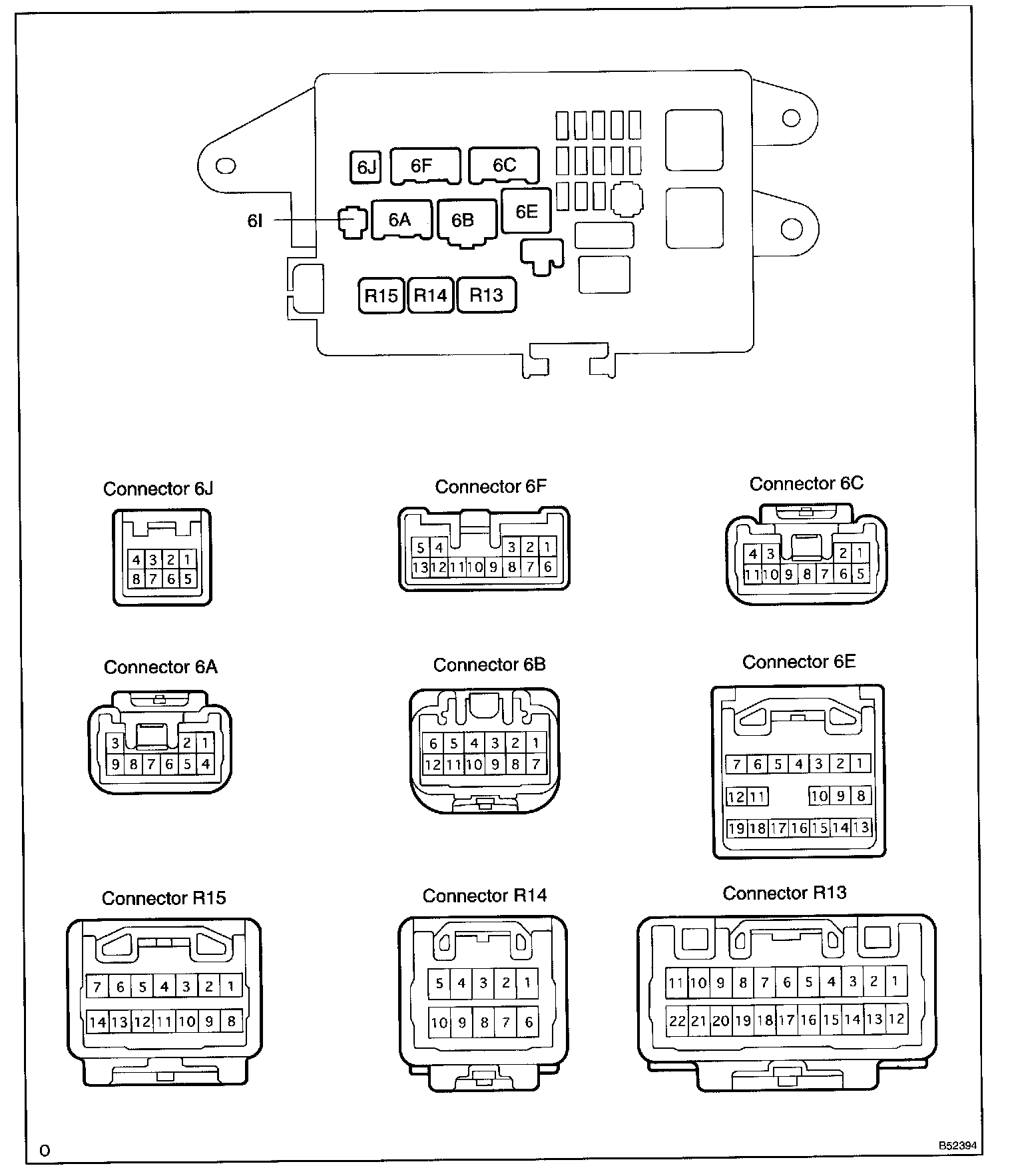

Terminals Of ECU Part 2:

a. Disconnect the J/B connectors 6F and 6J.

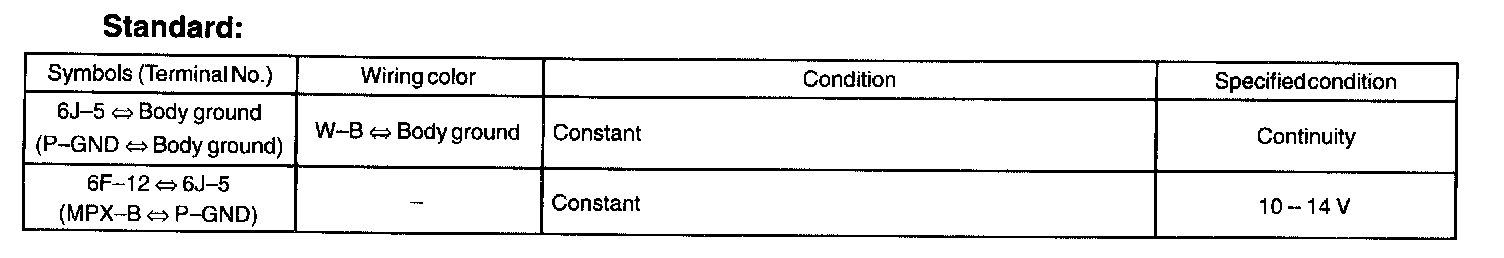

b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
