Home >> Lexus >> 2003 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Service Data

Service Data

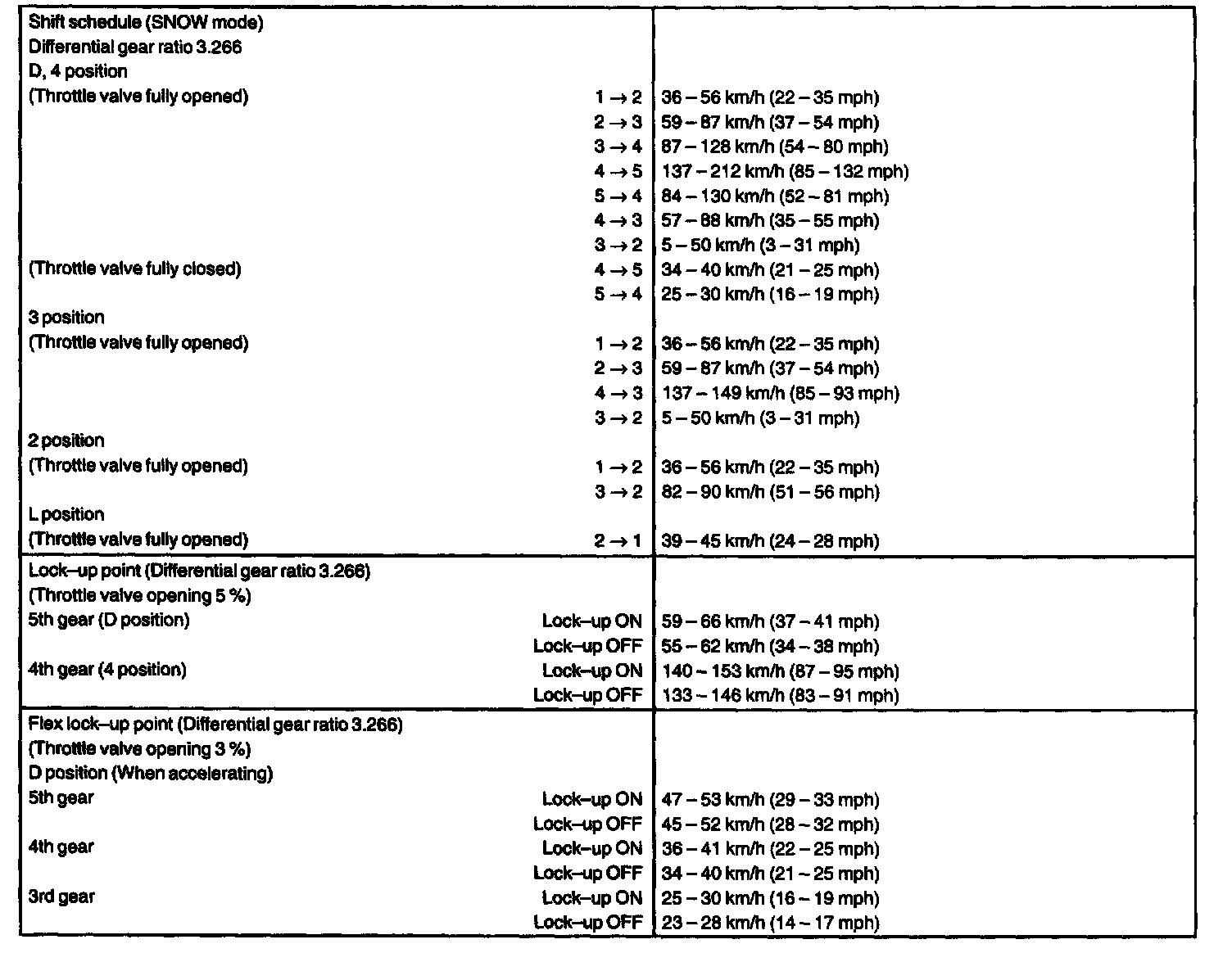

Part 1 Of 2:

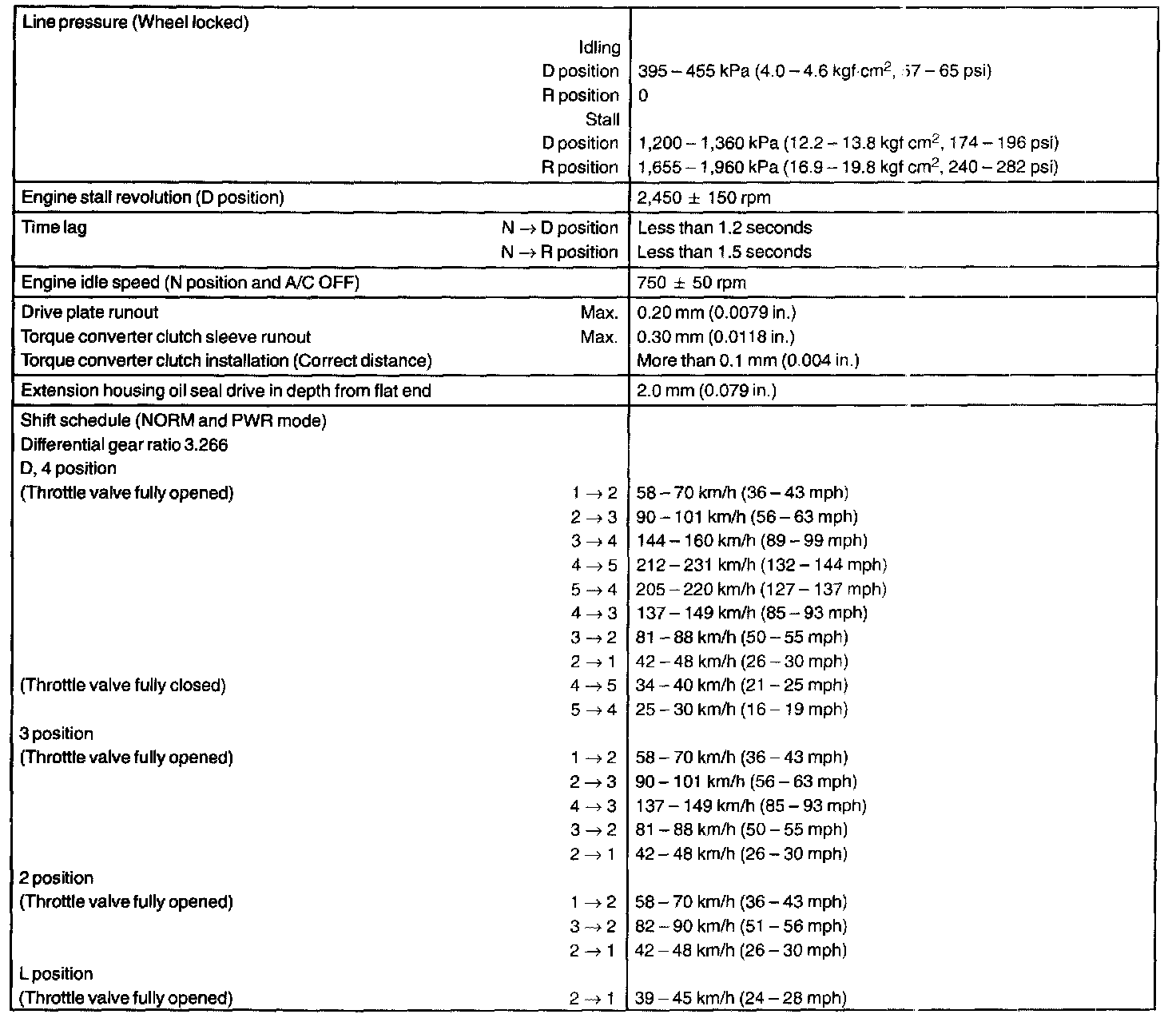

Part 2 Of 2:





SERVICE DATA
