Shifter A/T: Adjustments
ADJUSTMENT1. INSPECT SHIFT LEVER POSITION
a. When shifting from P to R position only with ignition switch ON and brake pedal, make sure that the shifting lever moves smoothly and can be moderately operated.
b. When starting engine, make sure that the vehicle moves forward when shifting from N to D position and moves rearward when shifting to R position.

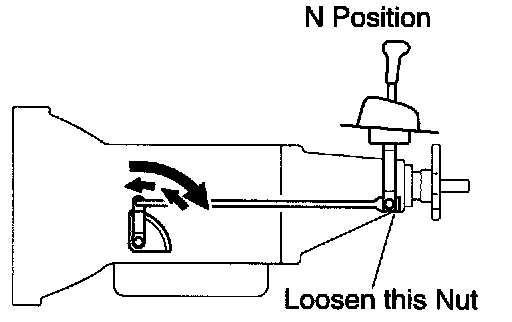

2. ADJUST SHIFT LEVER POSITION
a. Loosen the nut.
b. Push the control shaft fully rearward.
c. Return the control shaft lever 2 notches to N position.
d. Set the shift lever to N position.
e. While holding the shift lever lightly toward the R position side, tighten the nut.
Torque: 13 kgf-cm (130 kgf-cm, 10 ft. lbs.)
