Shift Interlock Solenoid: Testing and Inspection

KEY INTER LOCK SOLENOID INSPECTION





1. INSPECT KEY INTER LOCK SOLENOID
a. Disconnect the solenoid connector.

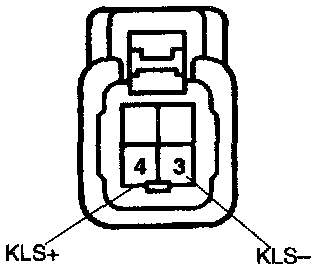

b. Connect KLS+ (4) terminal to the batteries, positive (+) terminal, and KLS- (3) terminal to the battery negative (-) terminal, and apply about 12V between KLS+ - KLS- terminals.
Check that operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.
