Rear

REPLACEMENT
1. REMOVE WHEEL HUB ORNAMENT SUB-ASSY
a. Remove the 5 nuts and rear wheel.
2. REMOVE REAR WHEEL
a. Remove the 10 bolts and wheel hub ornament sub-assy.





3. REMOVE REAR STABILIZER LINK ASSY LH

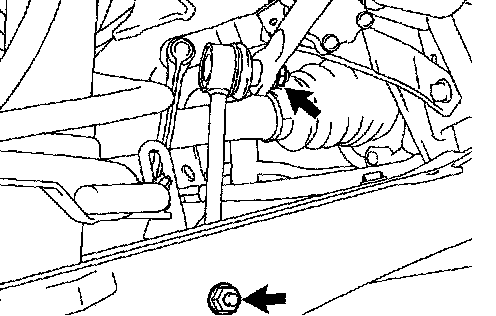

a. Remove the bolt and nut from the rear suspension arm No. 2 LH.
b. Remove the nut and stabilizer link from the stabilizer bar.
c. Employ the same manner described above to the other side.





4. INSPECT REAR STABILIZER LINK ASSY LH

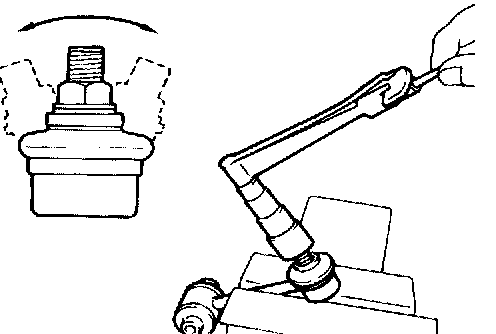

a. As shown, flip the ball joint stud back and forth 5 times, before installing the nut.
b. Using a torque wrench, turn the nut continuously one turn per 2 - 4 seconds and take the torque reading on the 5th turn.
Turning torque. 0.05 - 1.0 Nm (0.5 - 10 kgf-cm, 0.4 - 9 inch lbs.)

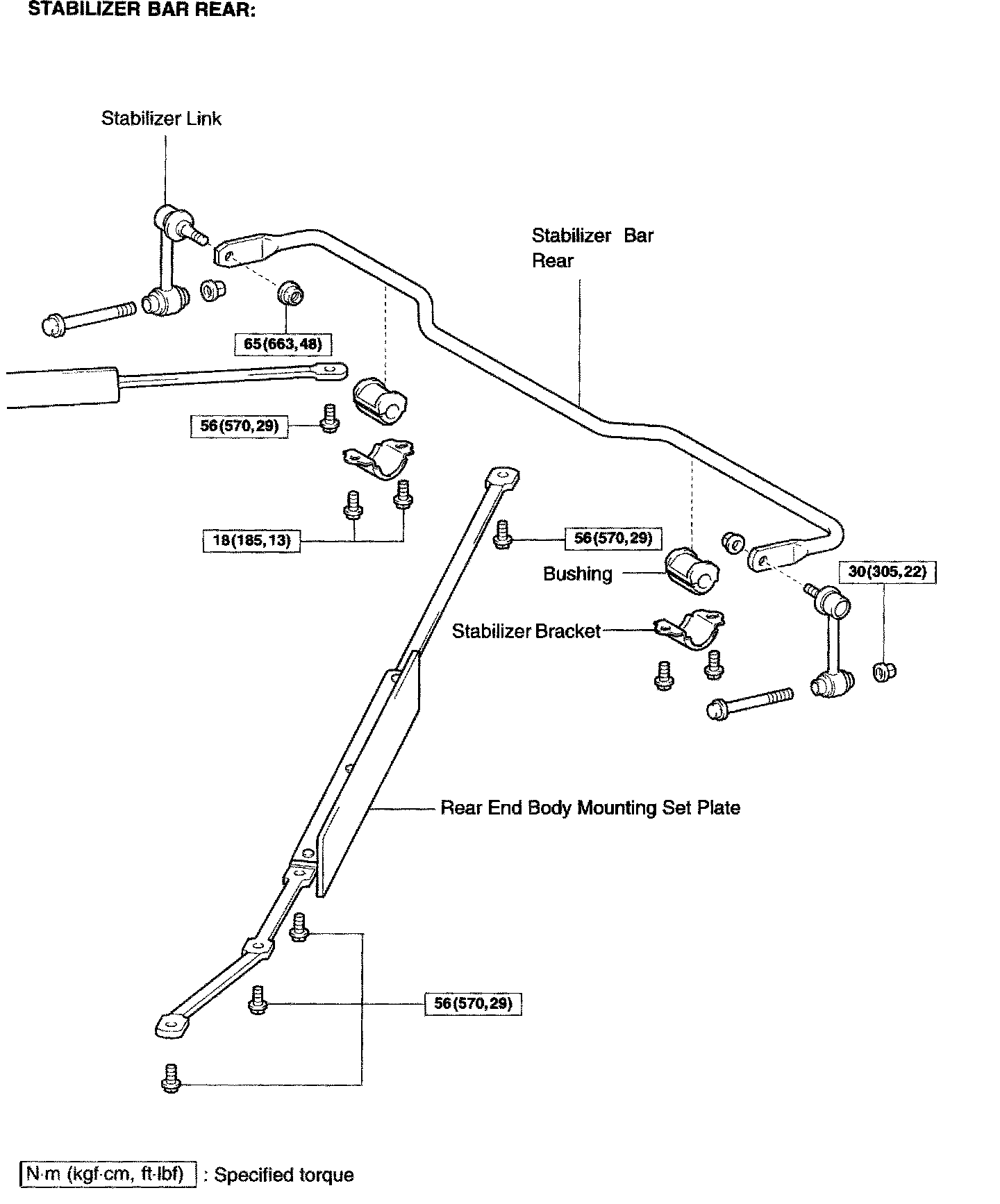

5. REMOVE STABILIZER BAR REAR

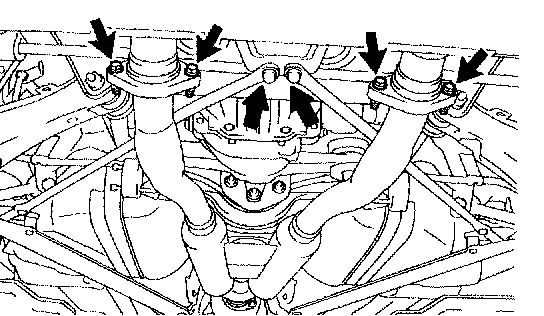

a. Remove the 4 bolts, nuts and disconnect the exhaust pipe.
b. Remove the 8 bolts and rear end body mounting set plate.

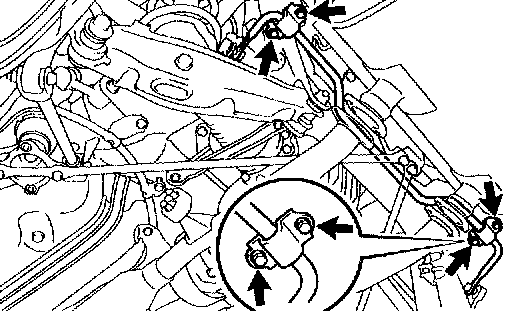

c. Remove the 4 bolts and 2 stabilizer bar brackets and stabilizer bar from the suspension member.
d. Remove the 2 bushings from the stabilizer bar.
6. INSTALL STABILIZER BAR REAR
a. Install the 2 bushings to the stabilizer bar.
b. Install the stabilizer bar to the suspension member with the 2 stabilizer brackets and 4 bolts.
Torque: 18 Nm (185 kgf-cm, 13 ft. lbs.)





7. INSTALL REAR STABILIZER LINK ASSY LH

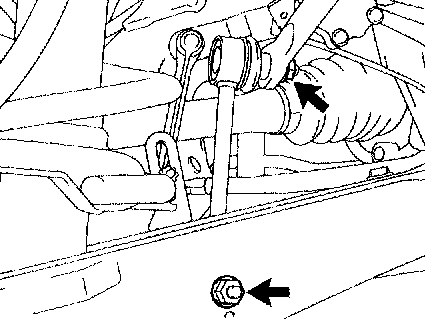

a. Install the stabilizer link to the rear suspension arm assy No. 2 with the bolt and nut.
Torque: 65 Nm (663 kgf-cm, 48 ft. lbs.)
b. Install the stabilizer link to the stabilizer bar with the nut.
Torque: 30 Nm (305 kgf-cm, 22 ft. lbs.)
c. Install the rear bumper side extension sub-assy with the 8 bolts.
Torque: 56 Nm (570 kgf-cm, 29 ft. lbs.)
d. Connect the exhaust pipe with the 4 bolts and nuts.
Torque: 43 Nm (438 kgf-cm, 32 ft. lbs.)
8. INSTALL REAR WHEEL
a. Install the rear wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
9. INSTALL WHEEL HUB ORNAMENT SUB-ASSY
a. Install the wheel hub ornament sub-assy with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
