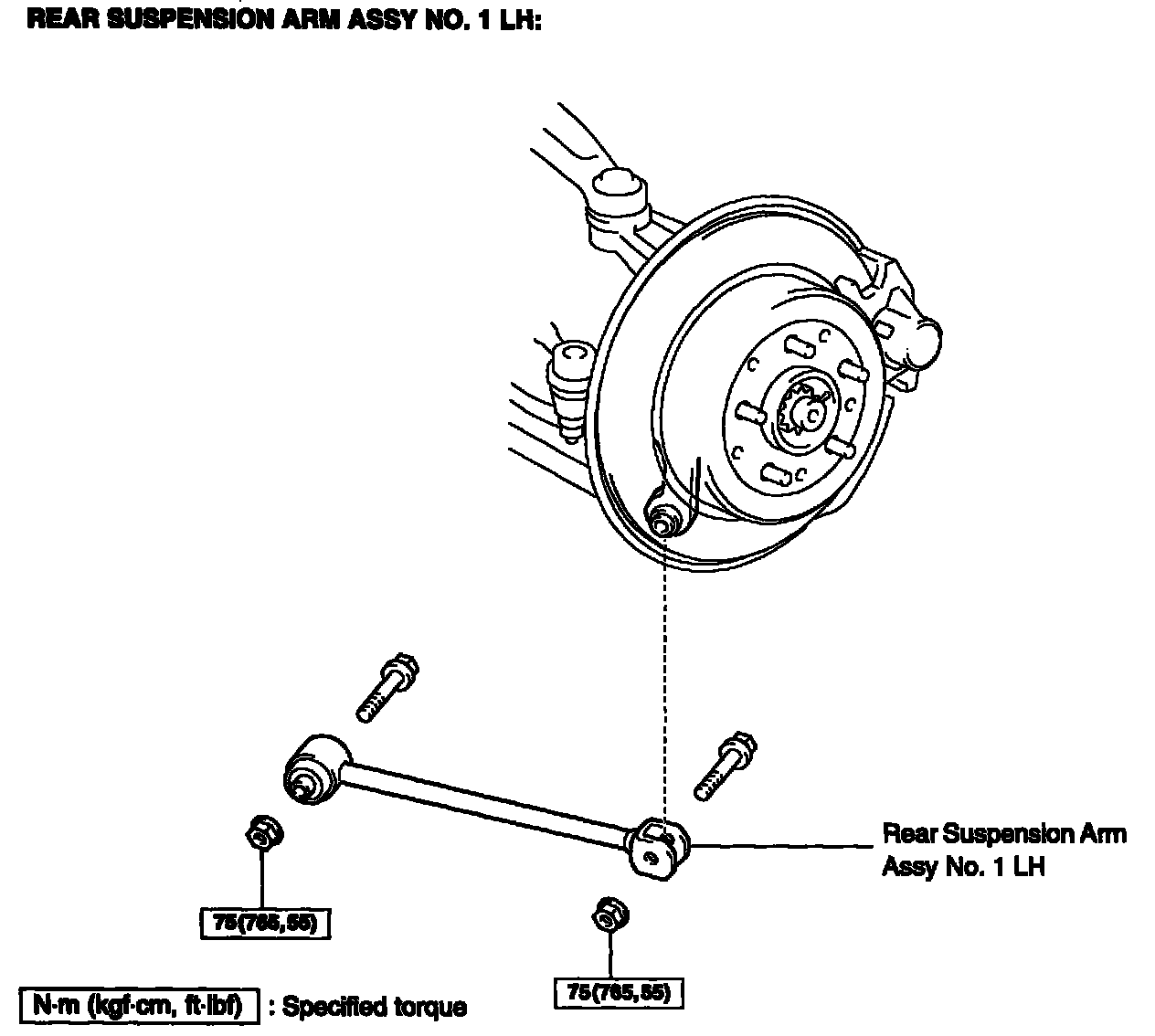

Rear Suspension Arm ASSY No.1 LH

REPLACEMENT

HINT:
^ Replace the RH side by the same procedures with LH side.

1. REMOVE WHEEL HUB ORNAMENT SUB-ASSY
a. Remove the 10 bolts and wheel hub ornament sub-assy.
2. REMOVE REAR WHEEL
a. Remove the 5 nuts and rear wheel.





3. REMOVE REAR SUSPENSION ARM ASSY NO.1 LH

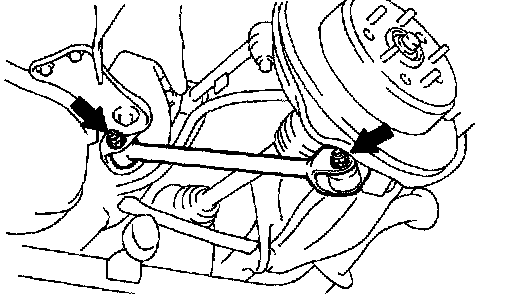

a. Remove the 2 bolts, nuts and rear suspension arm assy No. 1 LH.
4. INSTALL REAR SUSPENSION ARM ASSY NO.1 LH
a. Install the rear suspension arm assy No. 1 LH with the 2 bolts and nuts.
Torque: 75 Nm (765 kgf-cm, 55 ft. lbs.)

HINT: After stabilizing the suspension, torque the nuts.

5. INSTALL REAR WHEEL
a. Install the front wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
6. INSTALL WHEEL HUB ORNAMENT SUB-ASSY
a. Install the wheel hub ornament sub-assy with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
