Tilt and Telescopic Manual Switch Circuit

TILT AND TELESCOPIC MANUAL SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The signal occurred by operating the manual switch (turn signal switch) are sent to the multiplex tilt & telescopic ECU through the light control communication bus.

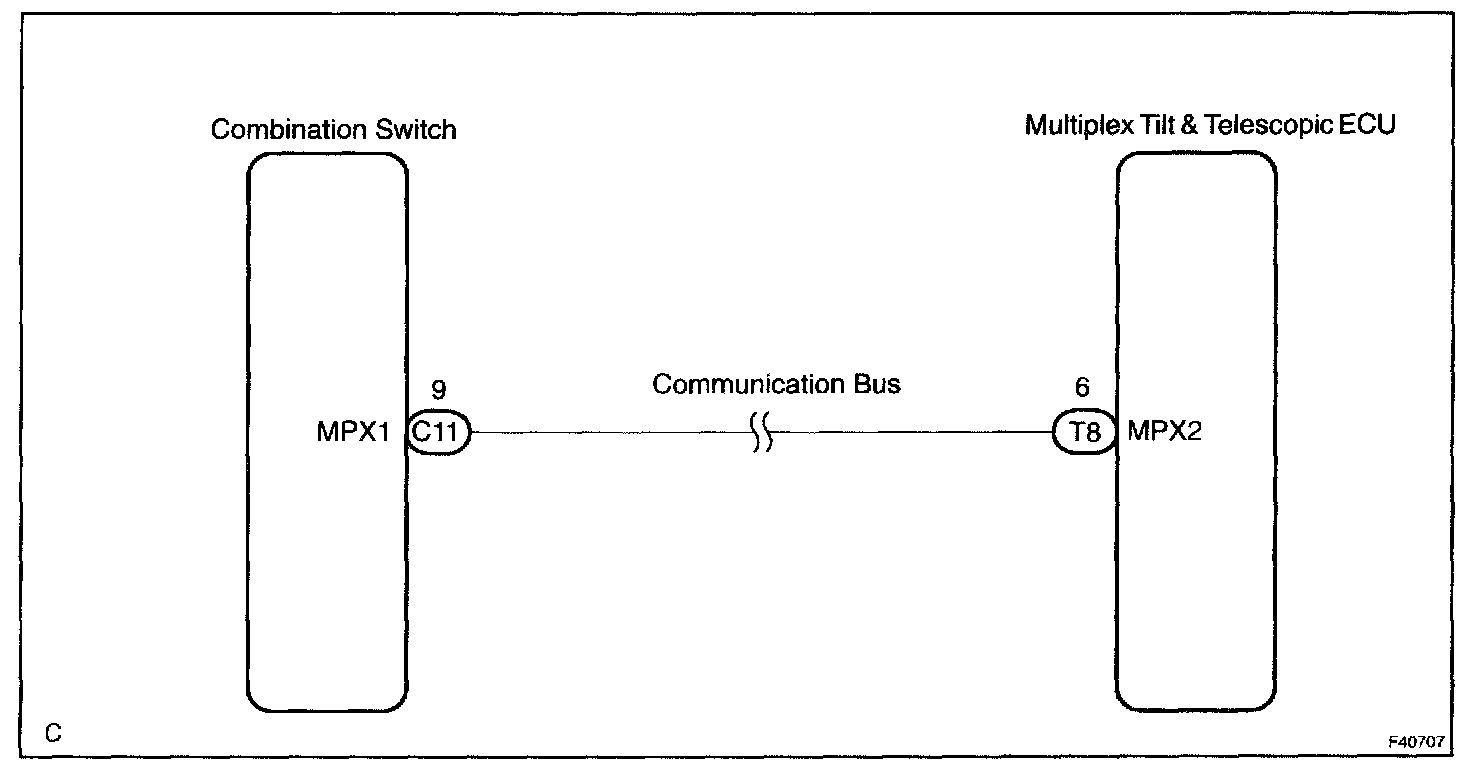

Wiring Diagram:

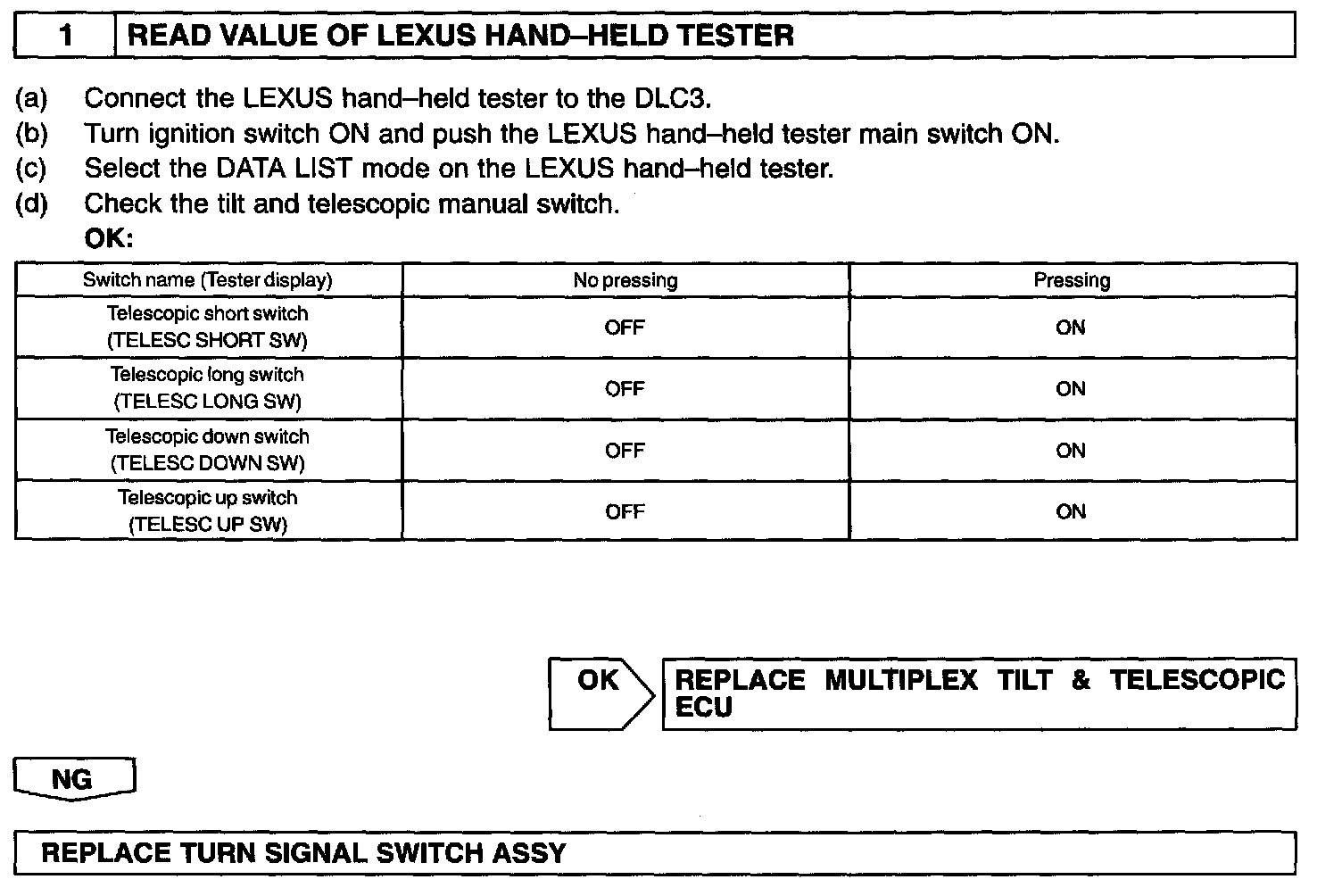

Step 1:




INSPECTION PROCEDURE
