Actuator Power Source Circuit

ACTUATOR POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This is the power source for the motors.

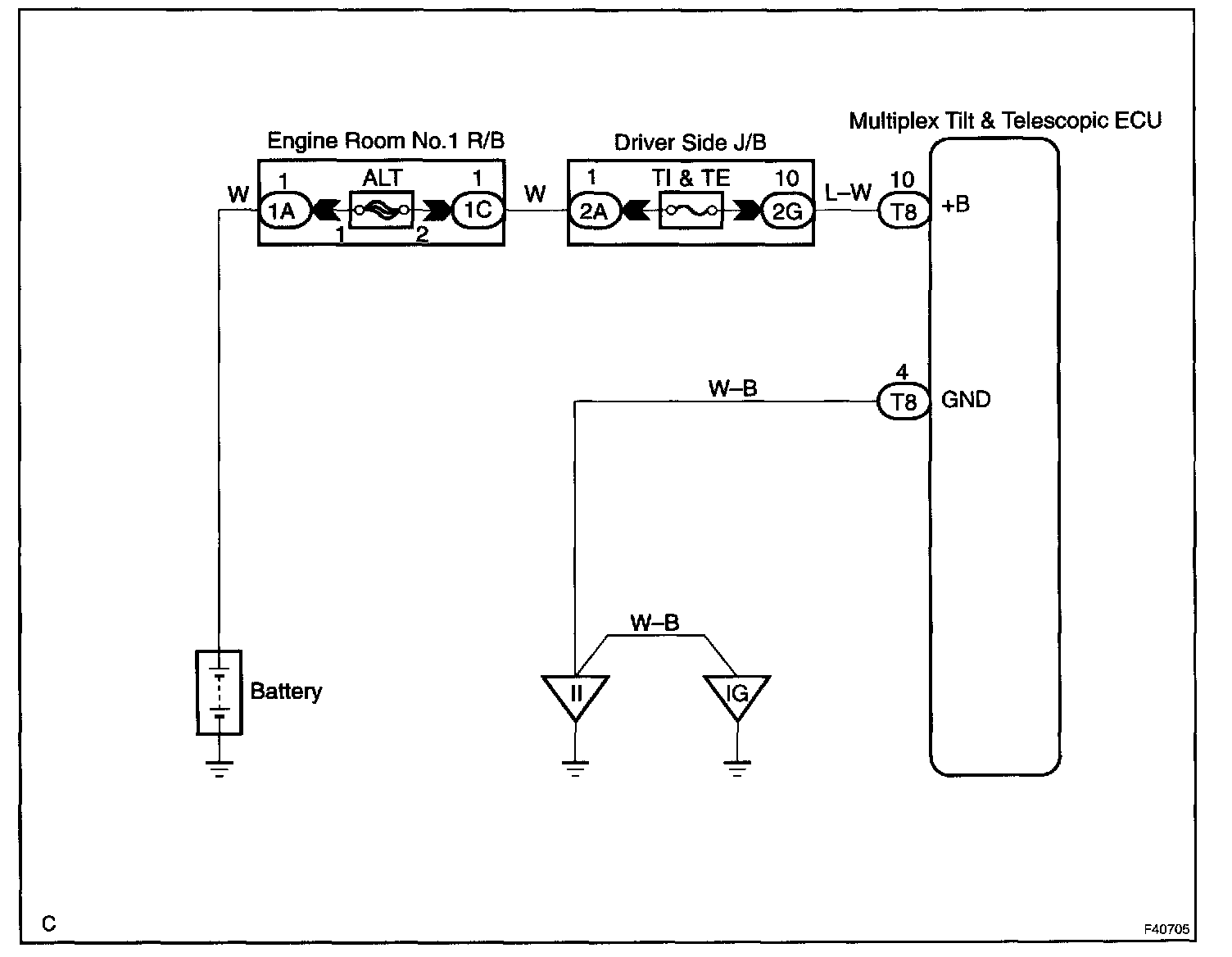

Wiring Diagram:

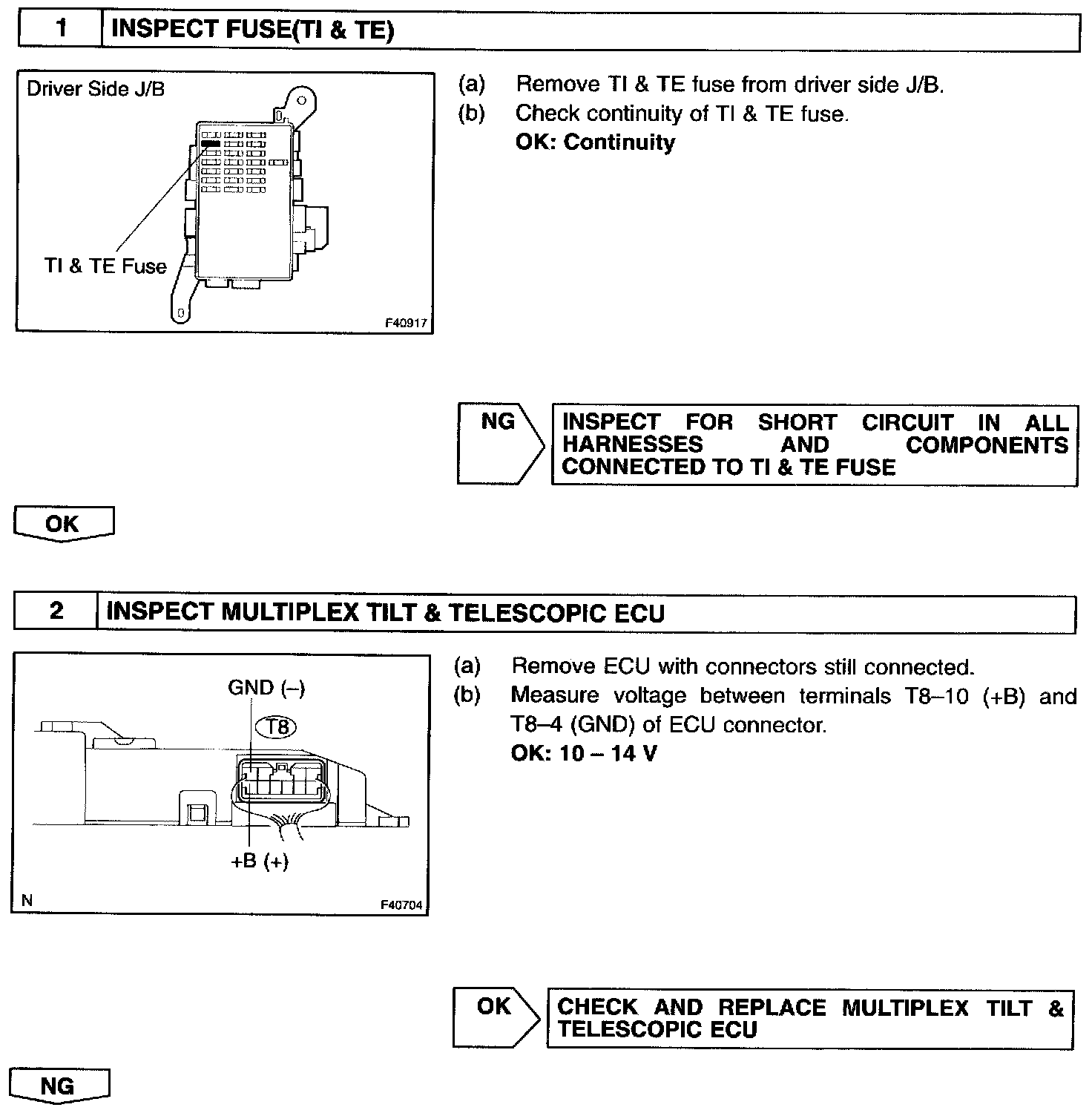

Step 1 - 2:

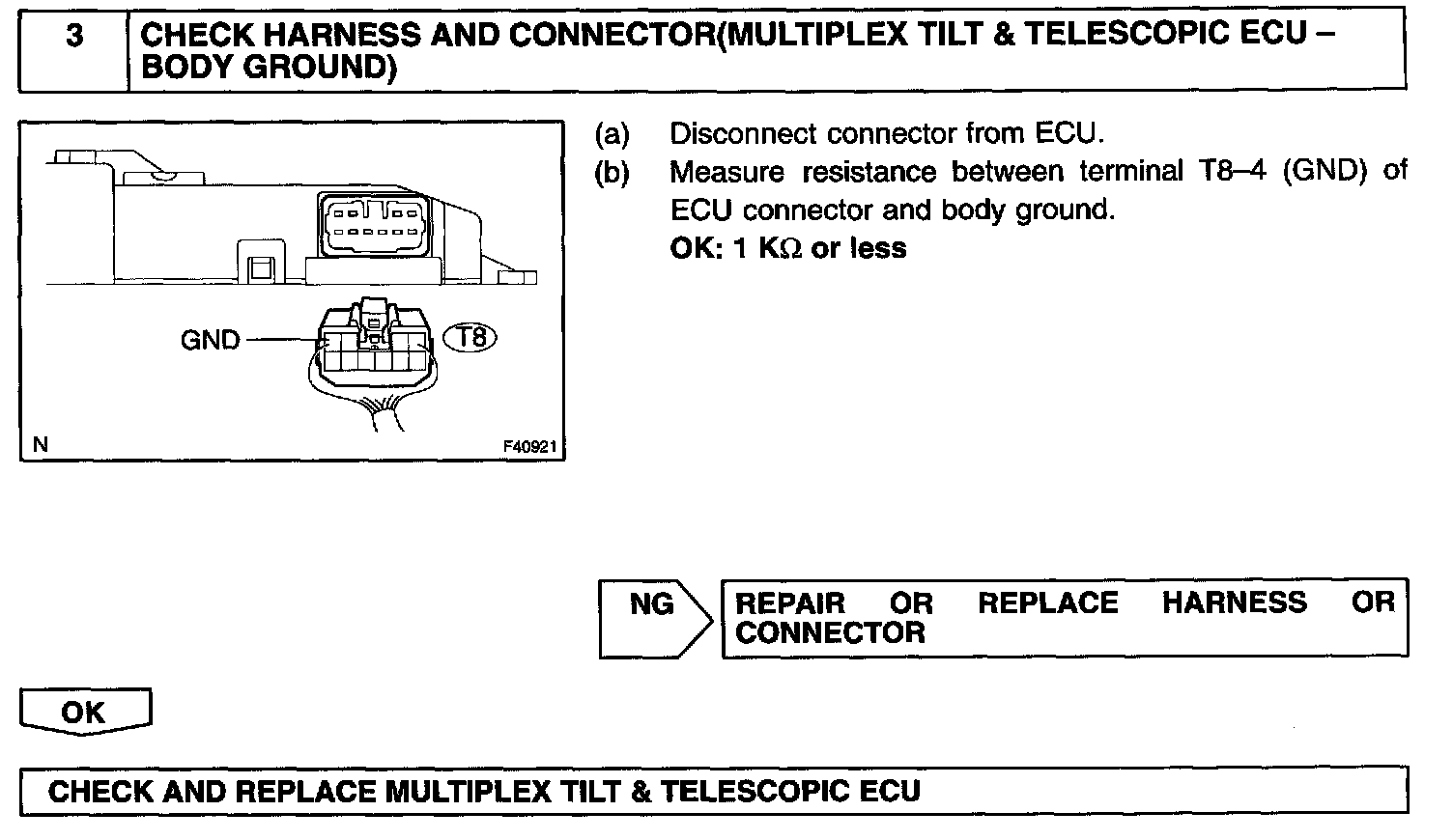

Step 3:




INSPECTION PROCEDURE
