Turn Signal Switch: Service and Repair

Lighting Part 1:

Lighting Part 2:

Lighting Part 3:

TURN SIGNAL SWITCH ASSY

REPLACEMENT

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1
3. REMOVE STEERING COLUMN COVER LWR
4. REMOVE STEERING COLUMN COVER UPR

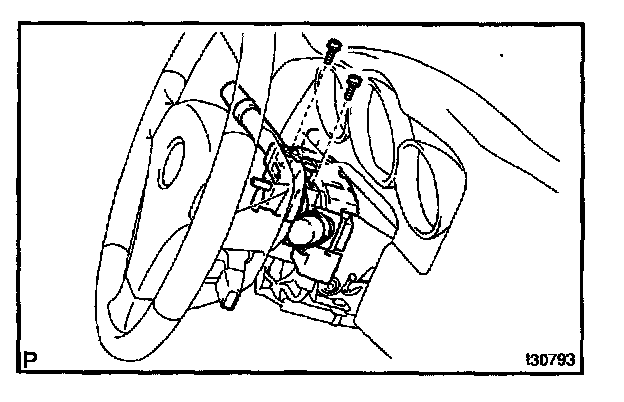

5. REMOVE TURN SIGNAL SWITCH ASSY
a. Disconnect the connector.
b. Remove the 2 screws.
c. Remove the turn signal switch assy.
