SRS Warning Light Circuit Malfunction (Does Not Light Up)

CIRCUIT DESCRIPTION
The SRS warning light is located on the combination meter.

When the SRS is normal, the SRS warning light comes on for approx. 6 seconds after the ignition switch is turned from the LOCK position to ON position, and then goes off automatically.

If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of the abnormality. When terminal Tc and CG of the DLC3 are connected, the DTC is displayed by blinking the SRS warning light.

The signal to make the SRS warning light to comes on is transmitted from the airbag sensor assy center to the combination meter through multiplex communication system.

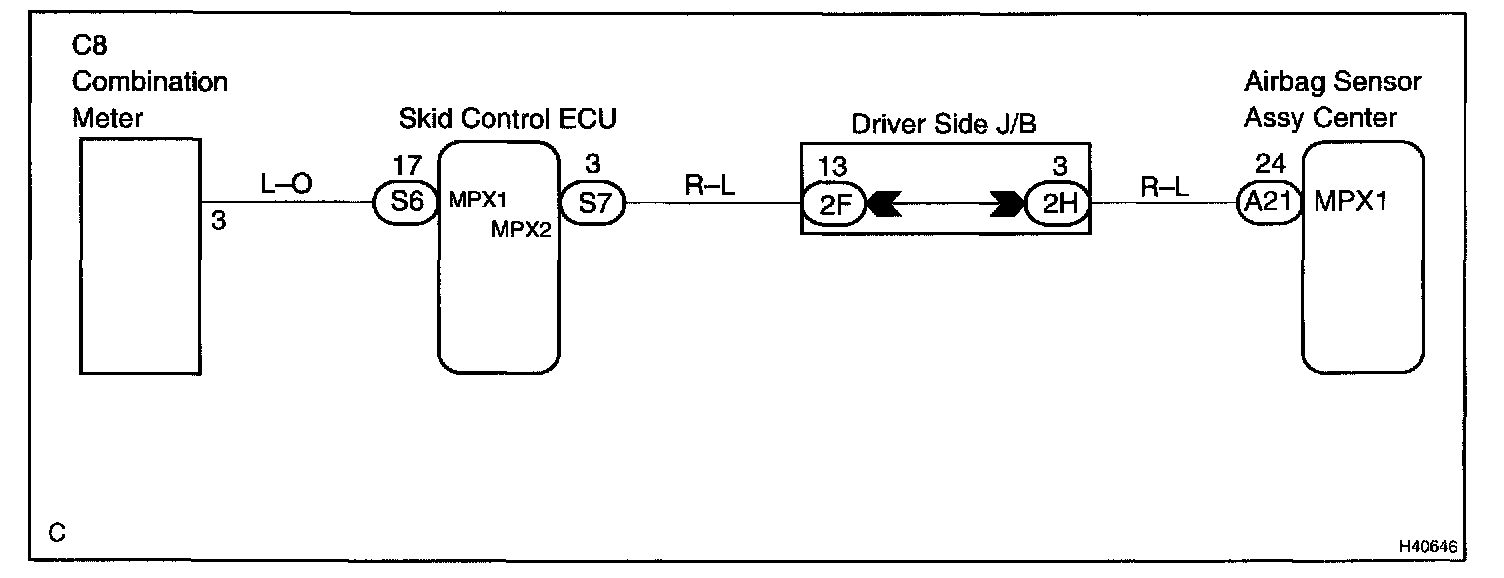

Wiring Diagram:

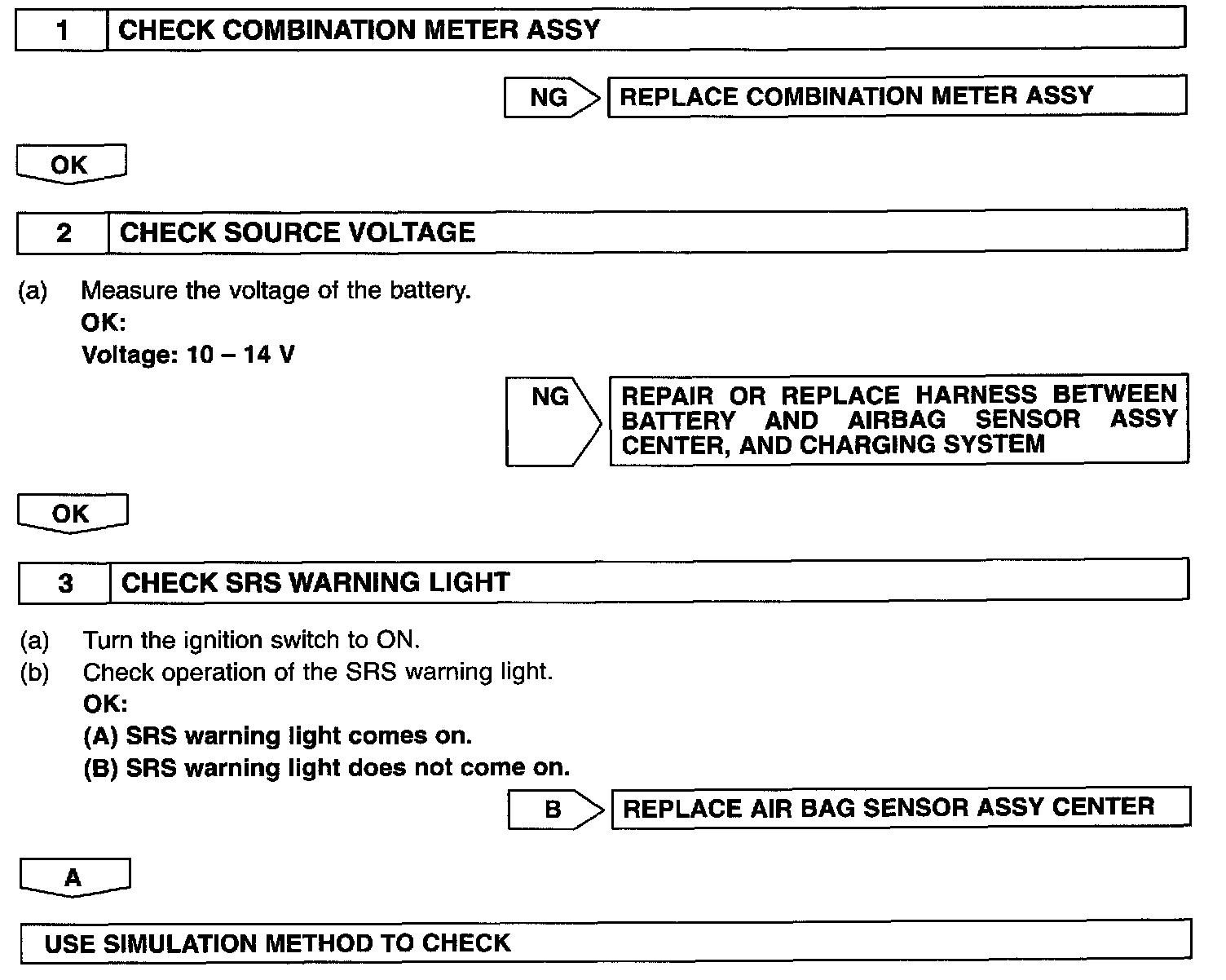

Step 1 - 3:

INSPECTION PROCEDURE
