Home >> Lexus >> 2003 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

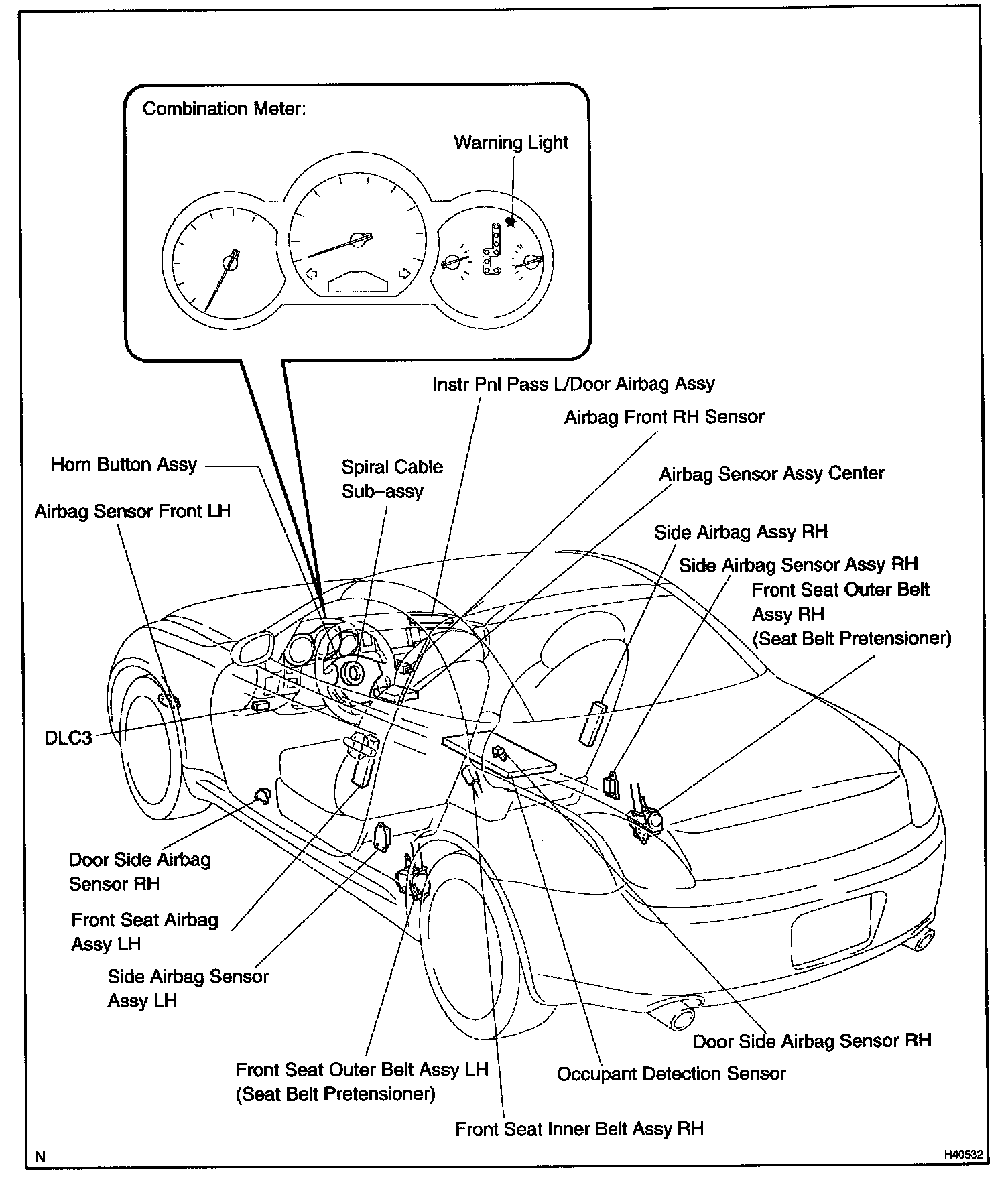

Supplemental Restraint System:

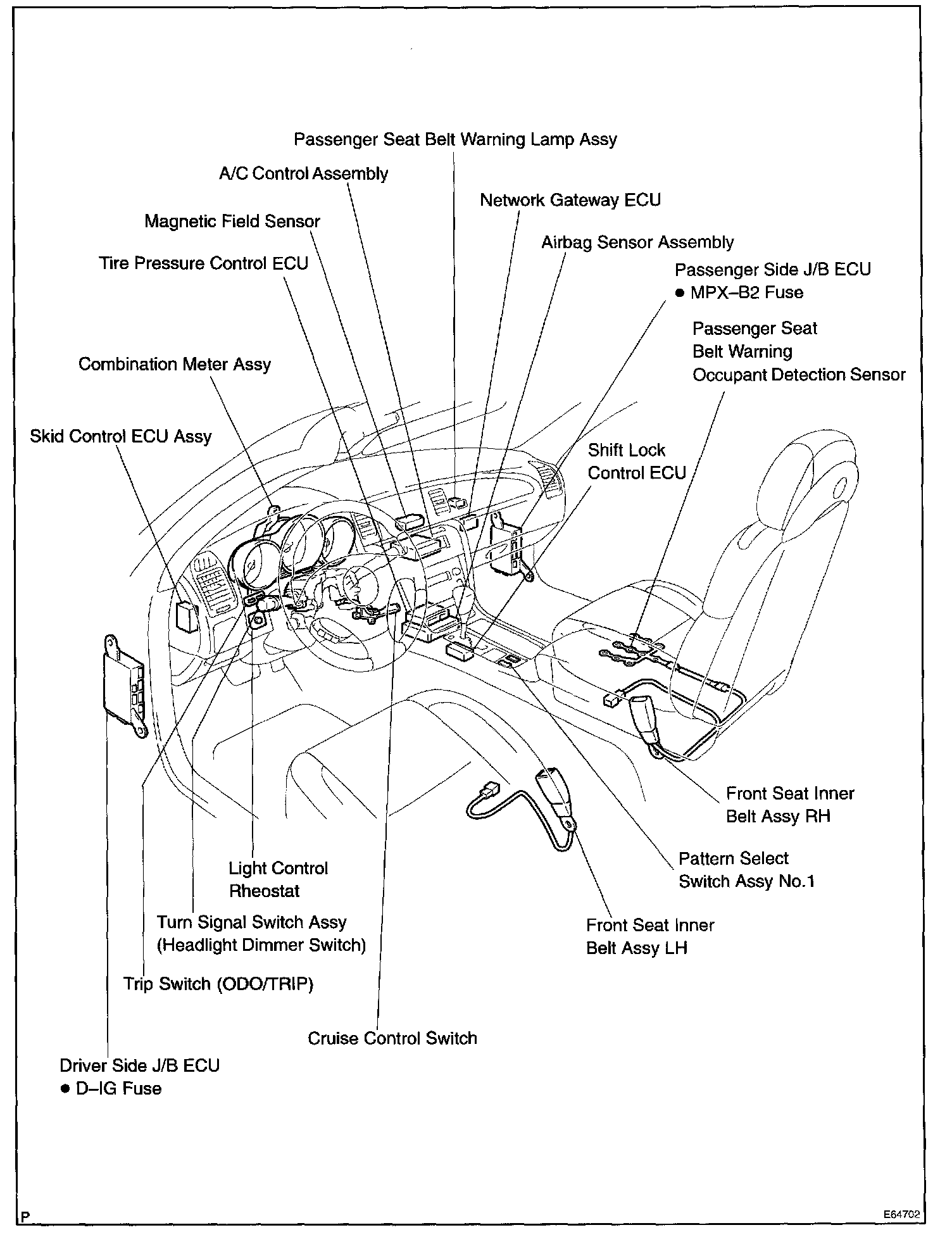

Combination Meter Part 2:



Bu - Si:
