Multiplex Communication System (Communication Bus)

MULTIPLEX COMMUNICATION SYSTEM INCLUDES FOLLOWING SYSTEMS

- AUTOMATIC LIGHT CONTROL
- BACK-UP LIGHT
- CELLULAR MOBILE TELEPHONE (w/ LEXUS LINK SYSTEM) AND/OR LEXUS LINK SYSTEM (MAYDAY SYSTEM)
- ELECTRIC TENSION REDUCER
- FRONT FOG LIGHT
- FUEL LID OPENER
- GARAGE DOOR OPENER
- HEADLIGHT
- HORN
- ILLUMINATION
- INTERIOR LIGHT
- KEY REMINDER AND SEAT BELT WARNING
- LIGHT AUTO TURN OFF
- LUGGAGE COMPARTMENT DOOR OPENER
- MIRROR HEATER
- POWER WINDOW
- REAR WINDOW DEFOGGER
- REMOTE CONTROL MIRROR
- STOP LIGHT
- TAILLIGHT
- THEFT DETERRENT AND DOOR LOCK CONTROL
- TURN SIGNAL AND HAZARD WARNING LIGHT
- WIPER AND WASHER
- WIRELESS DOOR LOCK CONTROL

Multiplex Communication System (Communication Bus) Part 1:

Multiplex Communication System (Communication Bus) Part 2:

Multiplex Communication System (Communication Bus) Part 3:

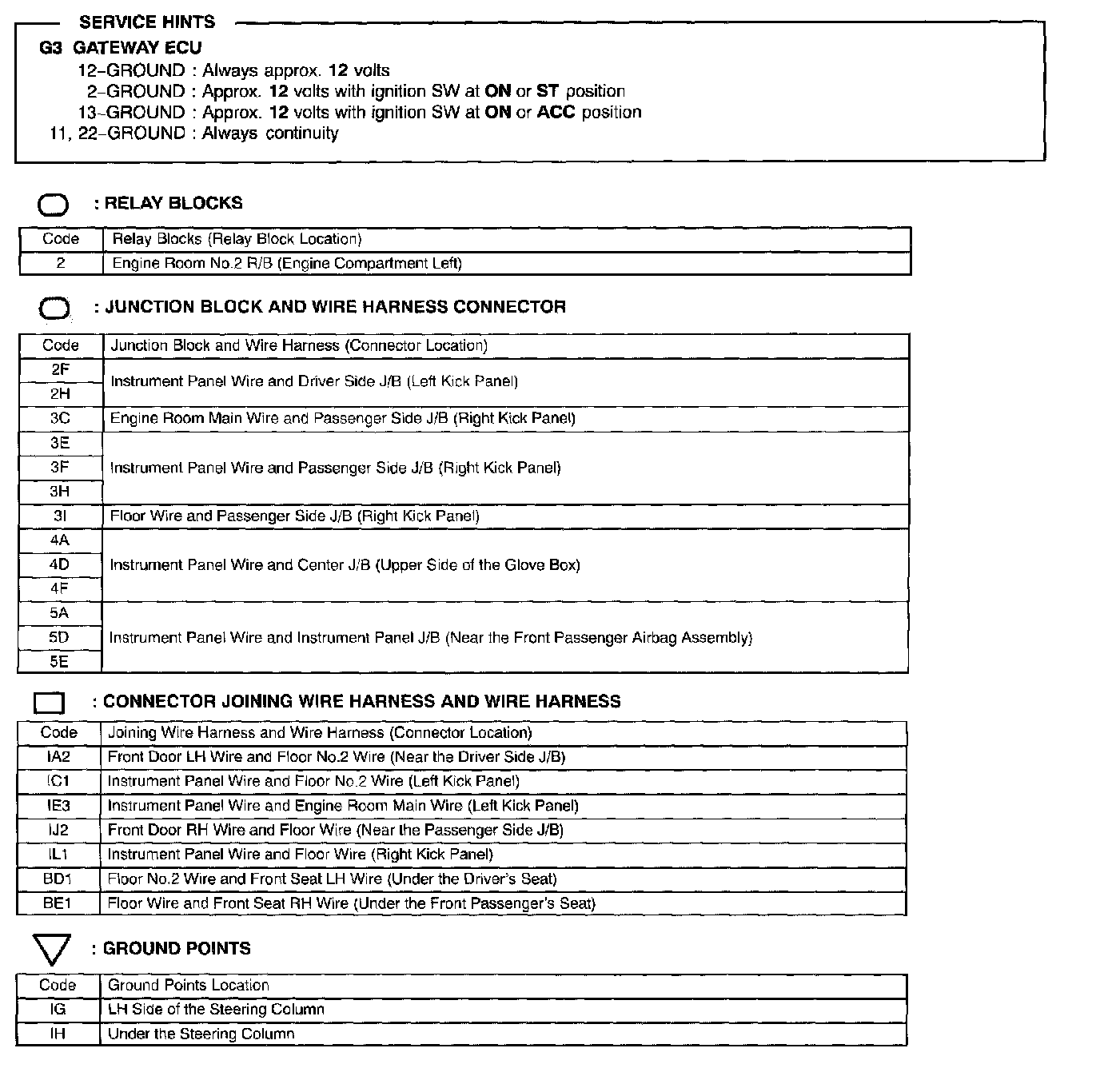

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
