Turn Signal Light Circuit

CIRCUIT DESCRIPTION
Receiving the signal of the turn signal switch from the Driver side J/B ECU, the Driver side J/B ECU makes the turn signal light come on.
Drive Side J/B ECU activates the flasher relay while the theft deterrent system gives the warning and lights the turn signal light and the hazard warning light.

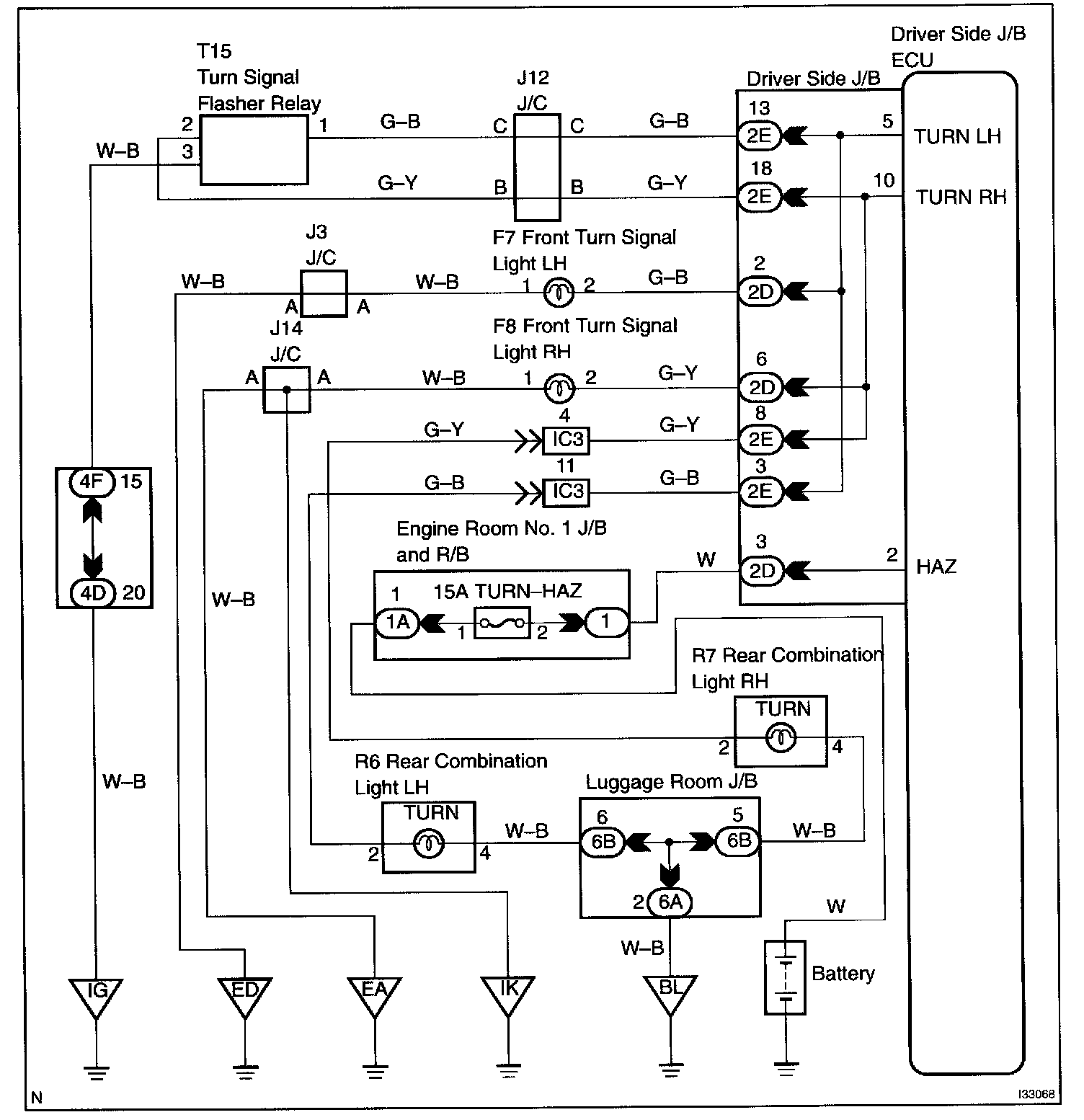

Wiring Diagram:

Step 1 - 3:

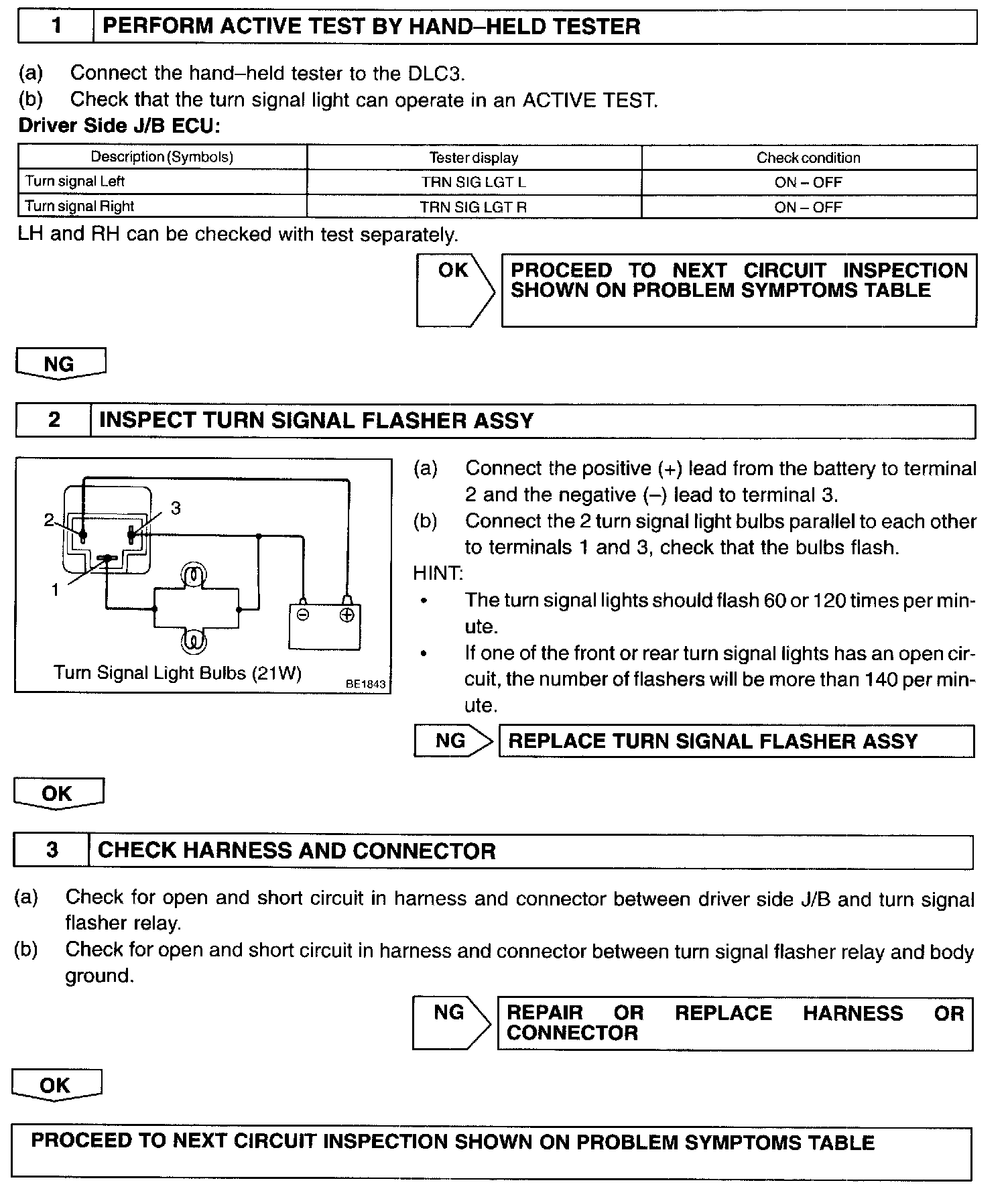

INSPECTION PROCEDURE
