Taillight Circuit
CIRCUIT DESCRIPTIONReceiving the light control switch TAIL signal from either of the luggage room J/B ECU makes the taillight come on.

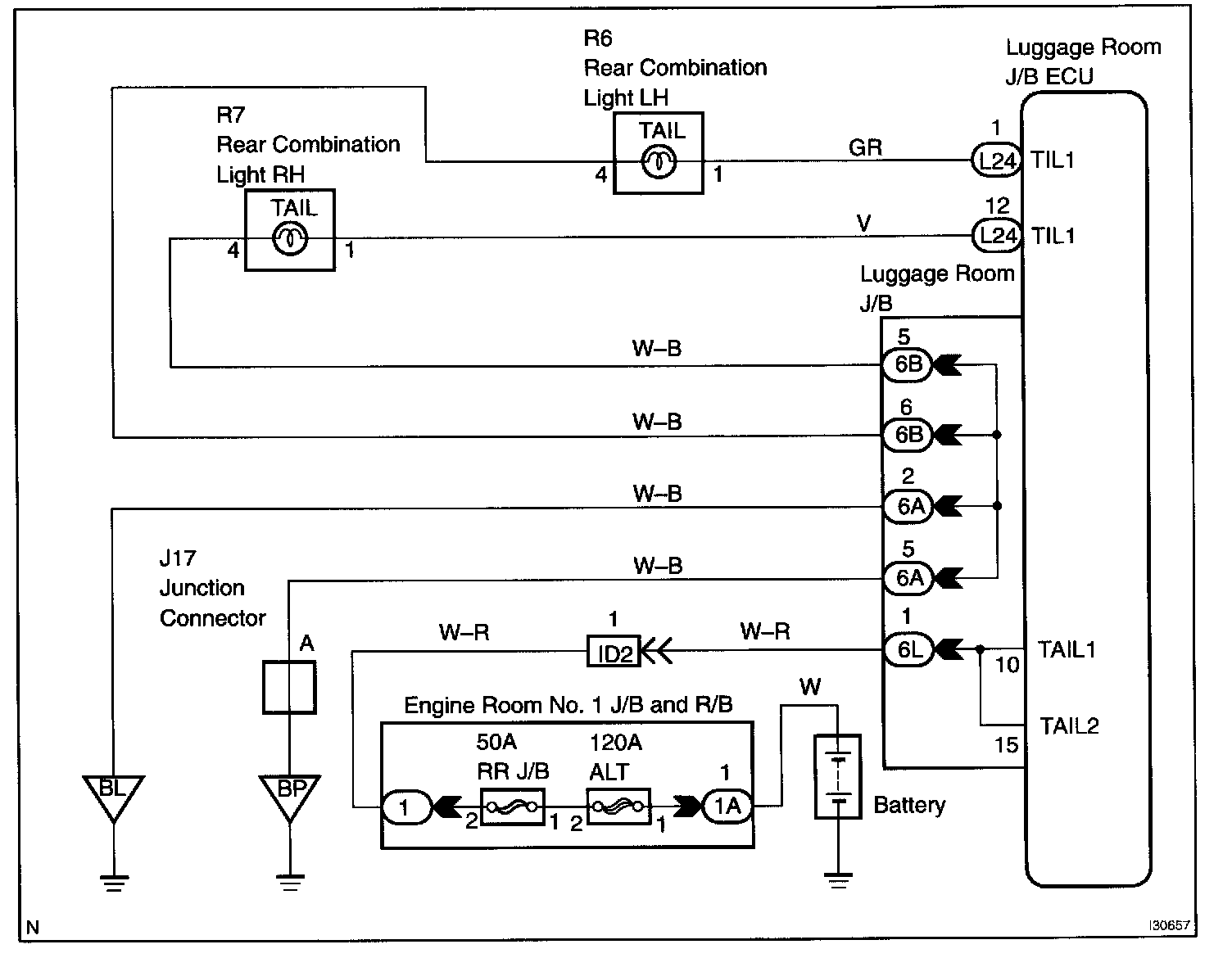

Wiring Diagram:

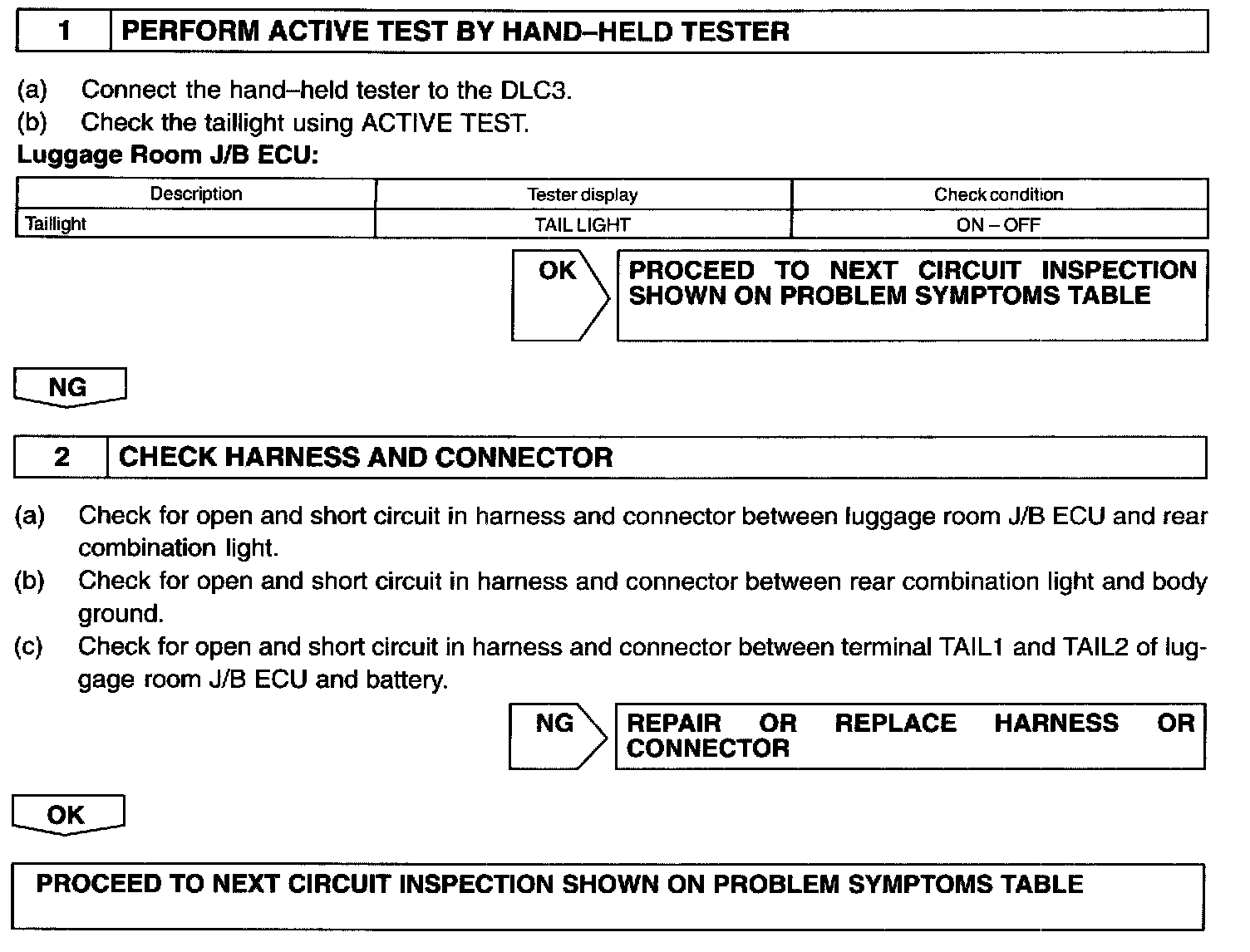

Step 1 - 2:
INSPECTION PROCEDURE
Receiving the light control switch TAIL signal from either of the luggage room J/B ECU makes the taillight come on.
INSPECTION PROCEDURE
