Rear Side Marker Light Circuit
Rear Side Marker Light Circuit
Luggage room J/B ECU receives taillight switch information from the
combination switch
, and lights the side marker light.

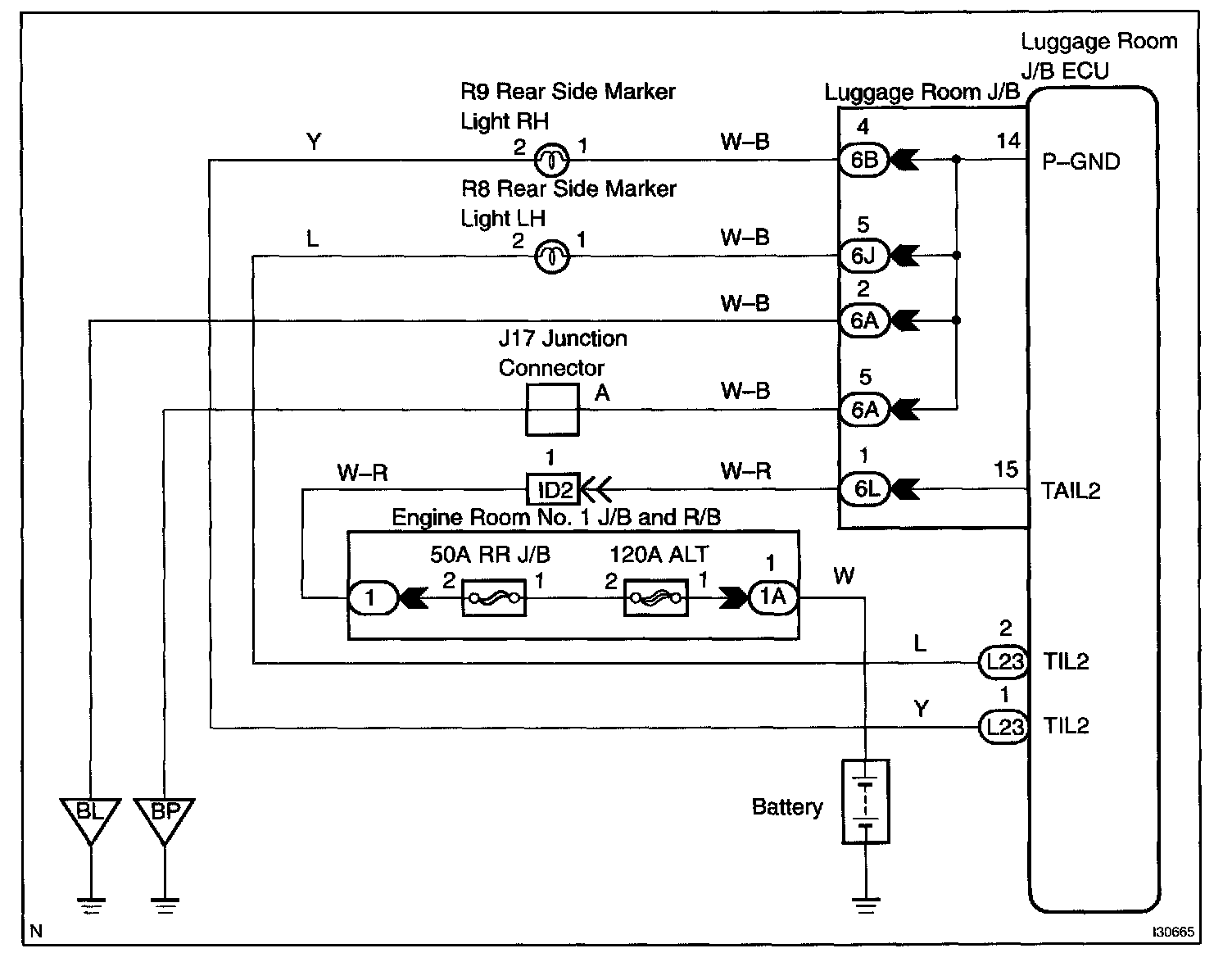

Wiring Diagram:
Step 1:

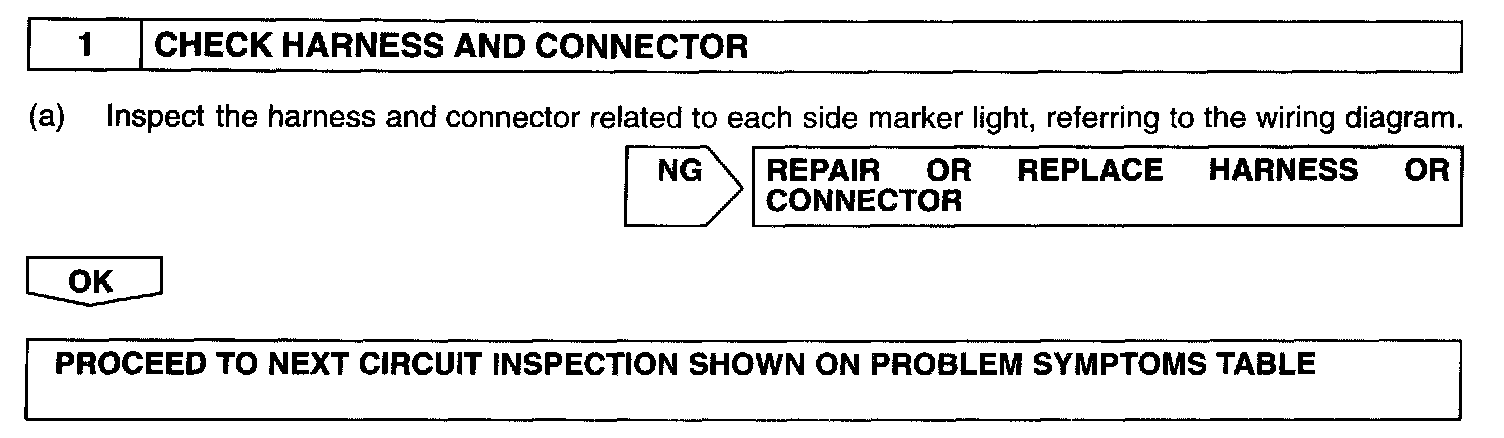

INSPECTION PROCEDURE
