Luggage Room Light Circuit
CIRCUIT DESCRIPTIONThe luggage door courtesy switch goes on when the luggage door is opened and goes off when the luggage door is closed.

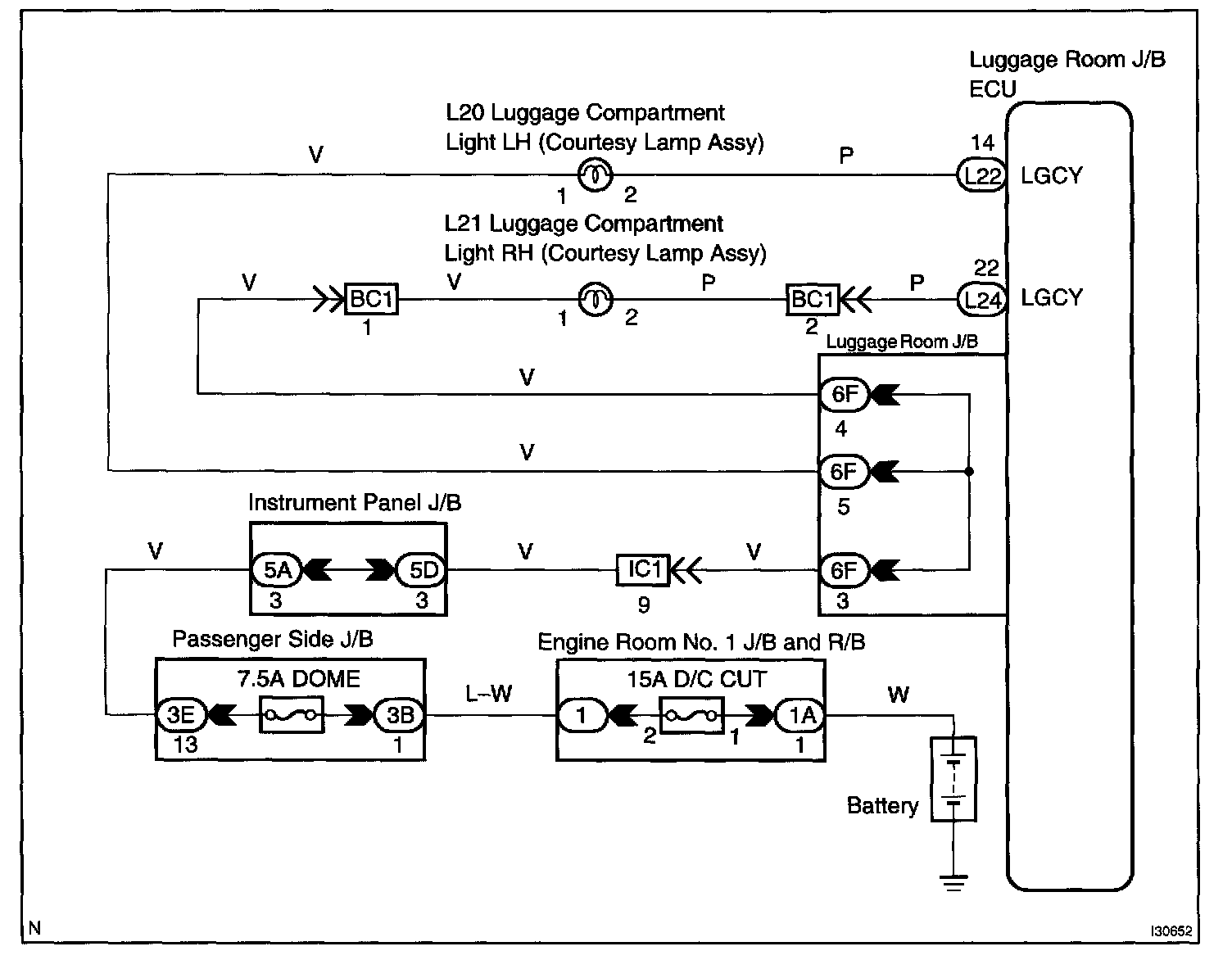

Wiring Diagram:

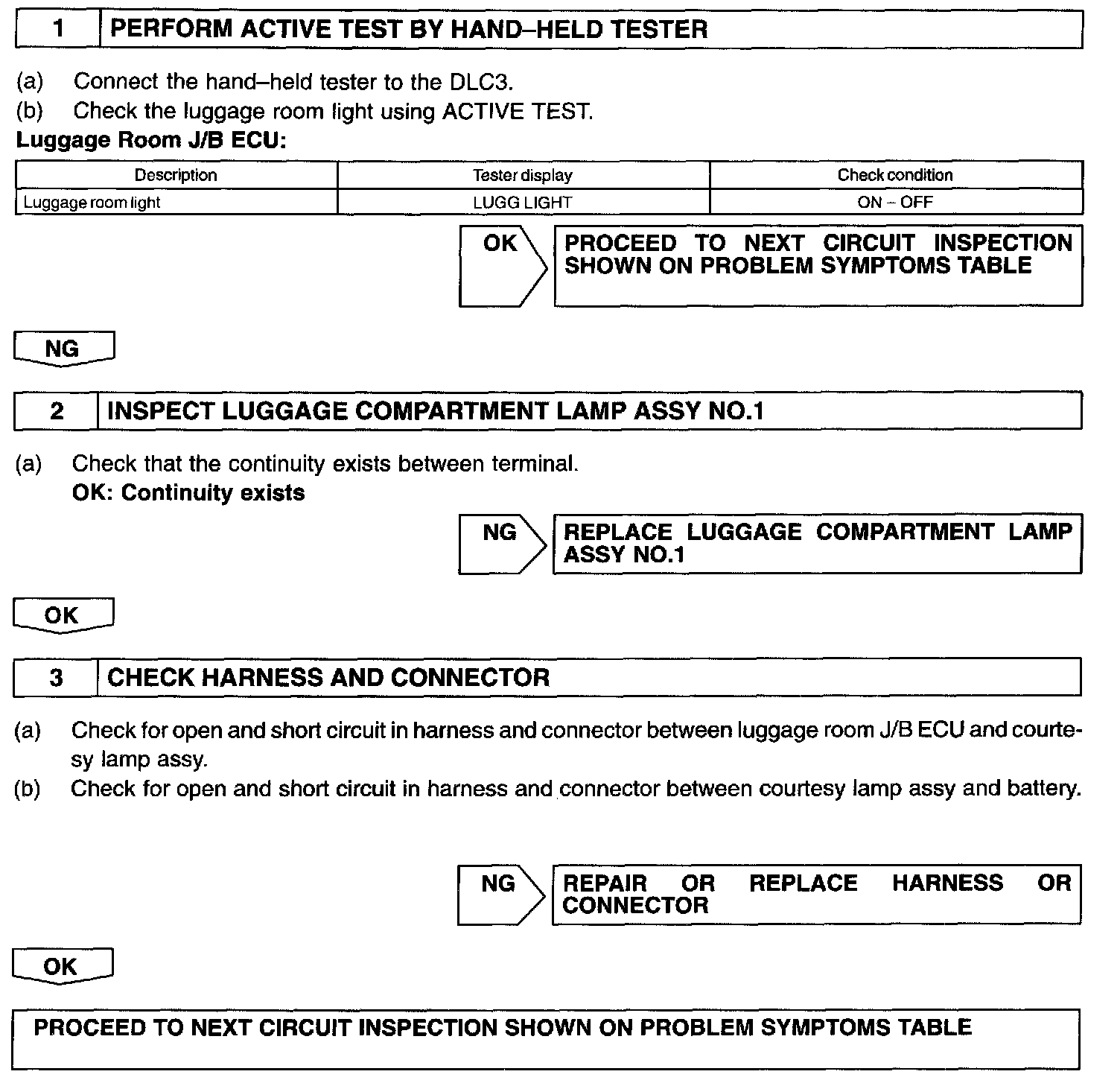

Step 1 - 3:
INSPECTION PROCEDURE
The luggage door courtesy switch goes on when the luggage door is opened and goes off when the luggage door is closed.
INSPECTION PROCEDURE
