Licence Plate Light Circuit

CIRCUIT DESCRIPTION
Receiving the light control switch TAIL signal from the luggage room J/B ECU makes the licence light come on.


Wiring Diagram:

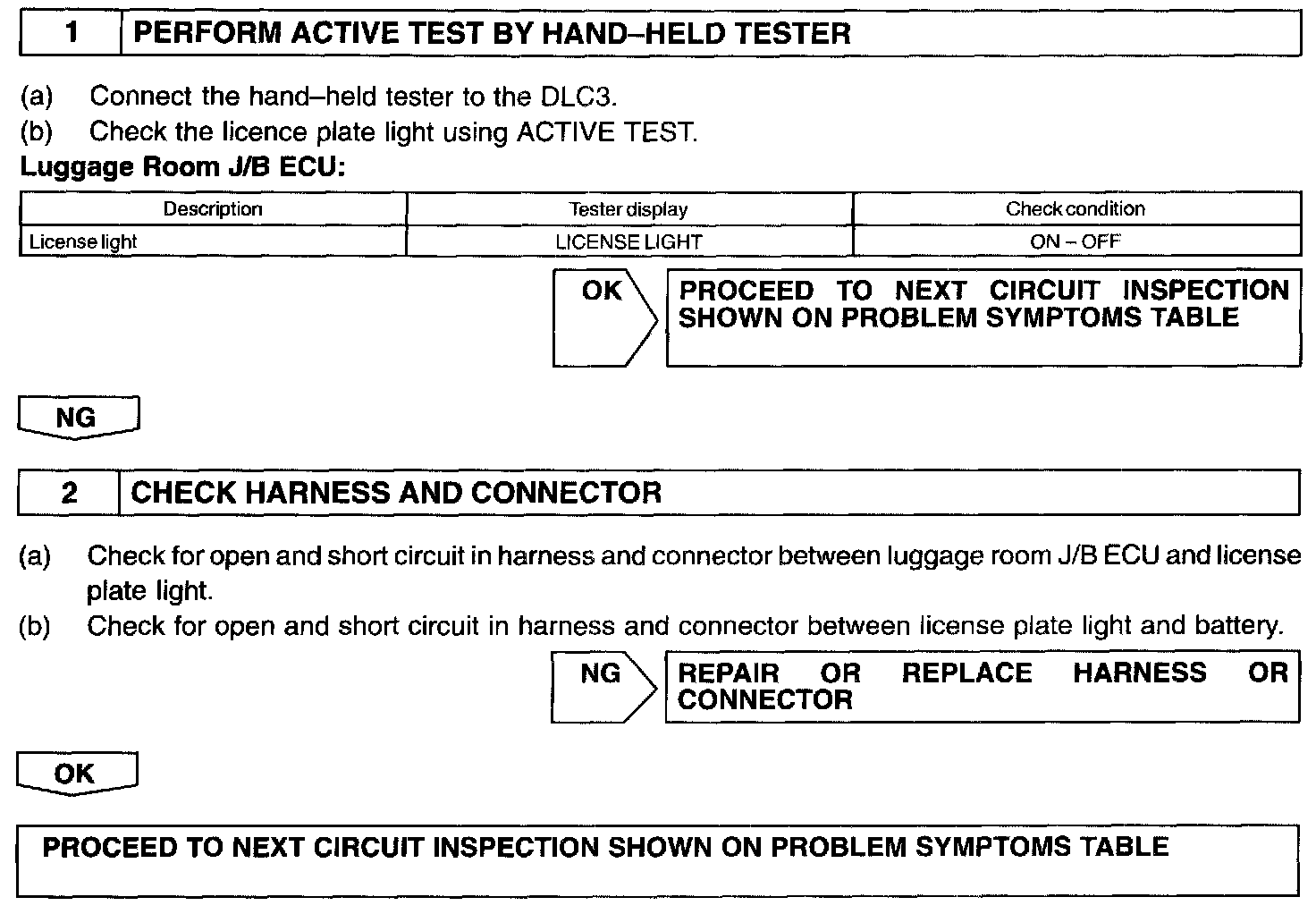

Step 1 - 2:




INSPECTION PROCEDURE
