Headlight Relay Circuit

CIRCUIT DESCRIPTION
Headlight relay becomes "ON" by operating the headlight switch.

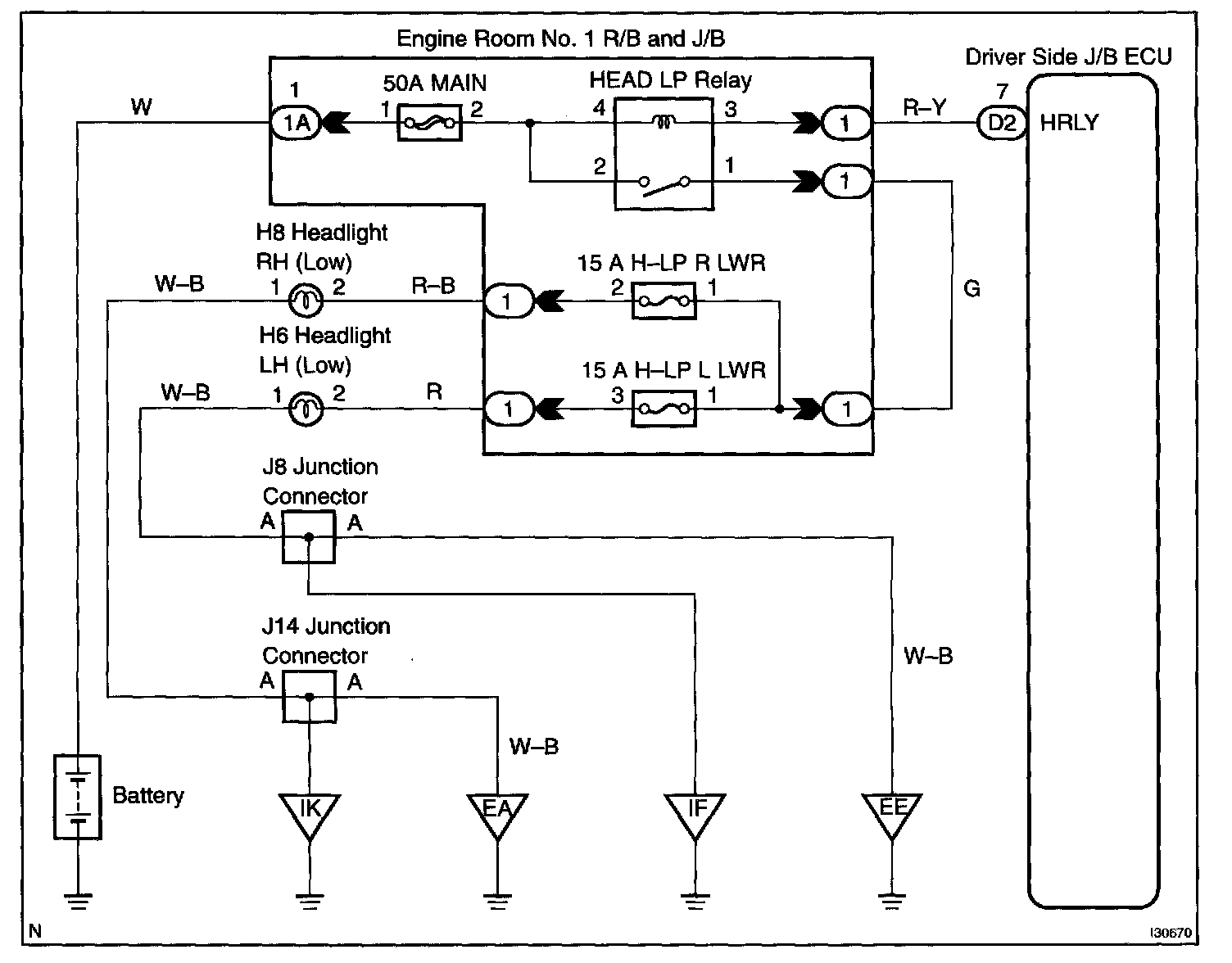

Wiring Diagram:

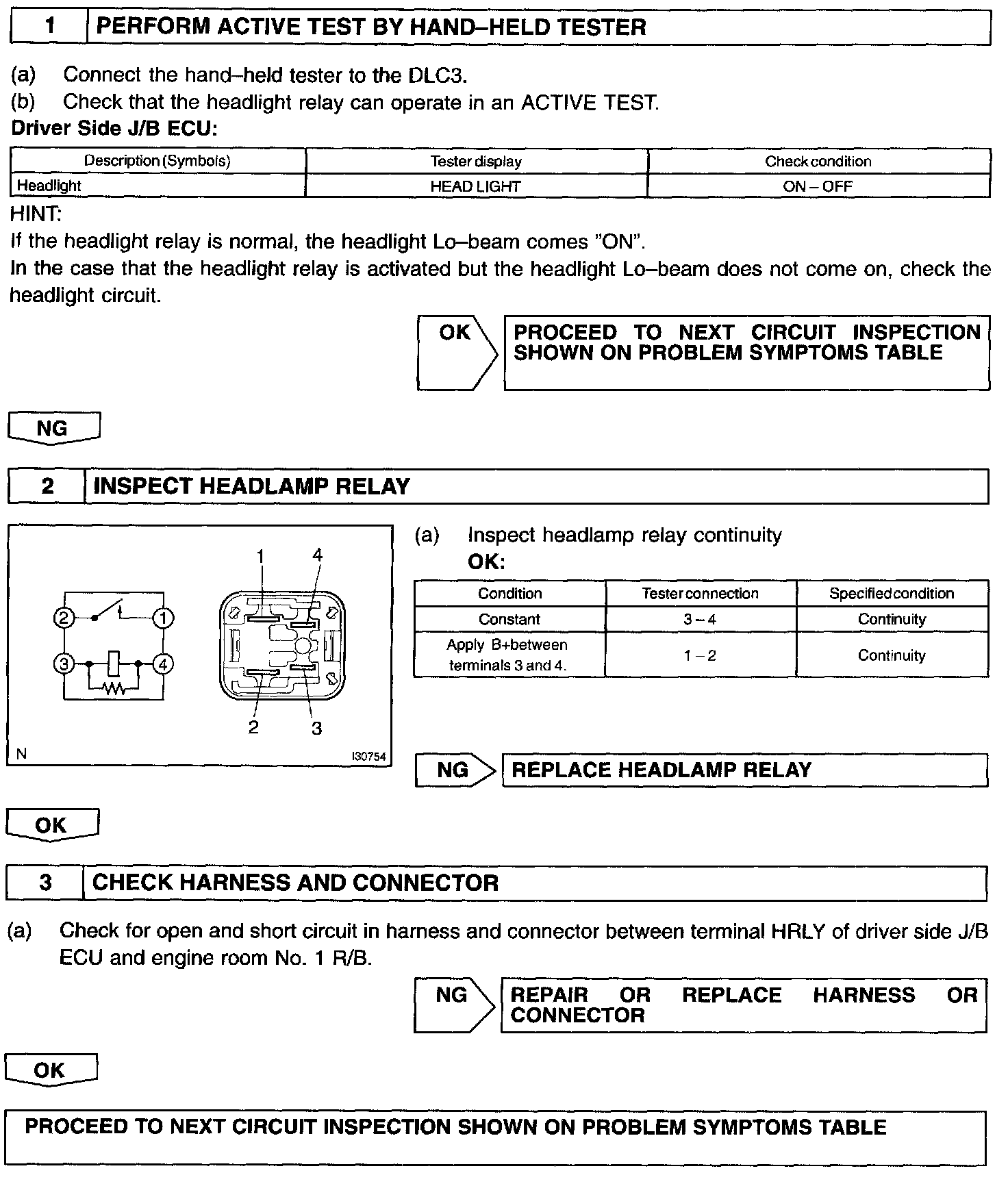

Step 1 - 3:




INSPECTION PROCEDURE
