Headlight Circuit

CIRCUIT DESCRIPTION
Front lamp ECU receives headlight HI switch information from the combination switch, and lights the headlight.

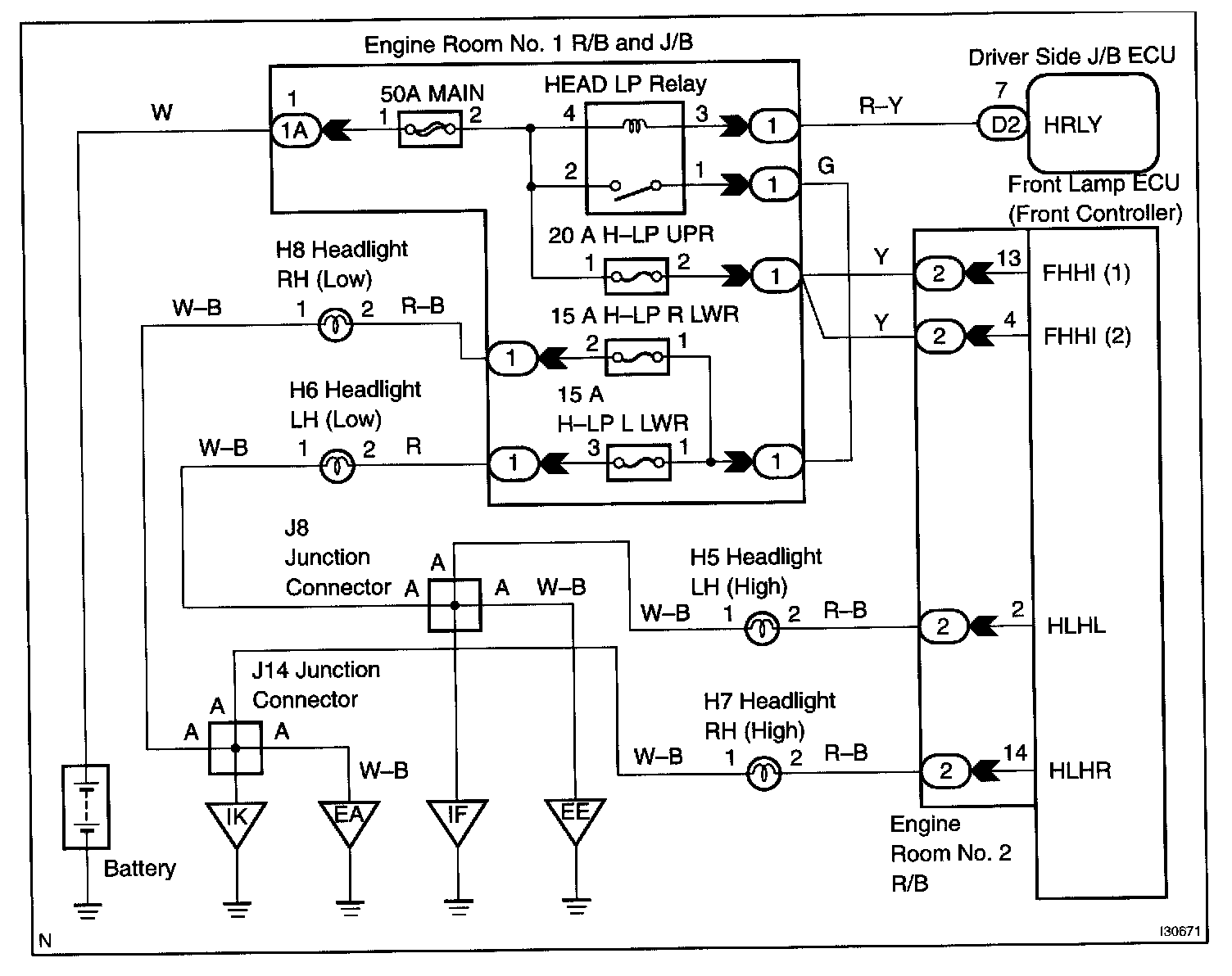

Wiring Diagram:






Step 1 - 3:




INSPECTION PROCEDURE
