Hazard Warning Switch Circuit

CIRCUIT DESCRIPTION
The hazard warning SW sends a signal to the Driver Side J/B ECU.

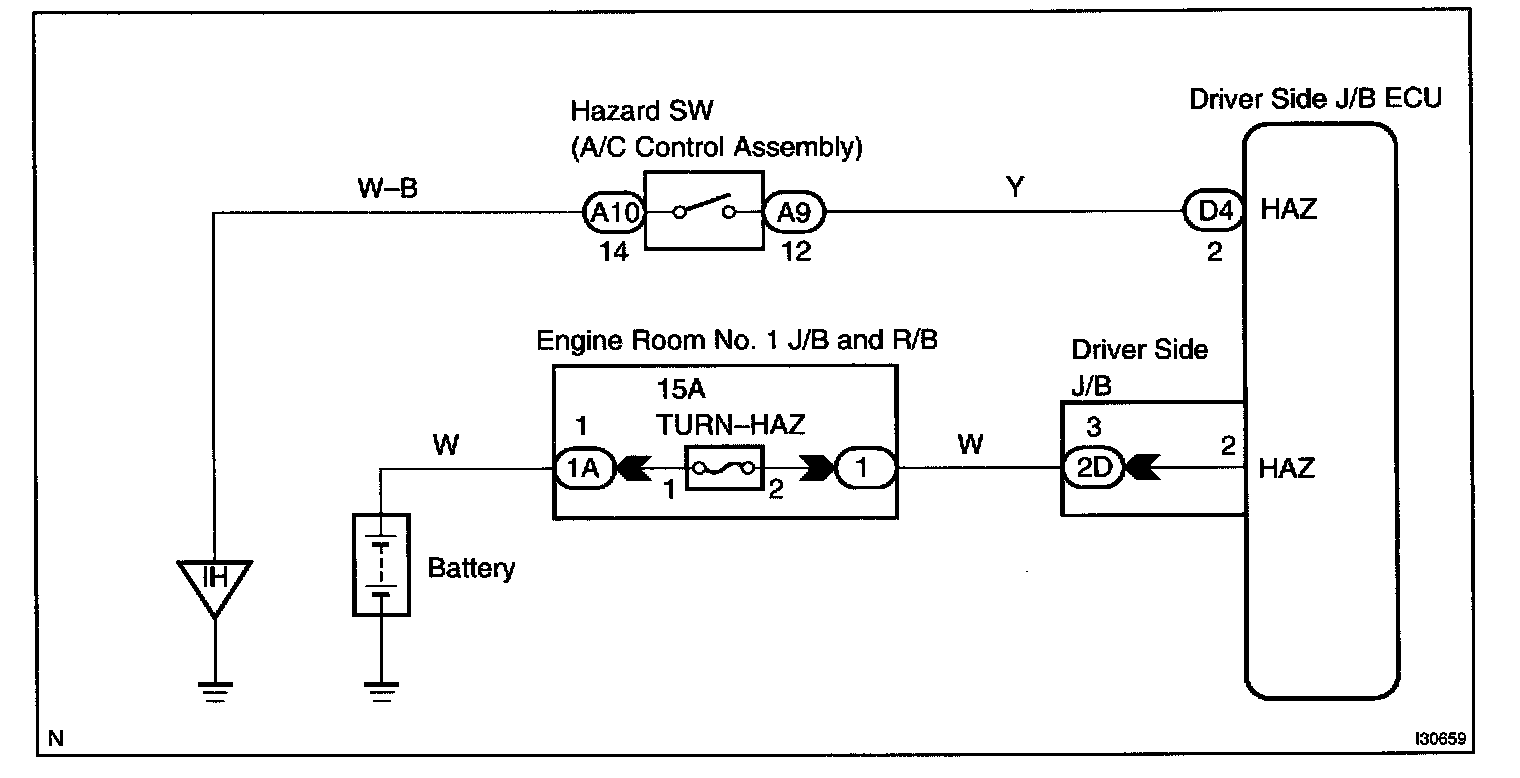

Wiring Diagram:

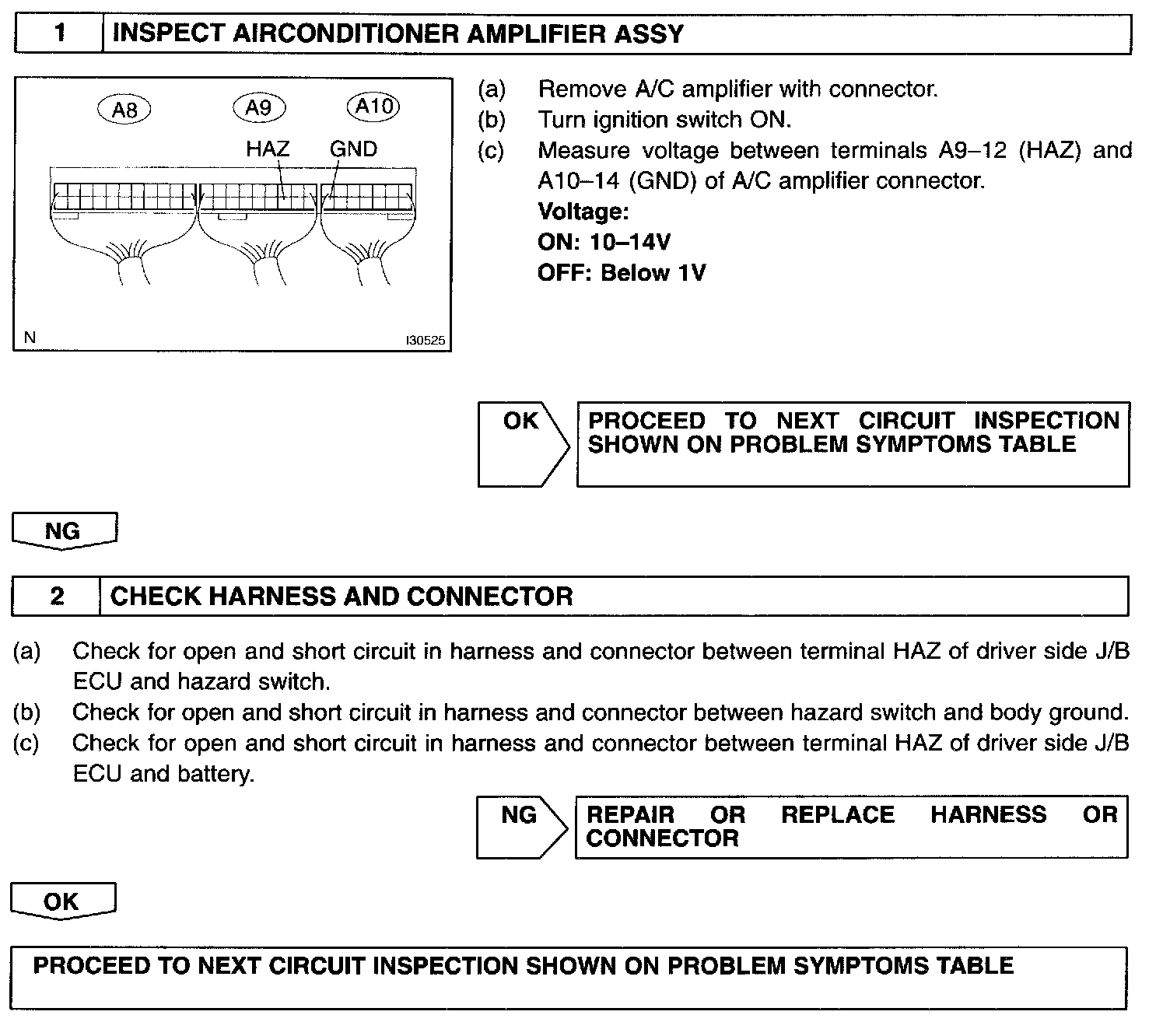

Step 1 - 2:




INSPECTION PROCEDURE
