Combination Switch Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the combination switch.


Wiring Diagram:

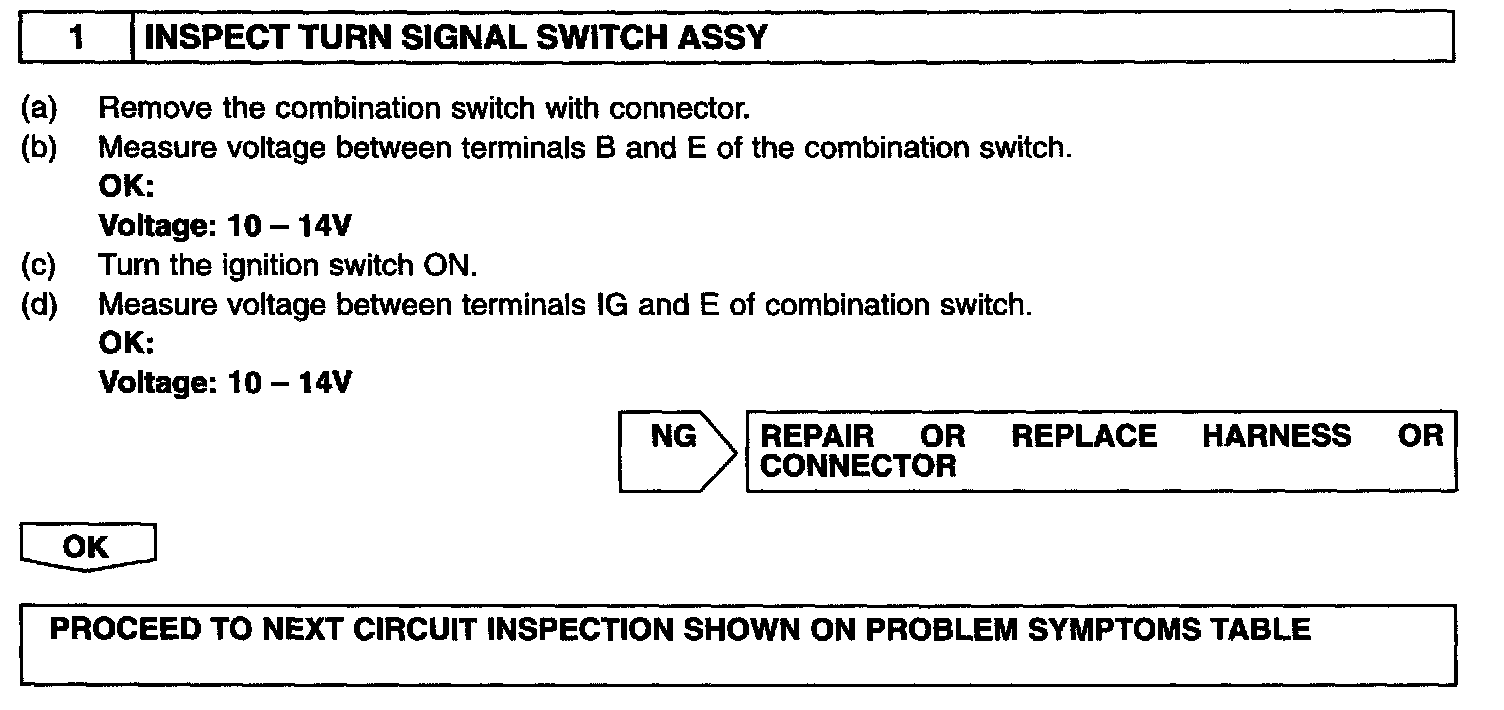

Step 1:




INSPECTION PROCEDURE
