Clearance Light Circuit
CIRCUIT DESCRIPTIONFront lamp ECU receives turn signal switch information from the combination switch, and lights the parking light.

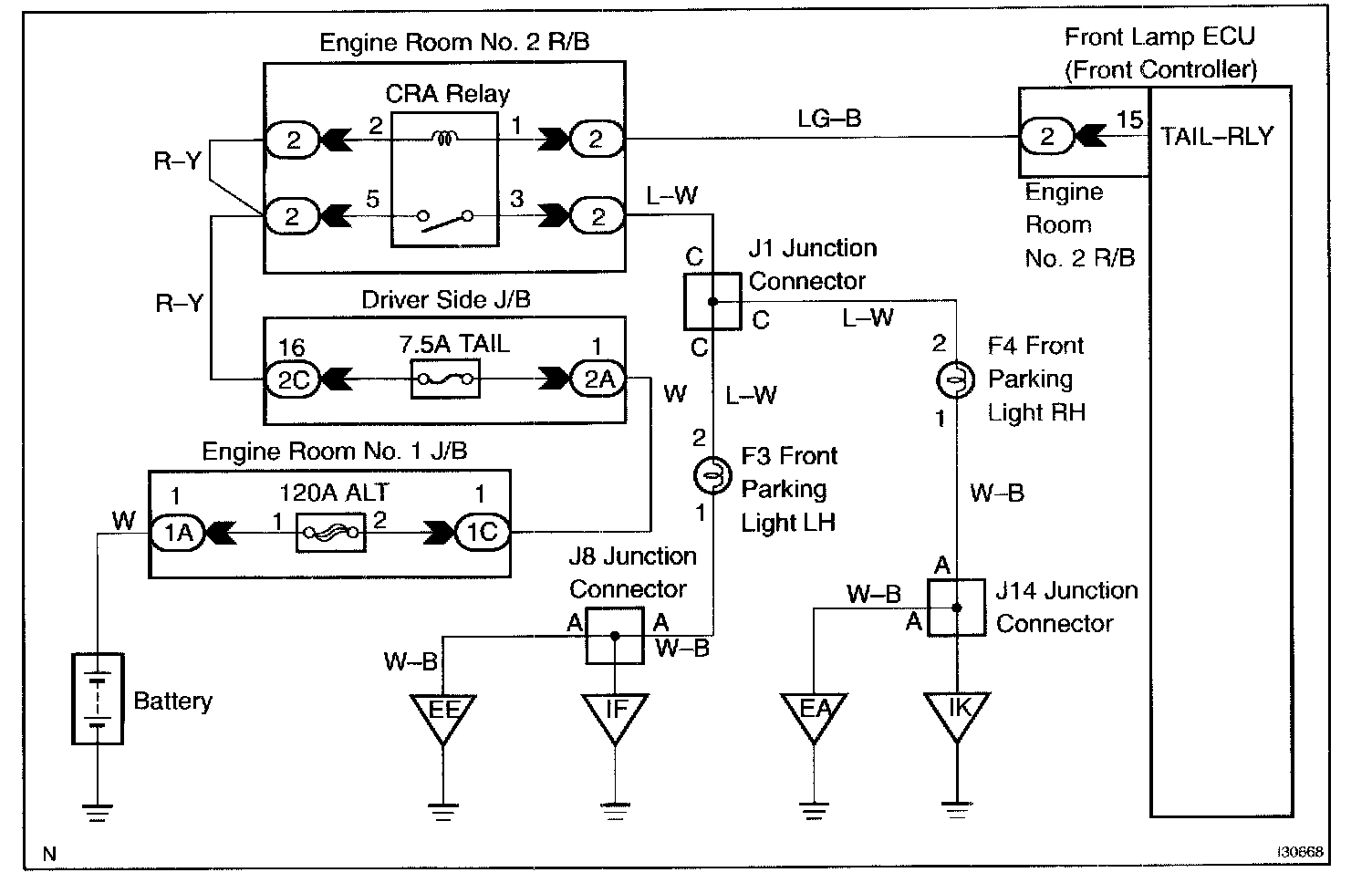

Wiring Diagram:

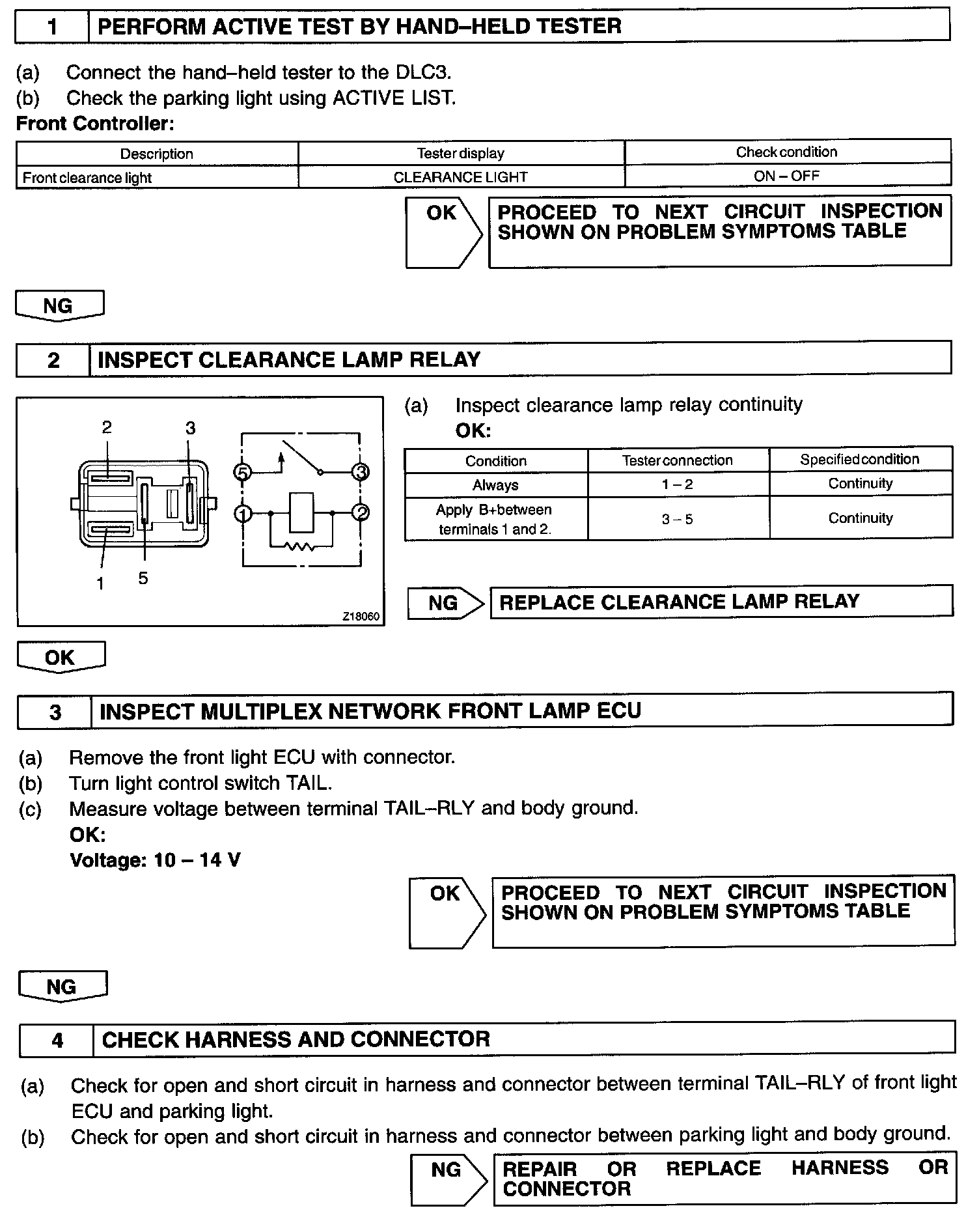

Step 1 - 4:
INSPECTION PROCEDURE
Front lamp ECU receives turn signal switch information from the combination switch, and lights the parking light.

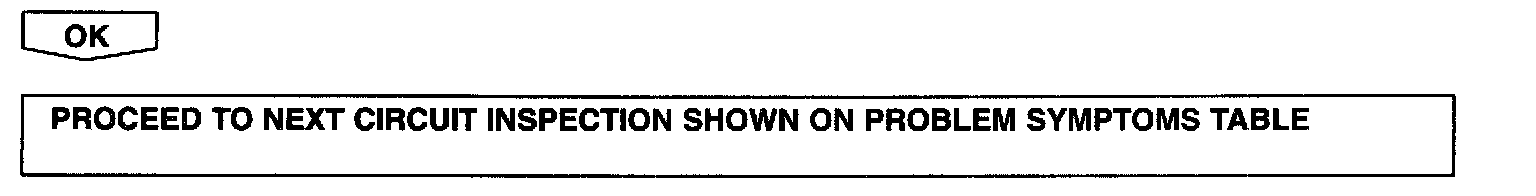

INSPECTION PROCEDURE
