FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2003
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Warning Buzzer Does Not Sound
>>
Parking Brake Warning, Key Unlock Warning, Seat Belt Warning
Parking Brake Warning, Key Unlock Warning, Seat Belt Warning
Warning Buzzer Does Not Sound (Parking Brake Warning, Key Unlock Warning, Seat Belt Warning)

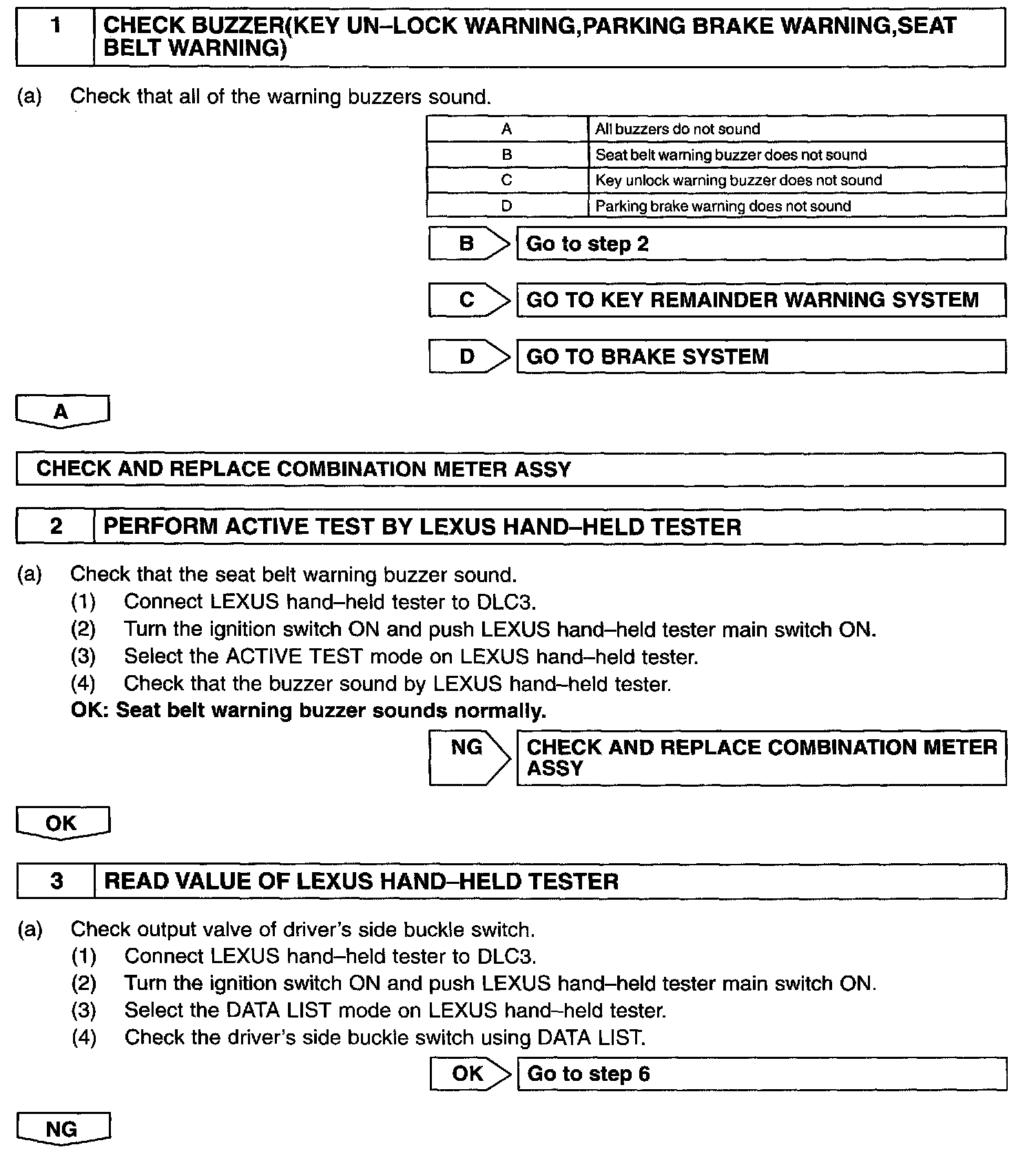

Step 1 - 3:

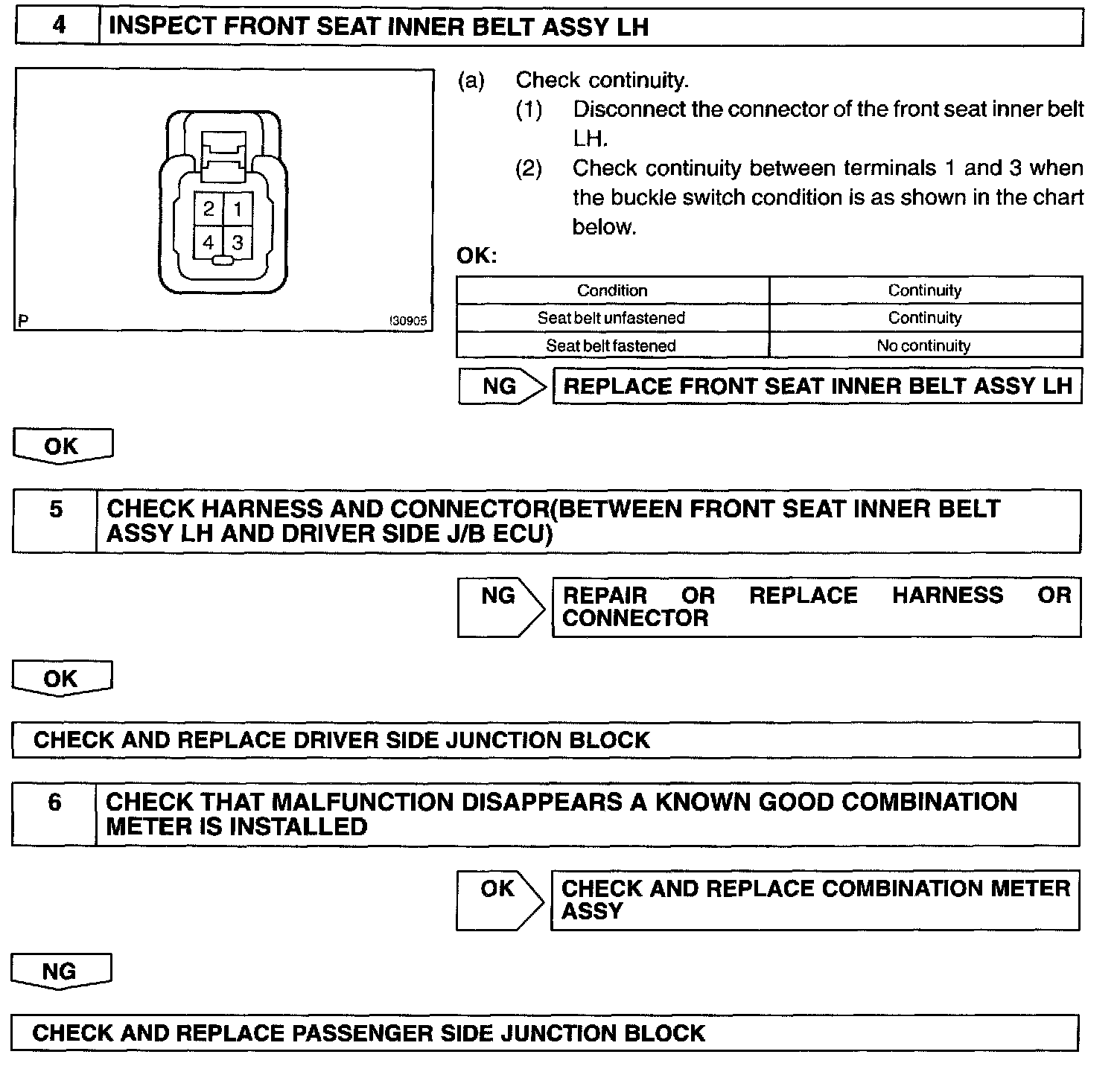

Step 4 - 5:
INSPECTION PROCEDURE
