Open Door Warning, Retractable Hardtop Operating Warning

Warning Buzzer Does Not Sound (Open Door Warning, Retractable Hardtop Operating Warning)

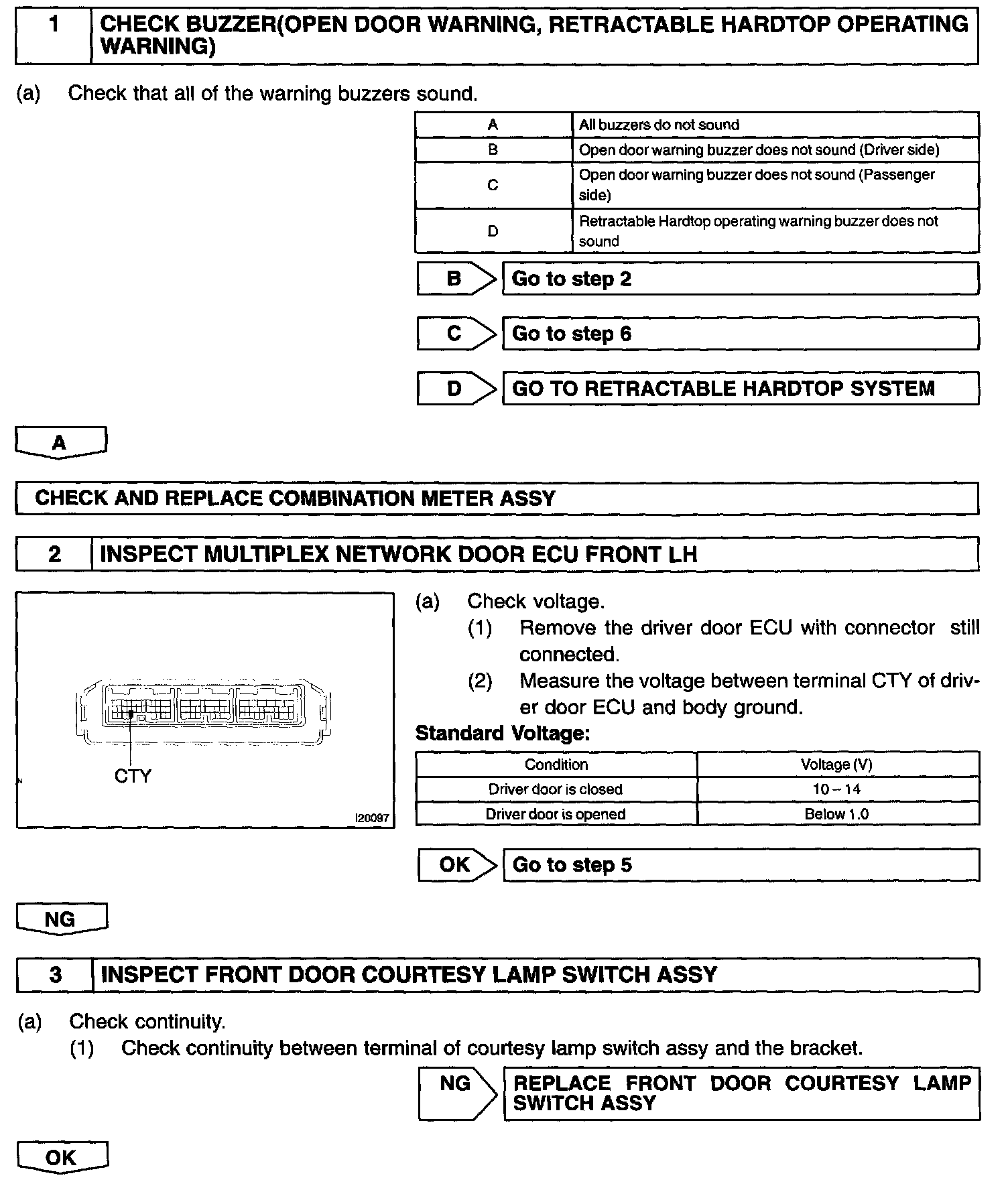

Step 1 - 3:

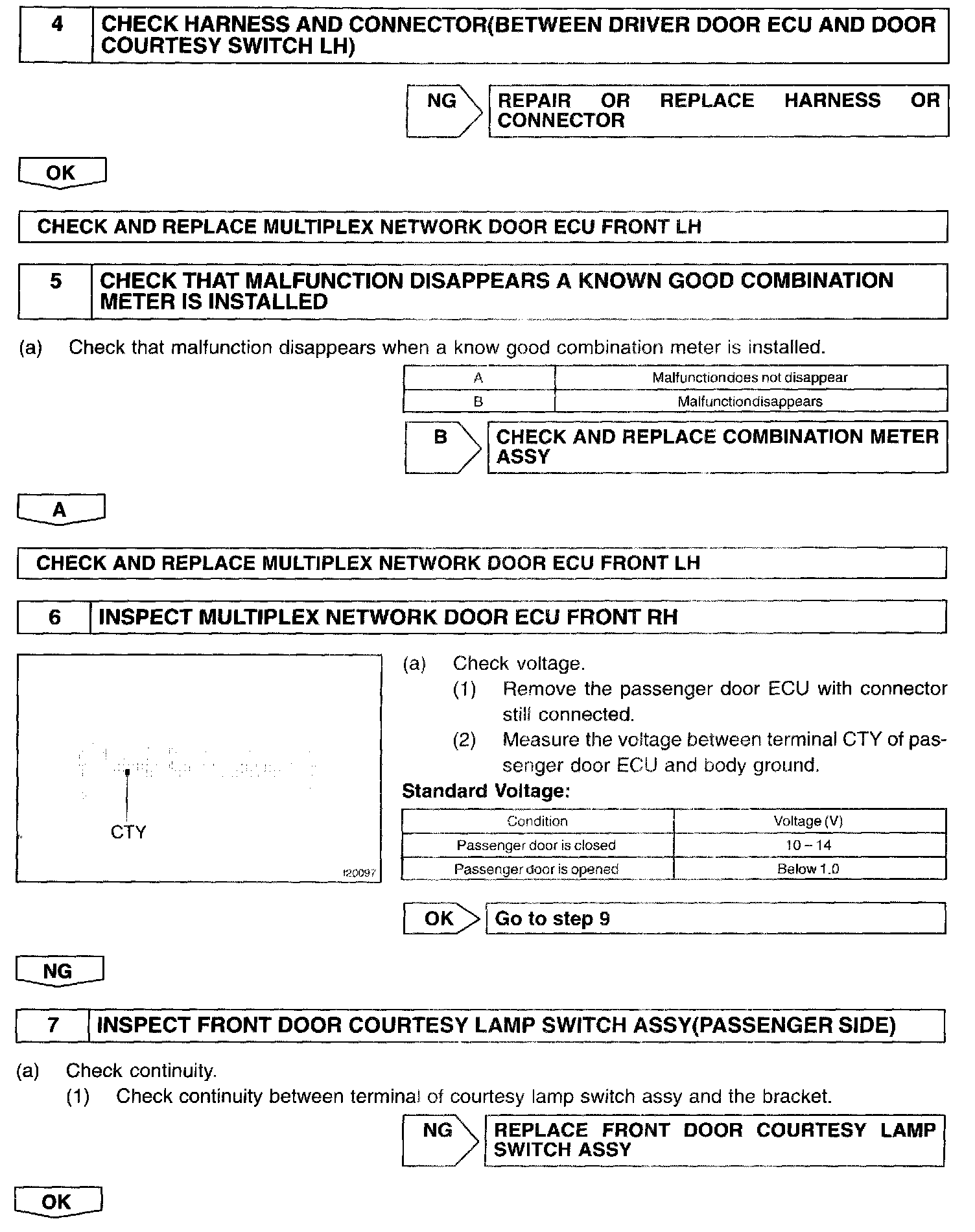

Step 4 - 7:

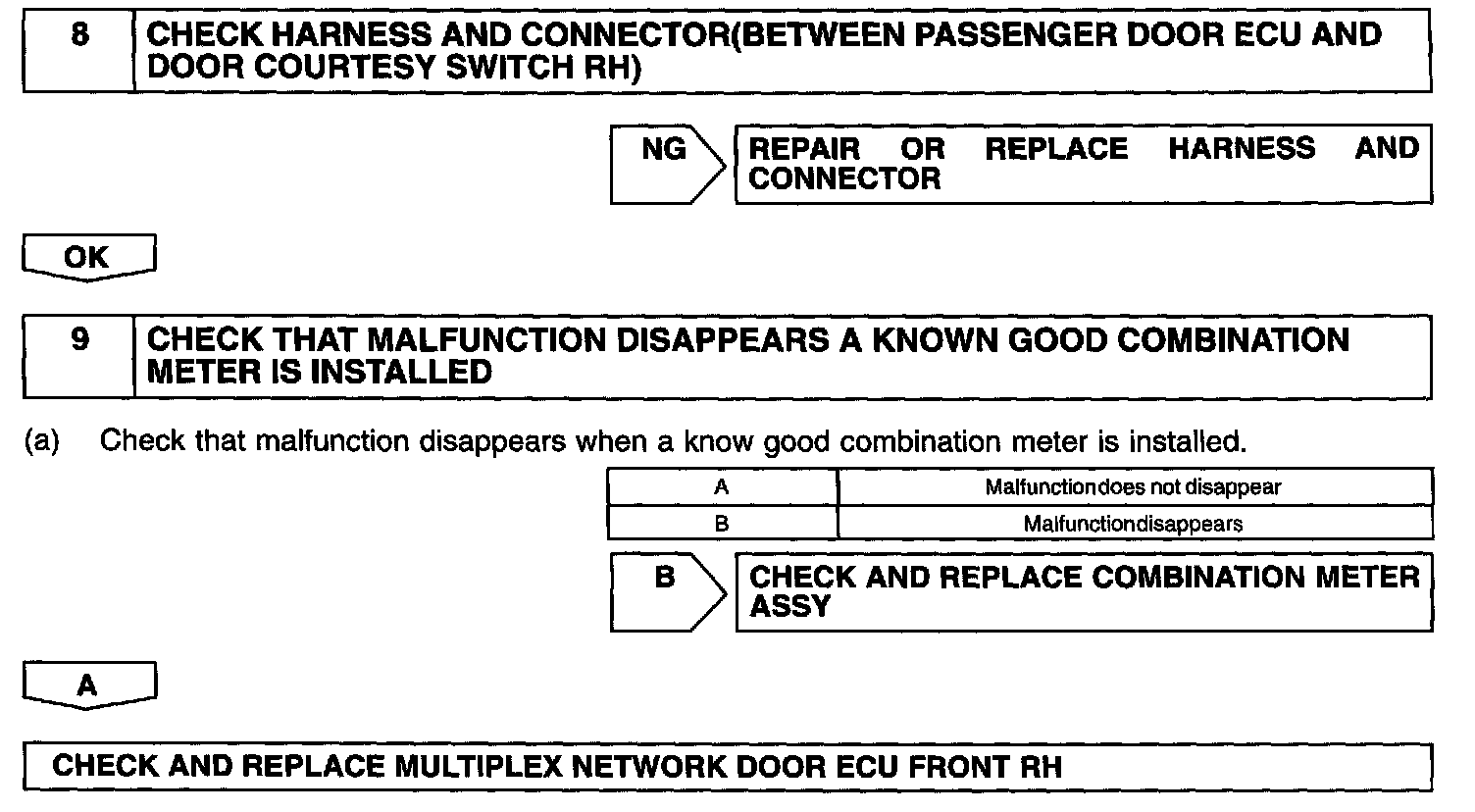

Step 8 - 9:




INSPECTION PROCEDURE
