Seat Belt Warning Lamp For Passenger Seat Does Not Flash
Seat Belt Warning Lamp For Passenger Seat Does Not Flash
Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash

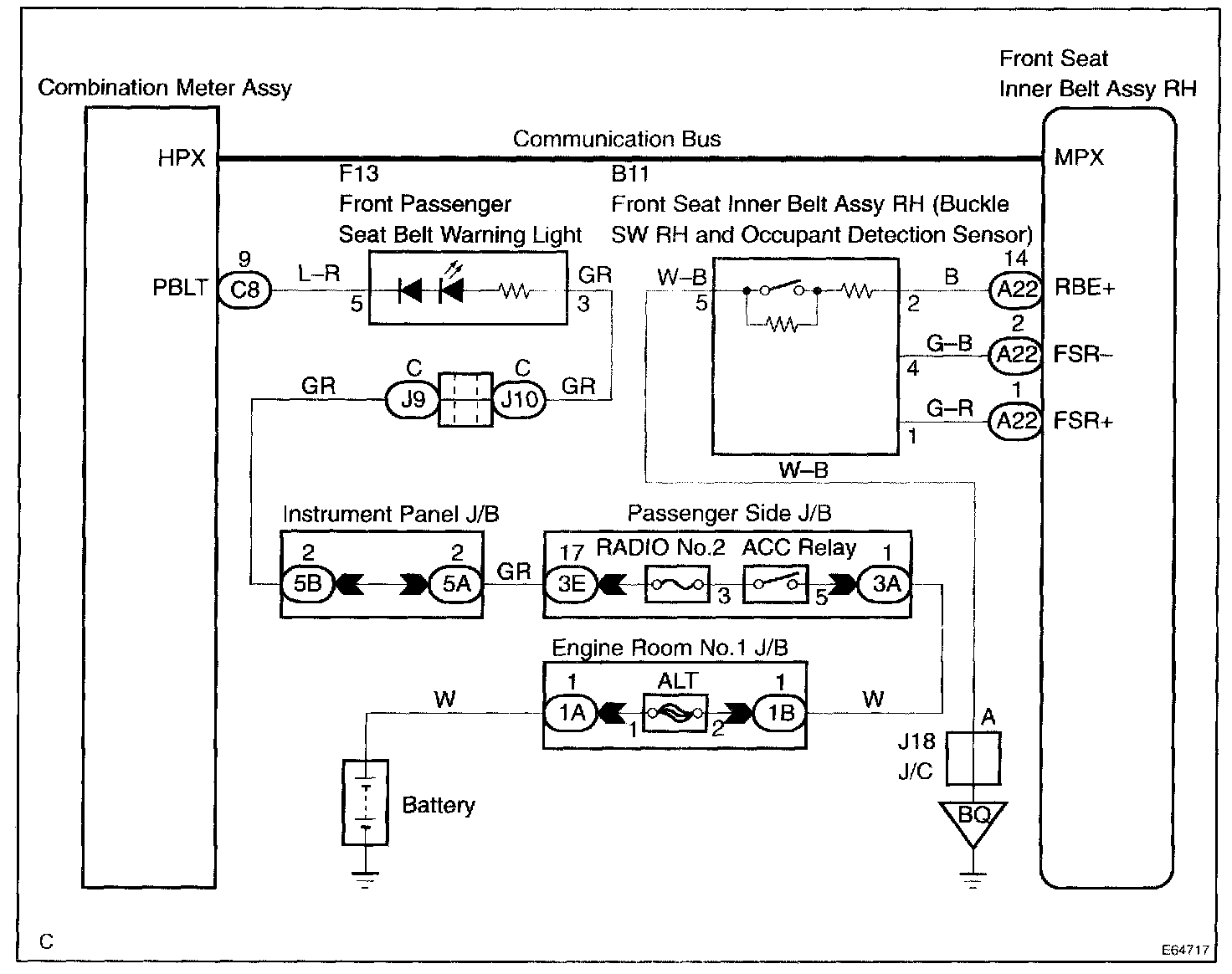

Wiring Diagram:

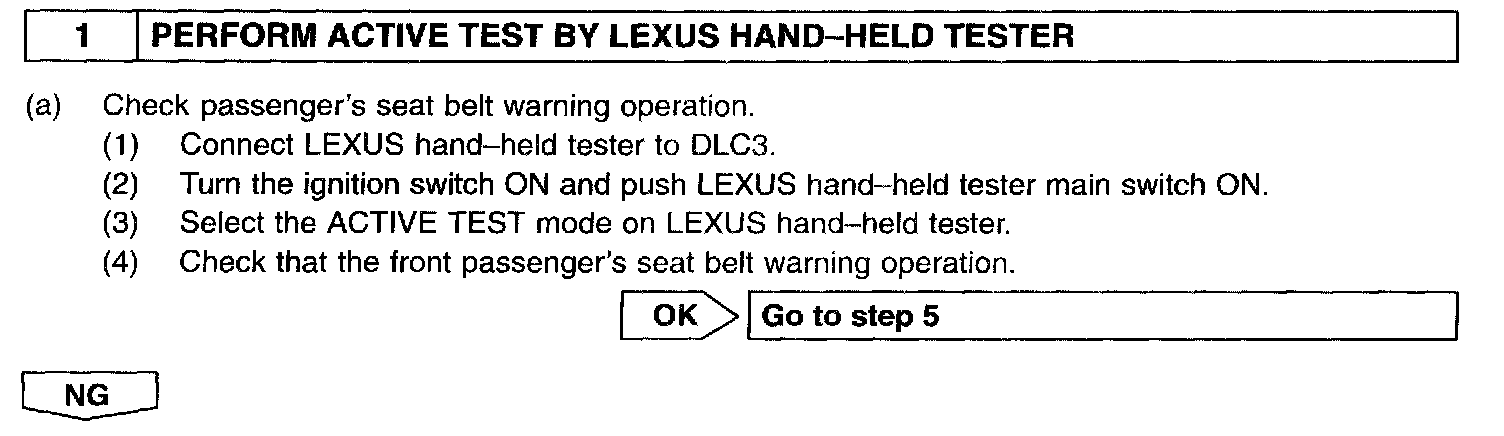

Step 1:

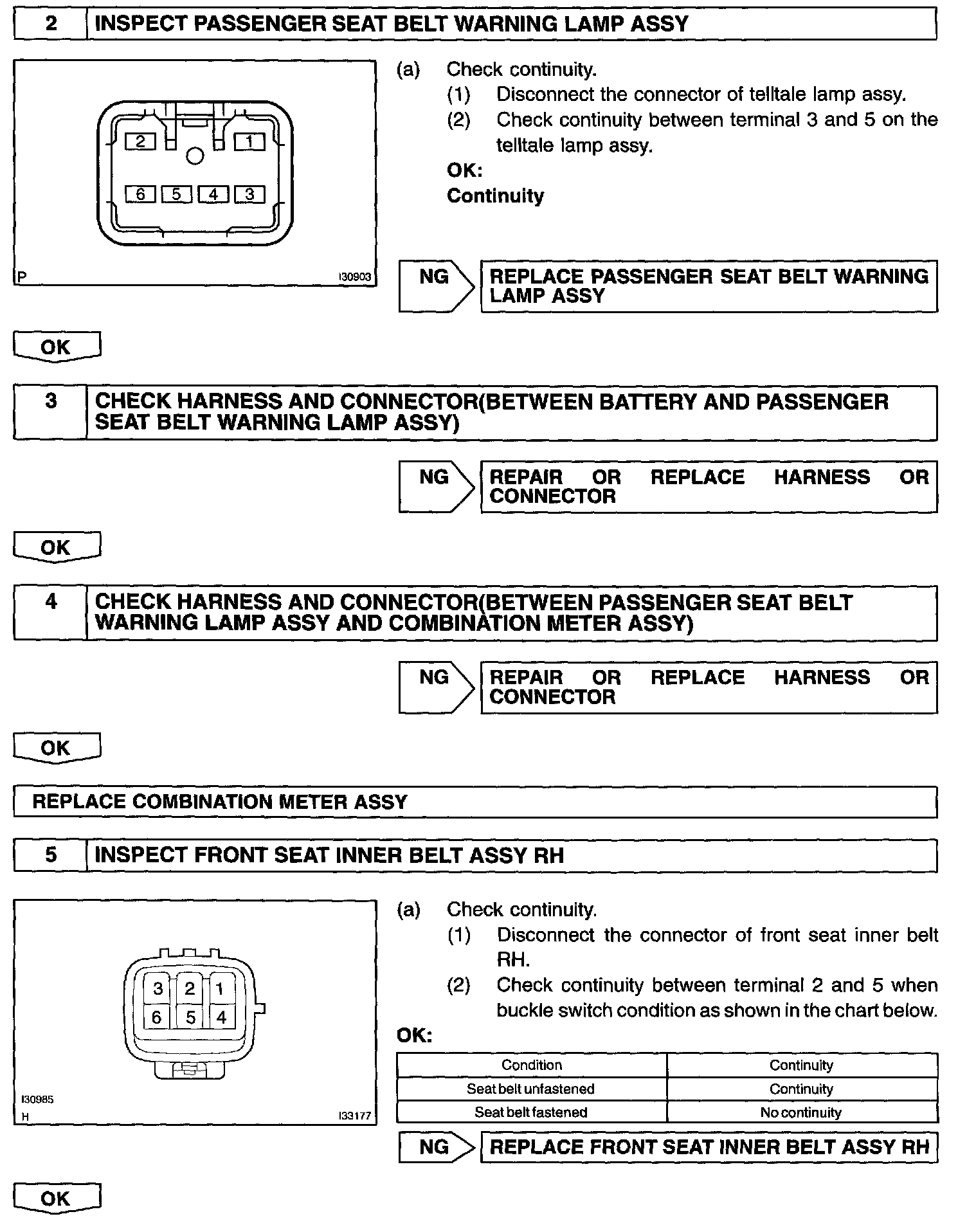

Step 2 - 5:

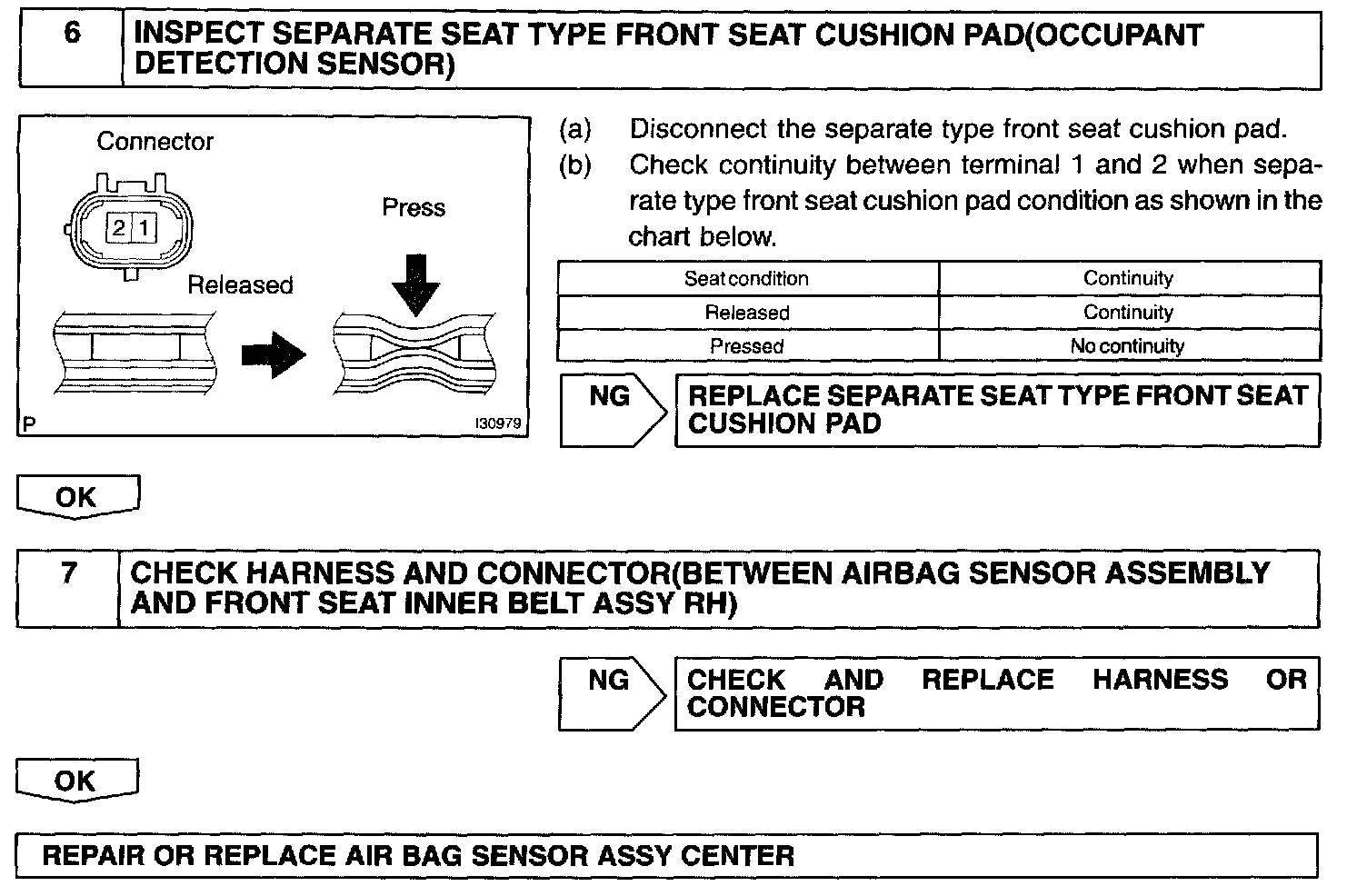

Step 6 - 7:
INSPECTION PROCEDURE
