Light Control Rheostat Does Not Change Light Brightness
Light Control Rheostat Does Not Change Light Brightness
Operating Light Control Rheostat Does Not Change Light Brightness

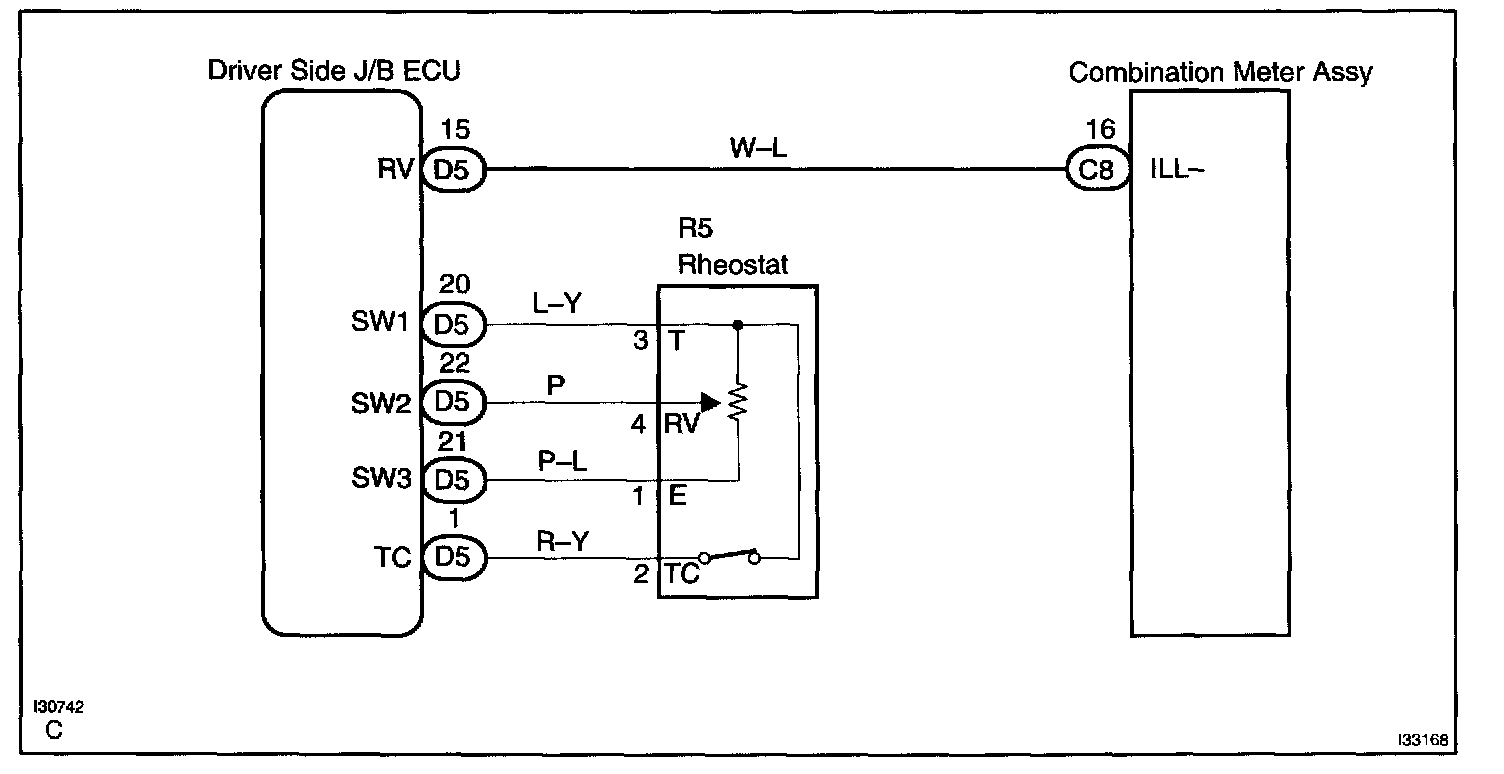

Wiring Diagram:

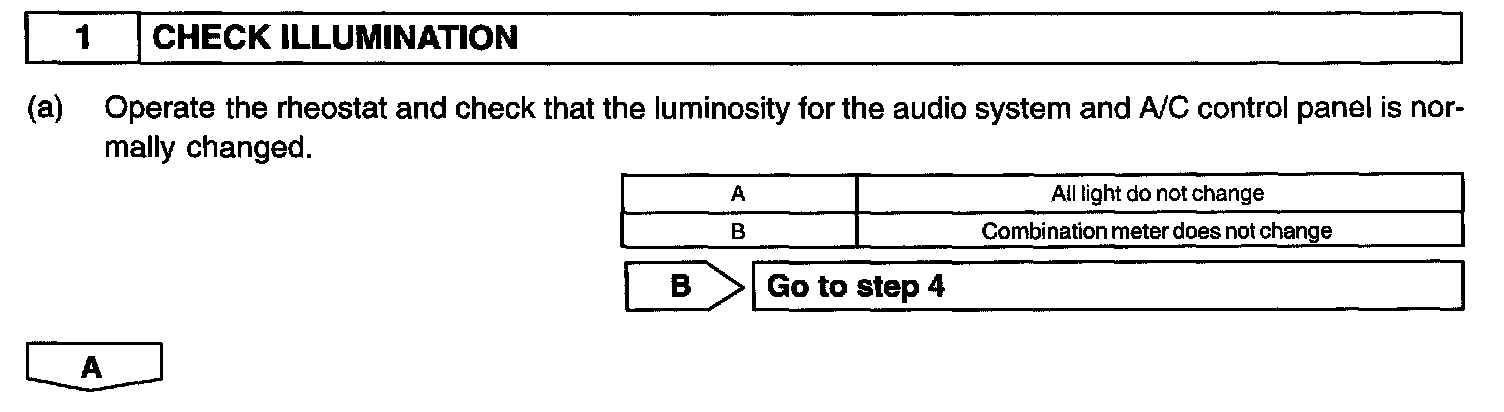

Step 1:

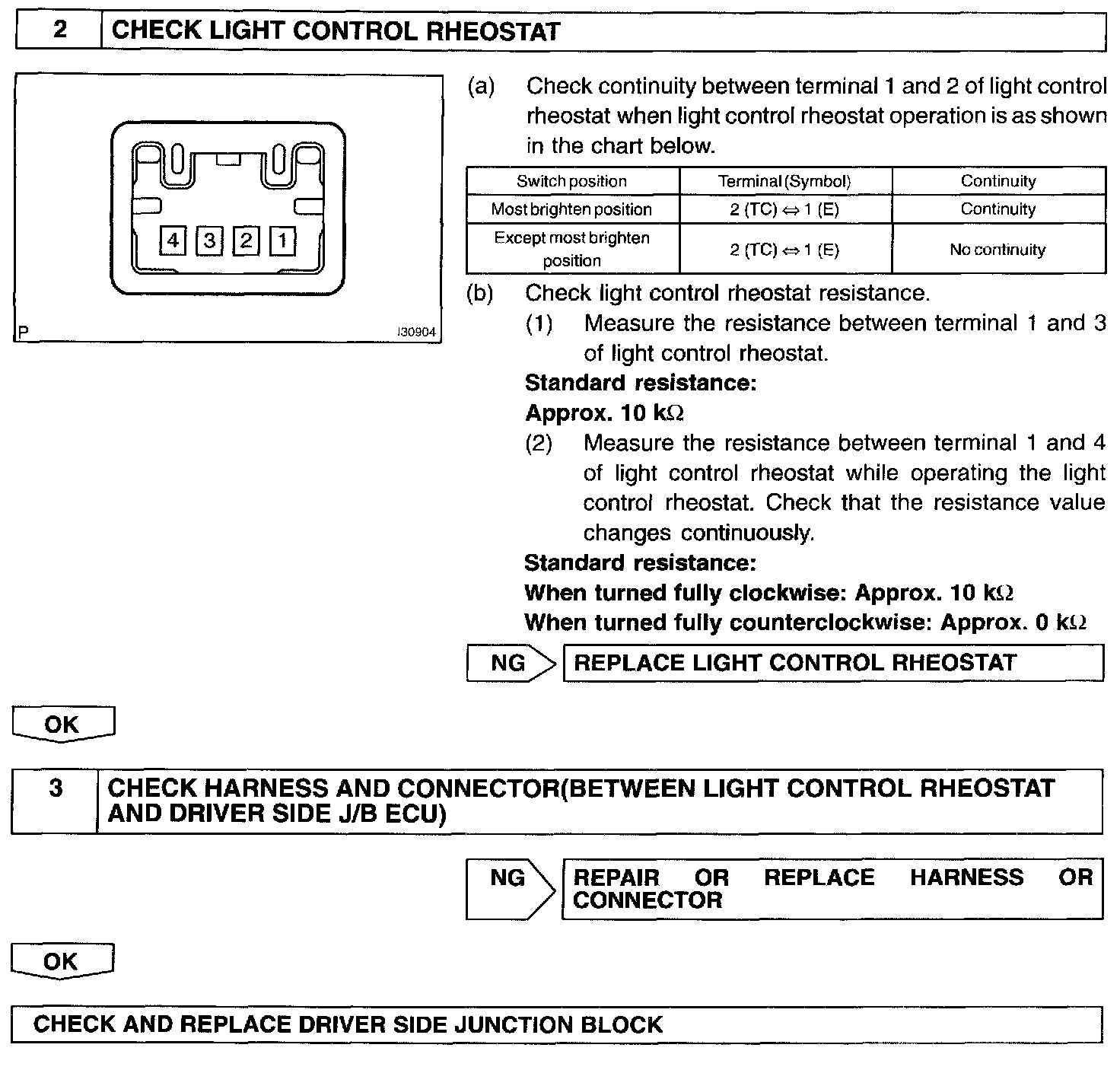

Step 2 - 3:

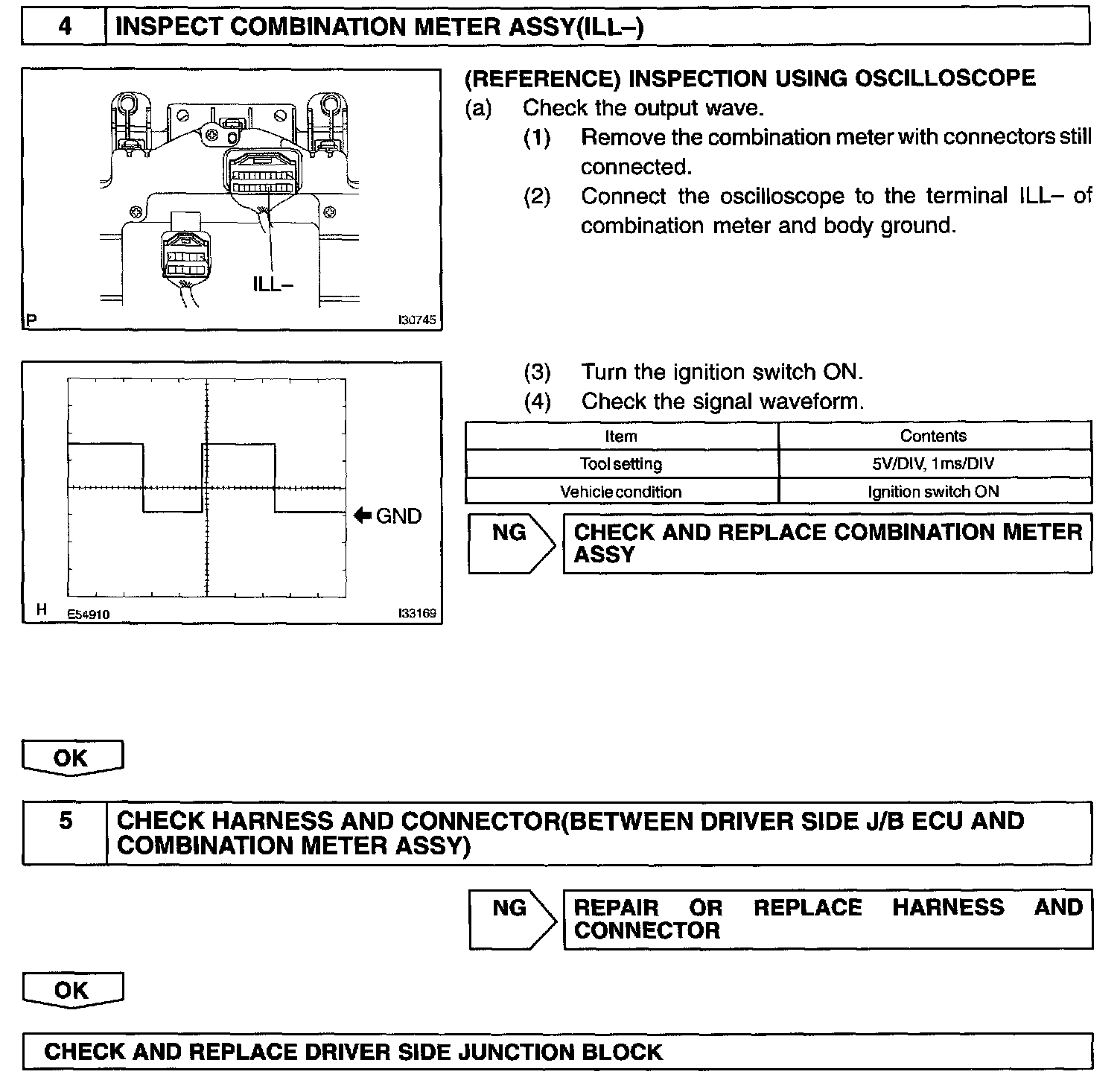

Step 4 - 5:
INSPECTION PROCEDURE
