CIGARETTE LIGHTER ASSY

REPLACEMENT

1. REMOVE CONSOLE UPPER PANEL GARNISH REAR
2. REMOVE CONSOLE PANEL SUB-ASSY UPPER




3. REMOVE CIGARETTE LIGHTER ASSY

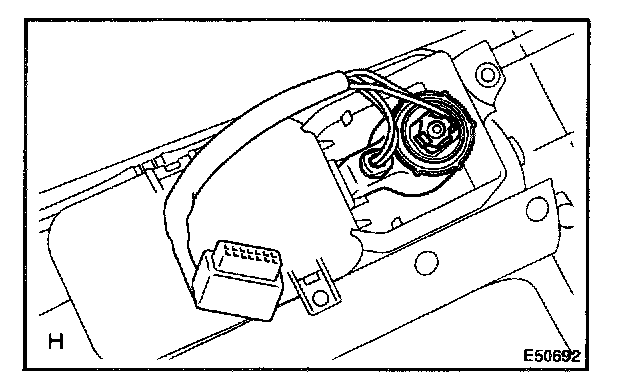

a. Rotate the socket cap counterclockwise to remove it.
b. Remove the cigarette lighter assy from the cigar-lighter hole bezel.

4. INSTALL CIGARETTE LIGHTER ASSY
a. Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
b. Rotate the socket cap clockwise from the backside.
