Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. INSPECT DRIVER DOOR ECU
Terminals Of ECU - Driver Door ECU Part 1:
Terminals Of ECU - Driver Door ECU Part 2:

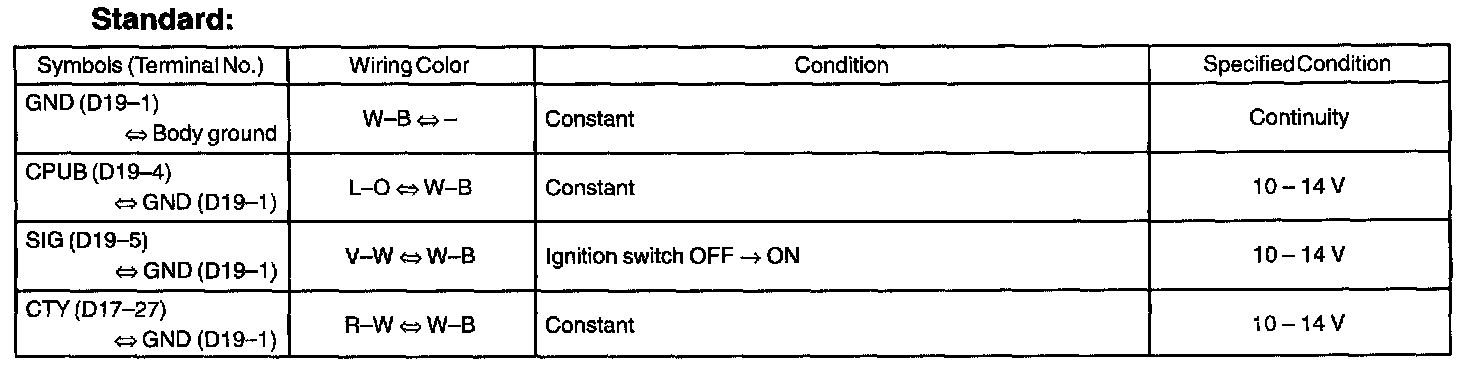

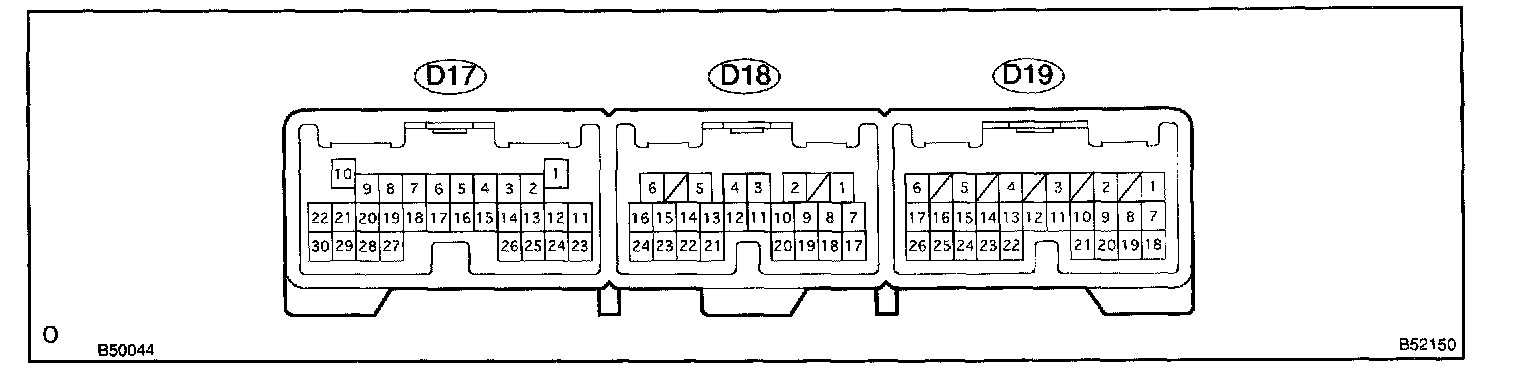

a. Disconnect the the D17 and D19 ECU connectors, and check the voltage or continuity between each terminal of the wire harness side connectors.
If the result is not as specified, the wire harness side may malfunction.
2. INSPECT THEFT WARNING ECU
Terminals Of ECU - Theft Warning ECU Part 1:
Terminals Of ECU - Theft Warning ECU Part 2:

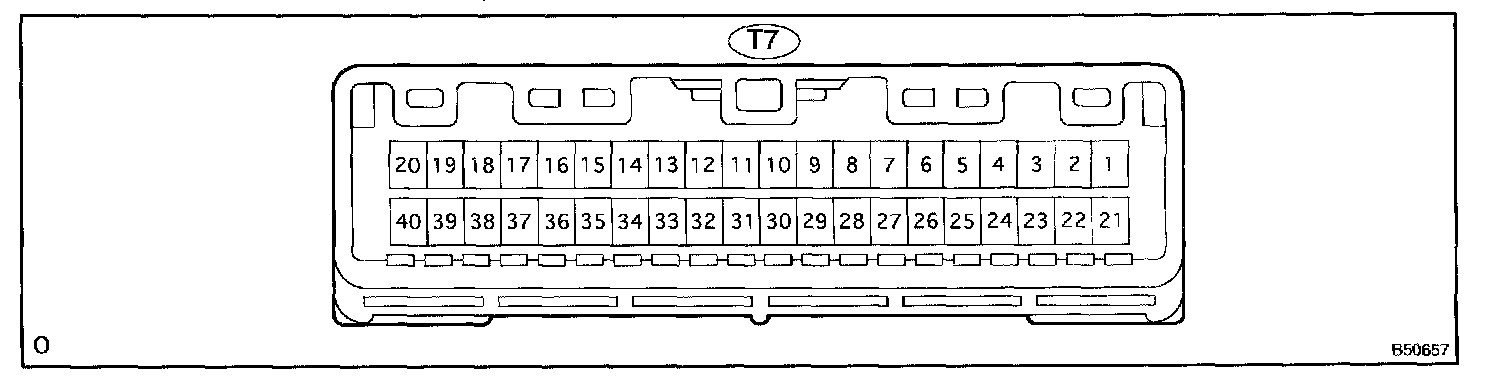

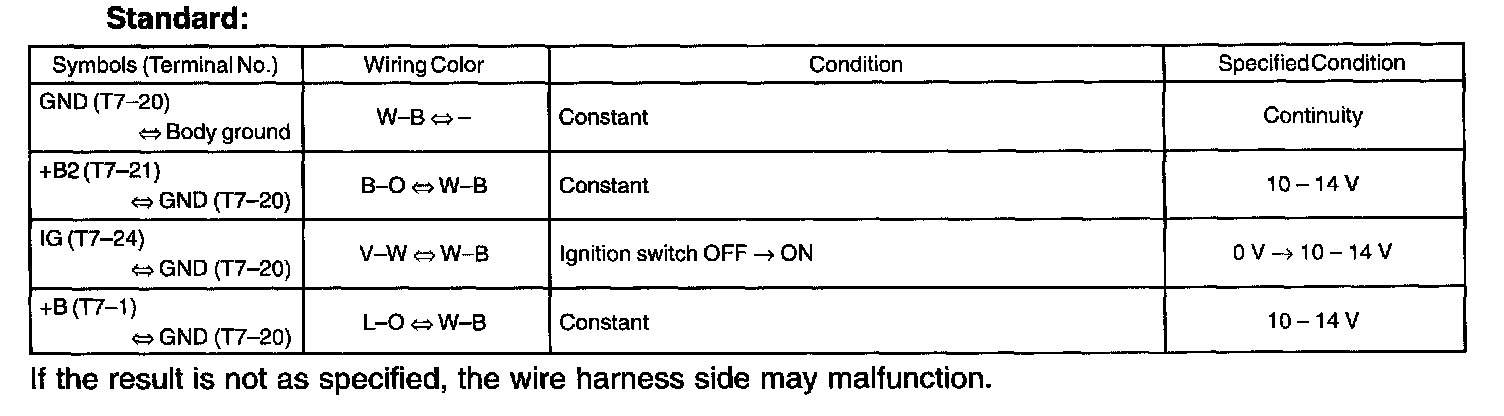

a. Disconnect the the T7 ECU connector, and check the voltage or continuity between each terminal of the wire harness side connector.
3. INSPECT TRANSPONDER KEY ECU
Terminals Of ECU - Transponder Key ECU Part 1:
Terminals Of ECU - Transponder Key ECU Part 2:

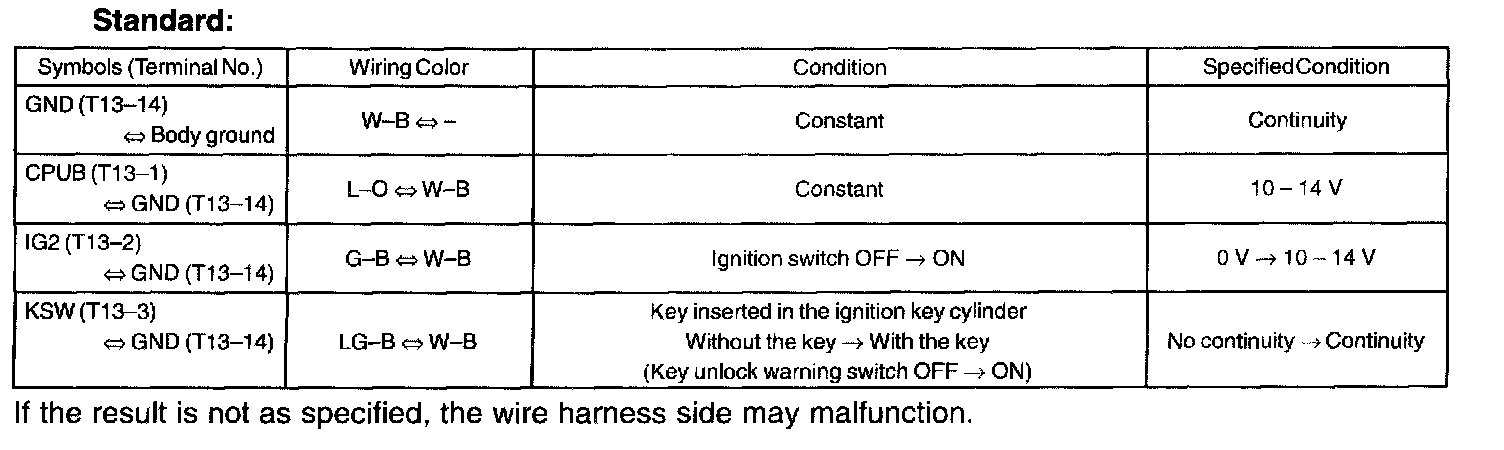

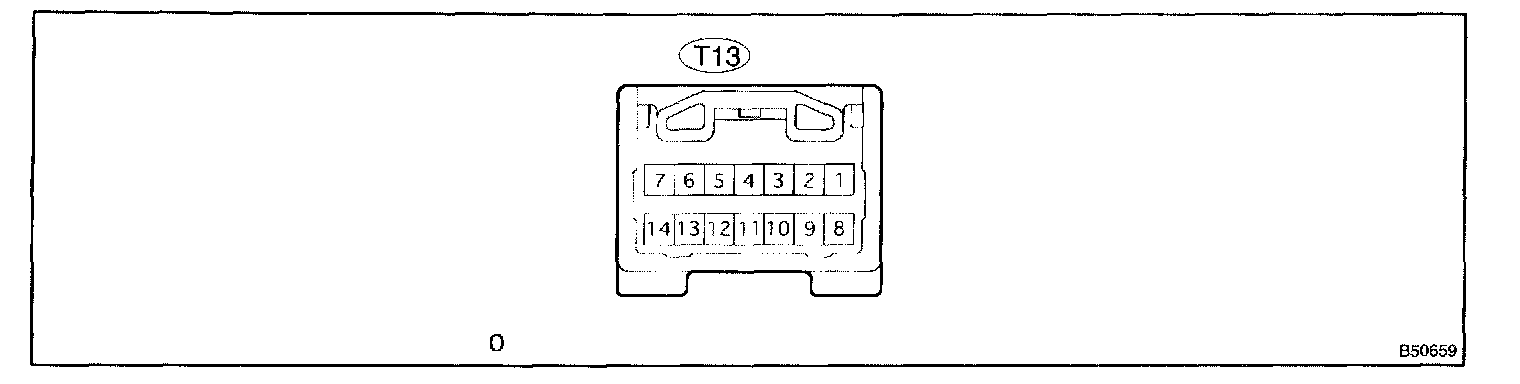

a. Disconnect the the T13 ECU connector, and check the voltage or continuity between each terminal of the wire harness side connector.
