Pre-Check

PRE-CHECK

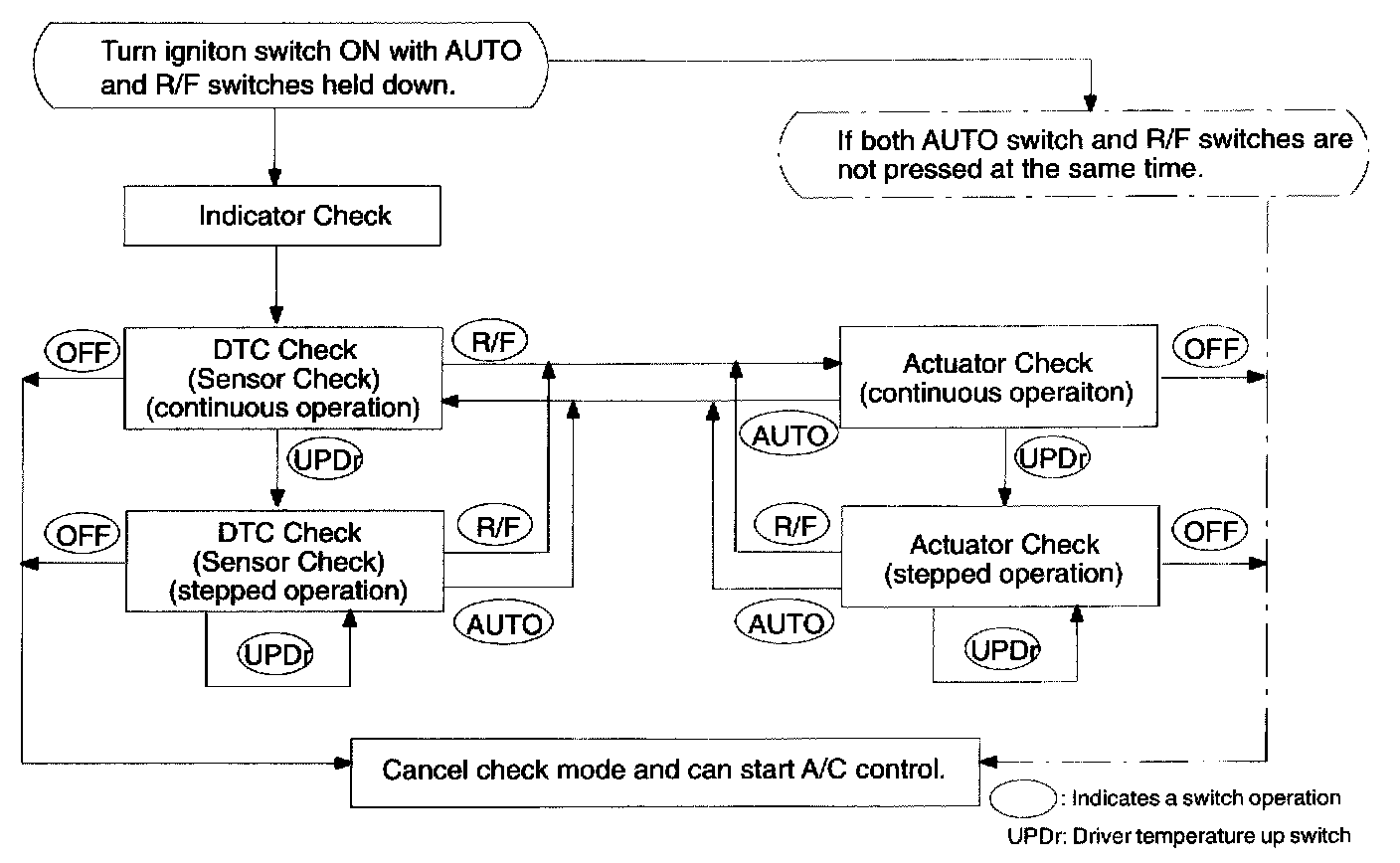

1. LIST OF OPERATION METHODS




By operating each of the A/C control switches as shown the diagram, it is possible to enter the diagnosis check mode.

2. INDICATOR CHECK

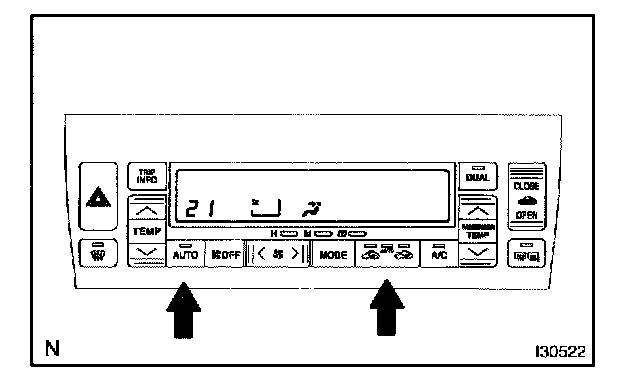

a. Turn the ignition switch ON while pressing the A/C control AUTO switch and R/F switch simultaneously.

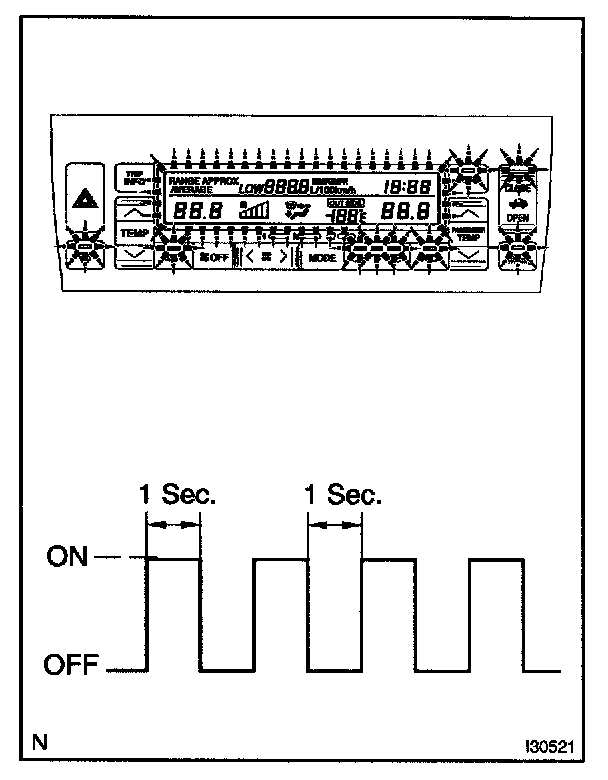

b. Check that the indicators come on and go off at intervals of one second for 4 times in succession.

HINT:
- After the indicator check is completed, the system enters the DTC begins automatically.
- Press the OFF switch when desiring to cancel the check mode.
