LAP-JET Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION
The damper servo sub-assy is controlled by the A/C amplifier assy and move the damper servo sub-assy to the desired position.

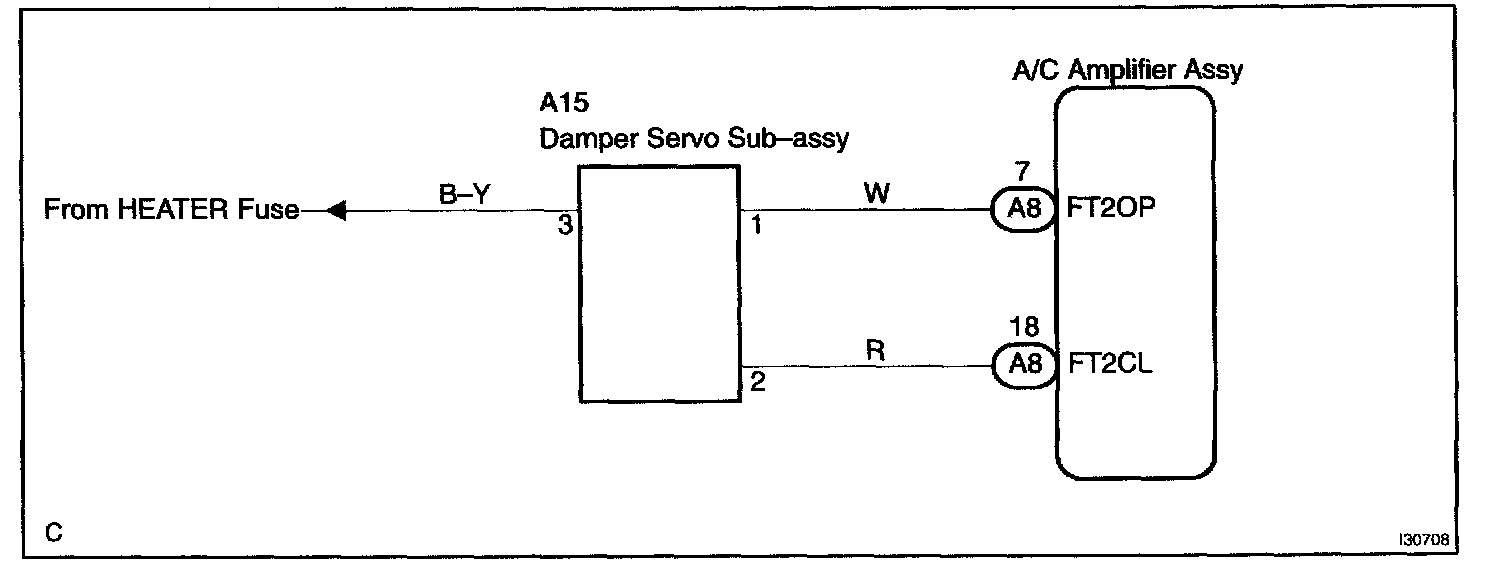

Wiring Diagram:

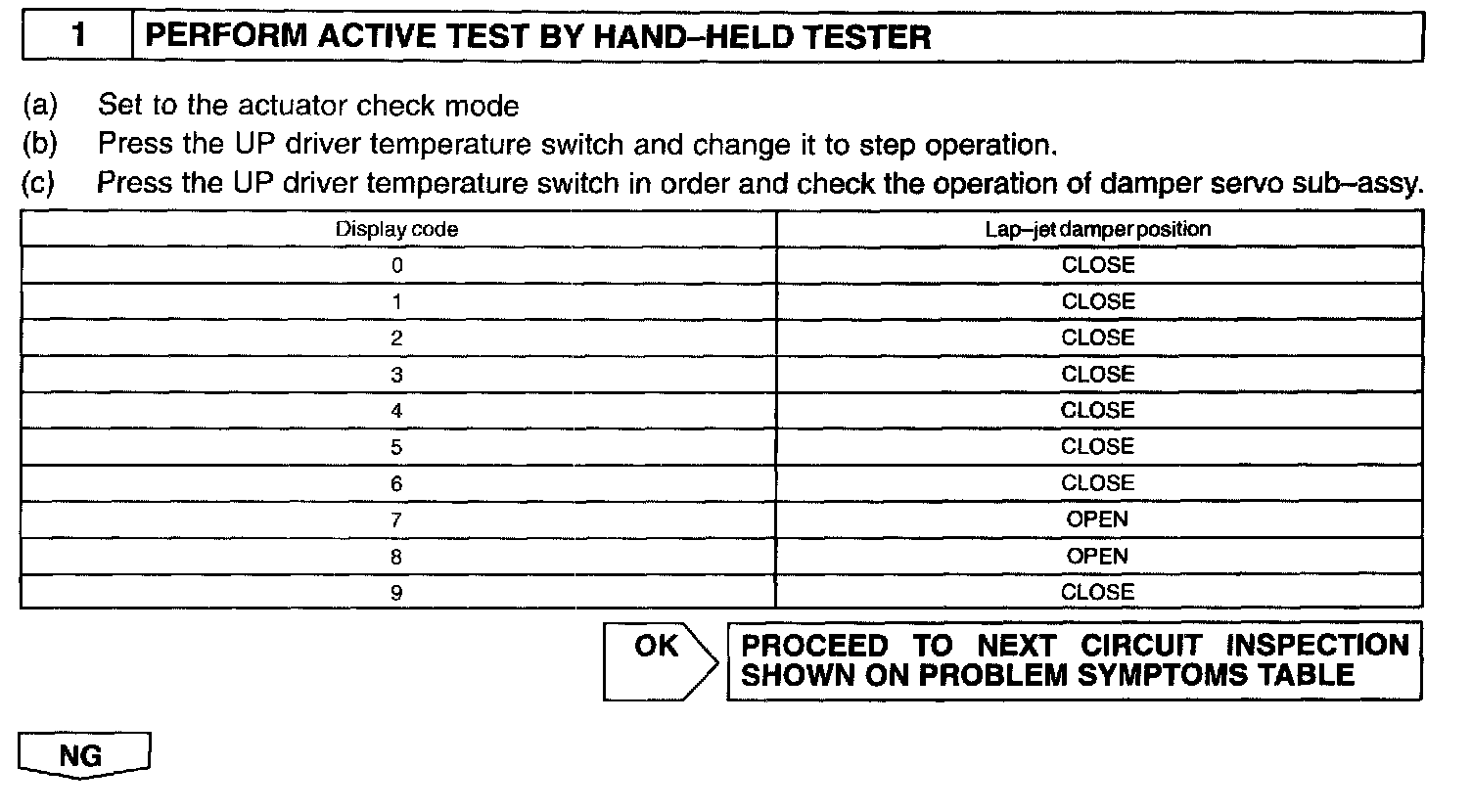

Step 1:

Step 2 - 3:

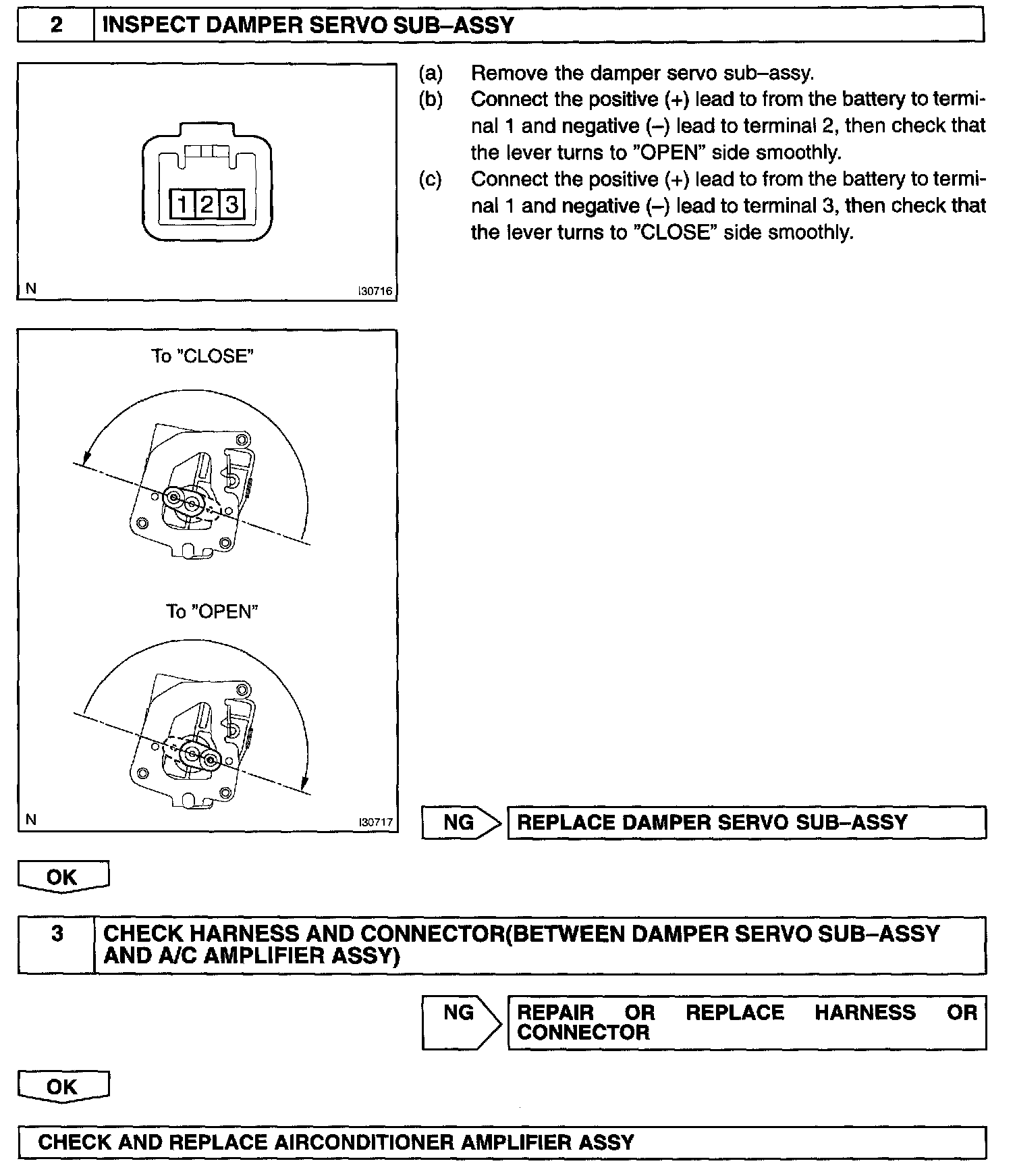

INSPECTION PROCEDURE
