Compressor Magnetic Clutch Circuit

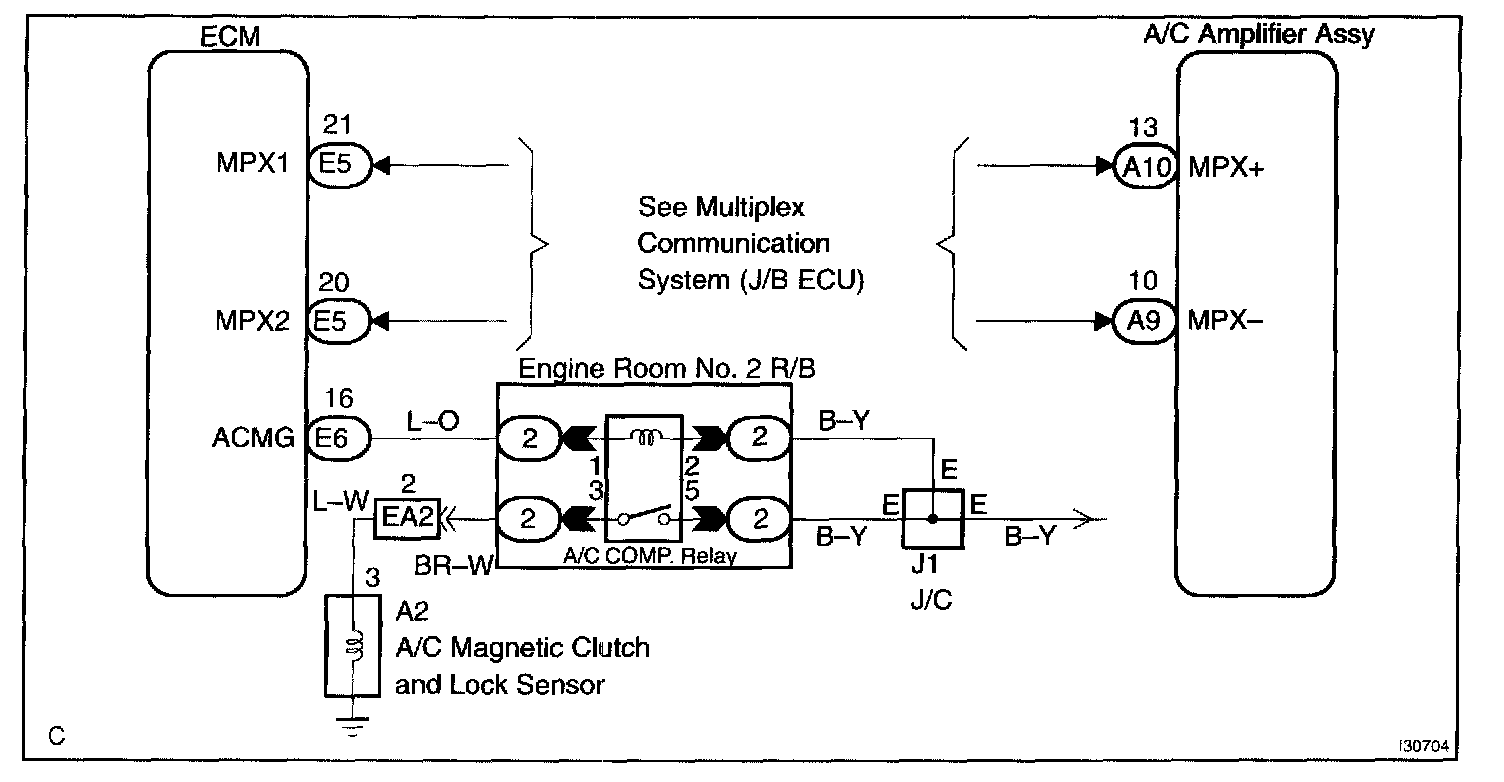

CIRCUIT DESCRIPTION
The air conditioning amplifier outputs the magnetic clutch ON signal from terminal MPX to the ECM receives this signal, it sends a signal from terminal ACMG and switches the magnetic clutch relay ON, thus turning on the magnetic clutch
