Back-Up Power Source Circuit

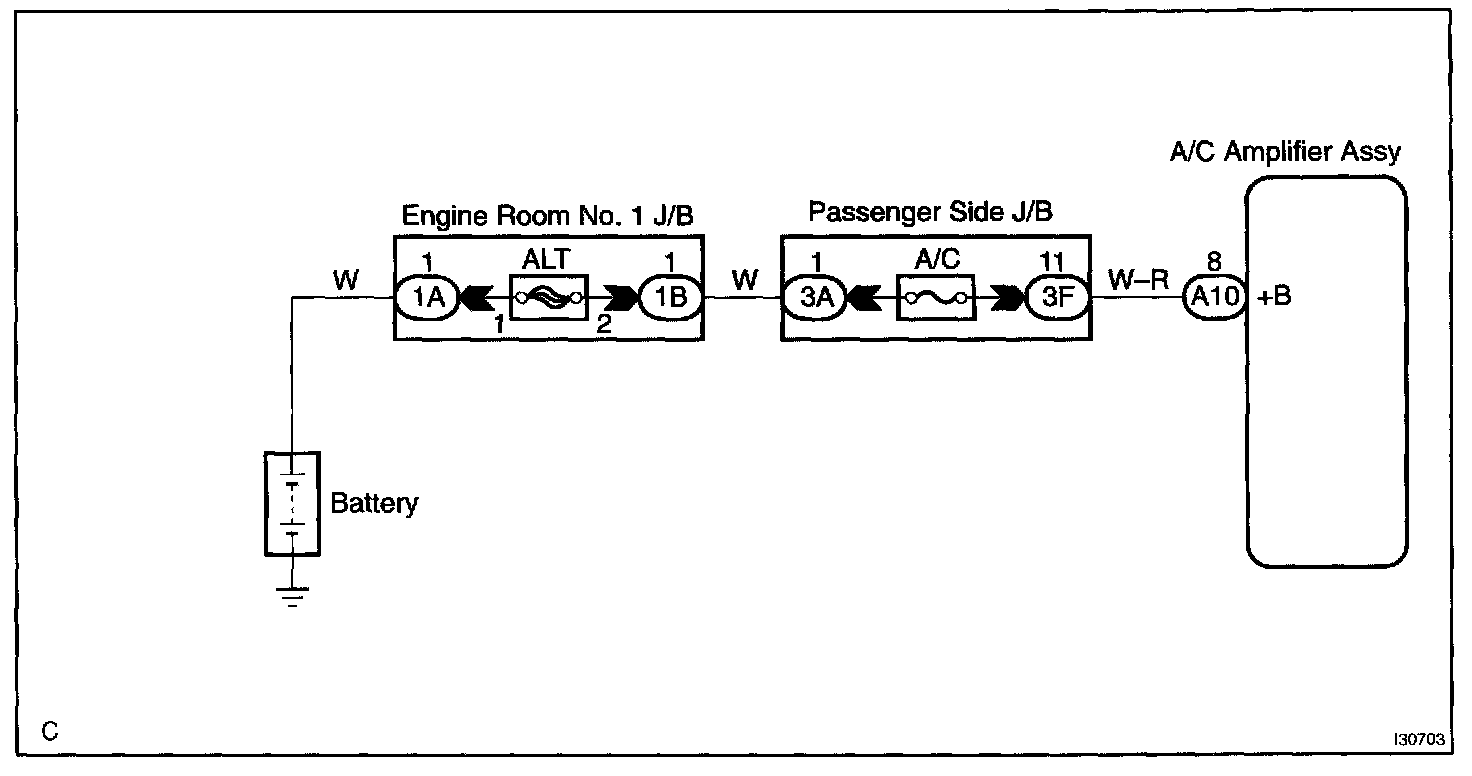

CIRCUIT DESCRIPTION
This circuit supplies back-up power source for the A/C amplifier assy. Power is supplied even if the ignition switch is off and used for diagnostic trouble code memory, etc.
