ACC Power Source Circuit

CIRCUIT DESCRIPTION
This circuit supplies power to the A/C amplifier assy for the clock light.

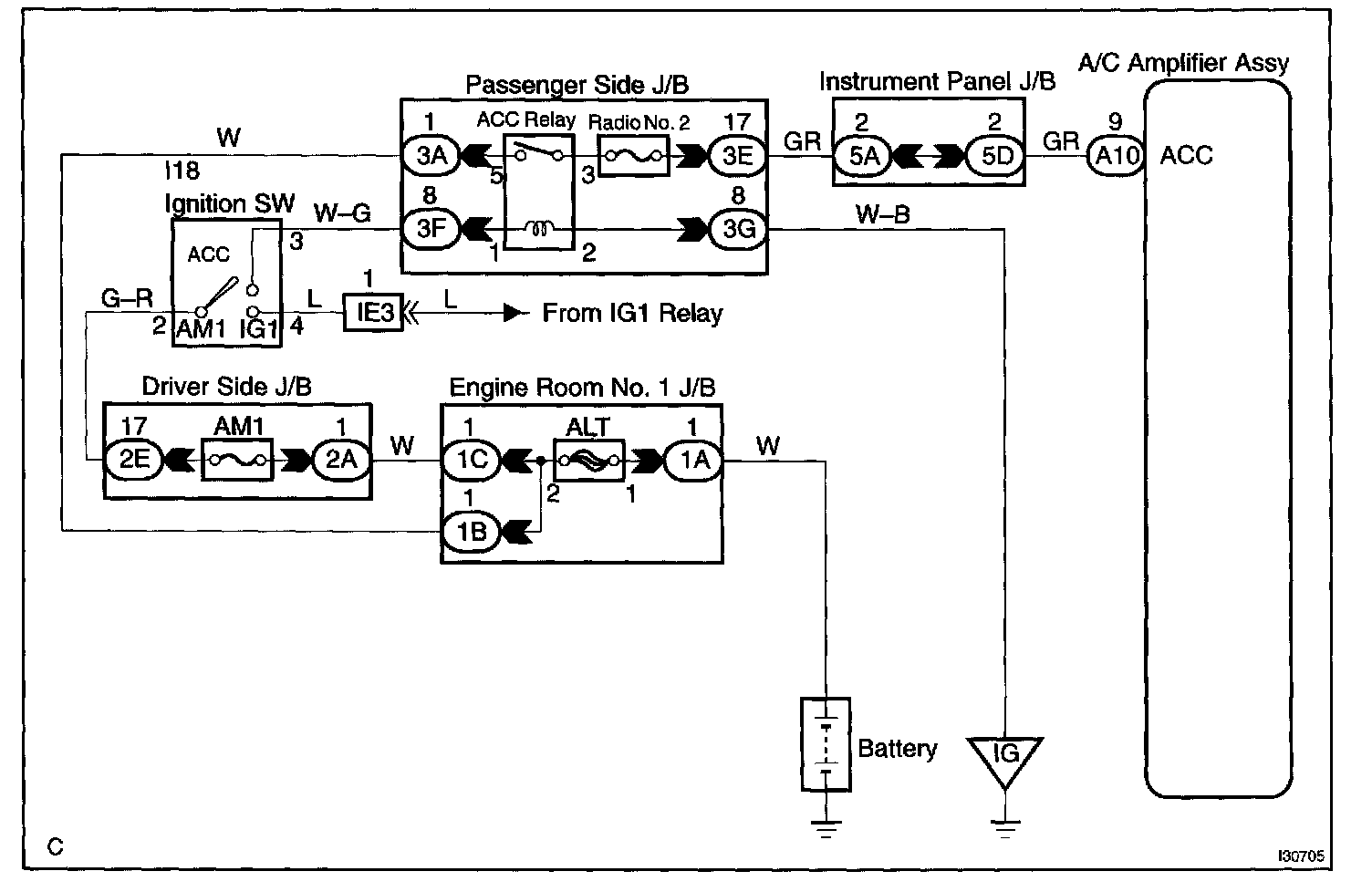

Wiring Diagram:

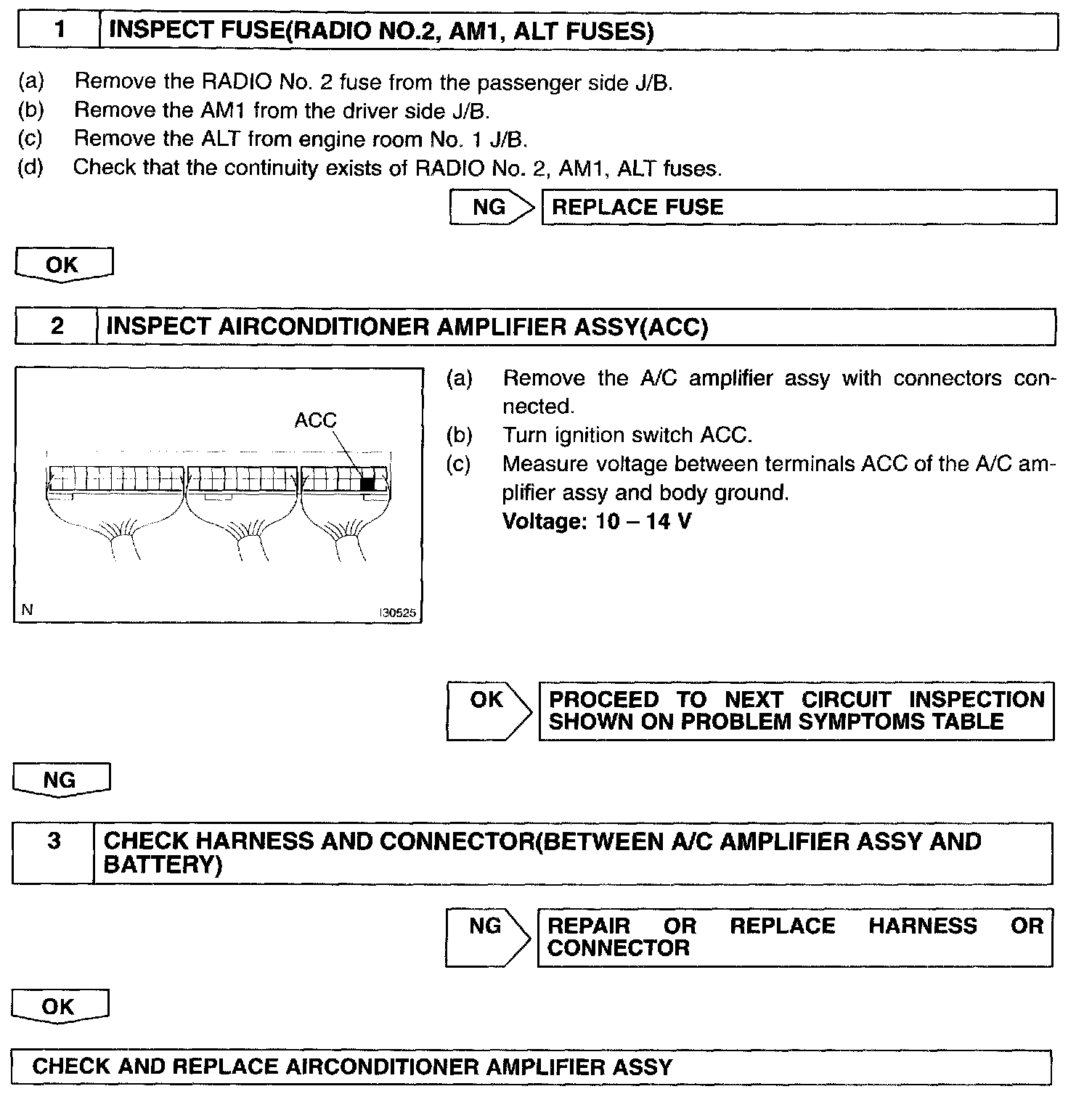

Step 1 - 3:




INSPECTION PROCEDURE
