Blower Motor: Service and Repair

Blower Assy Part 1:

Blower Assy Part 2:

Blower Assy Part 3:

OVERHAUL

1. SHIP MODE SETTING (W/ CD CHANGER)
2. SEPARATE BATTERY NEGATIVE TERMINAL
3. INSPECT CENTER FRONT WHEEL
4. REMOVE STEERING WHEEL COVER LOWER NO.2
5. REMOVE SWITCH & VOLUME CASE
6. REMOVE STEERING PAD SWITCH MODULATOR
7. REMOVE HORN BUTTON ASSY

8. REMOVE STEERING WHEEL ASSY

SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

9. REMOVE DOOR SCUFF PLATE ASSY RH
10. REMOVE DOOR SCUFF PLATE ASSY LH
11. REMOVE FRONT DOOR OPENING TRIM COVER RH
12. REMOVE FRONT DOOR OPENING TRIM COVER LH
13. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1
14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
15. REMOVE STEERING COLUMN COVER LWR
16. REMOVE STEERING COLUMN COVER UPR
17. REMOVE TURN SIGNAL SWITCH ASSY
18. REMOVE COMBINATION METER ASSY
19. REMOVE CONSOLE UPPER PANEL GARNISH REAR
20. REMOVE CONSOLE PANEL SUB-ASSY UPPER
21. REMOVE AIR CONDITIONER CONTROL ASSY
22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER
23. SHIP MODE CONFIRMATION (W/ CD CHANGER)
24. REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (W/O LEXUS NAVIGATION SYSTEM)
25. REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (W/ LEXUS NAVIGATION SYSTEM)
26. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY NO.2 (W/ LEXUS NAVIGATION SYSTEM)
27. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (WI LEXUS NAVIGATION SYSTEM)
28. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
29. REMOVE GLOVE COMPARTMENT DOOR ASSY
30. REMOVE CONSOLE BOX CARPET
31. REMOVE BOX PANEL NO.3
32. REMOVE CONSOLE BOX ASSY
33. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.2
34. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.1
35. REMOVE FRONT PILLAR GARNISH RH
36. REMOVE FRONT PILLAR GARNISH LH
37. REMOVE INSTRUMENT SIDE PANEL RH
38. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY




39. REMOVE AIR DUCT NO.2

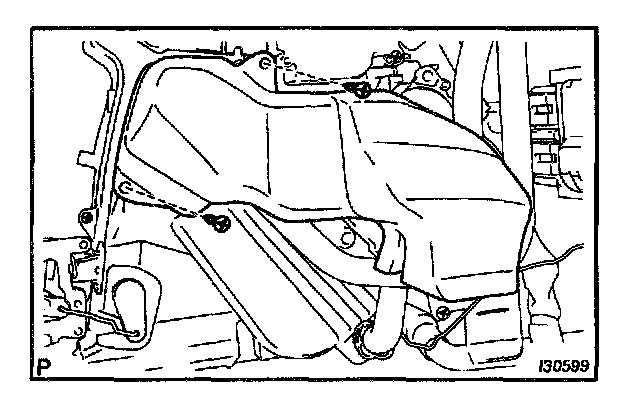

a. Remove the 2 screws and air duct No.2.




40. REMOVE BLOWER ASSY

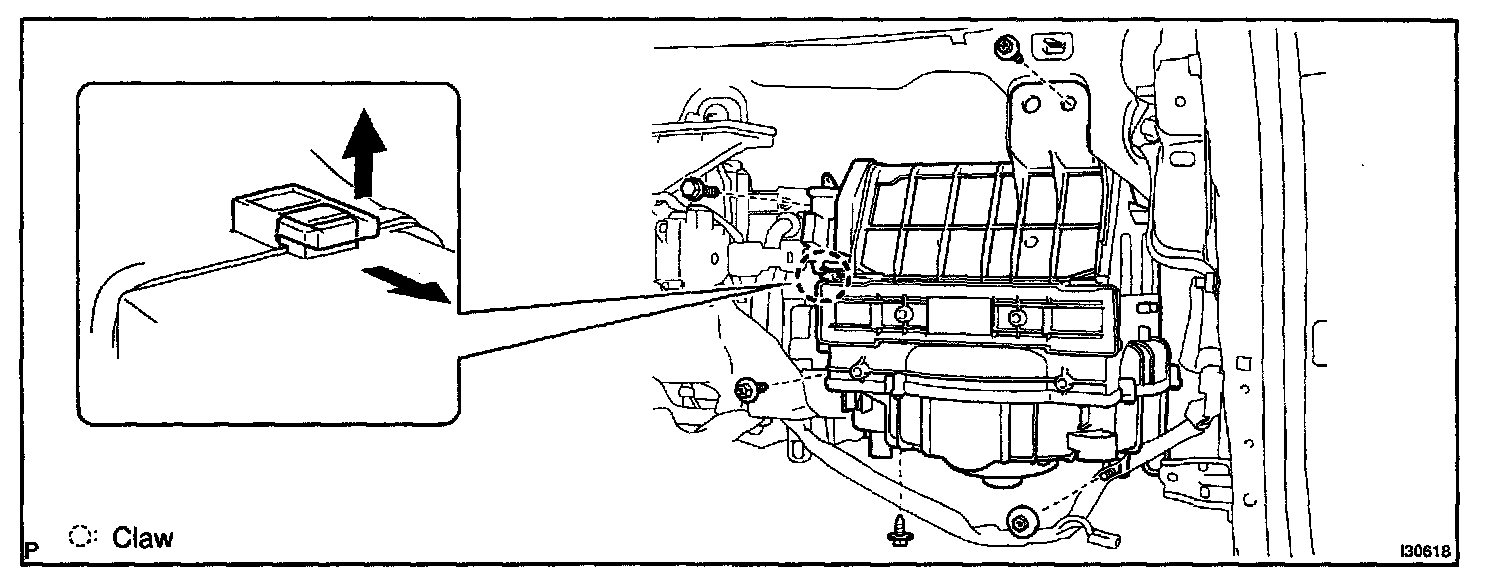

a. Disconnect the connector and clamp of the blower assy.

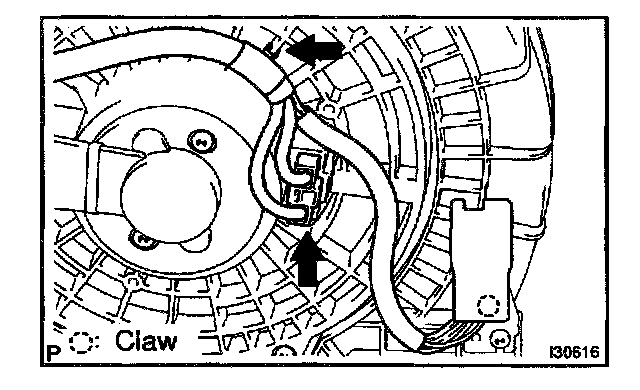

b. Release the claw, disconnect the connector from the bracket.
c. Remove the 3 screws, bolt and nut.




d. Release the claw, remove the blower assy.

41. REMOVE AIR REFINER ELEMENT
a. Remove the air filter cover, air refiner element and flame.




42. REMOVE RECIRCULATE ON DAMPER SERVO SUB-ASSY

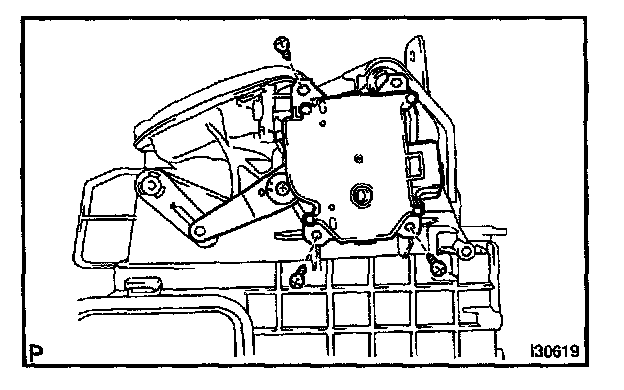

a. Remove the 3 screws and recirculation damper servo sub-assy.




43. REMOVE BLOWER W/FAN MOTOR SUB-ASSY

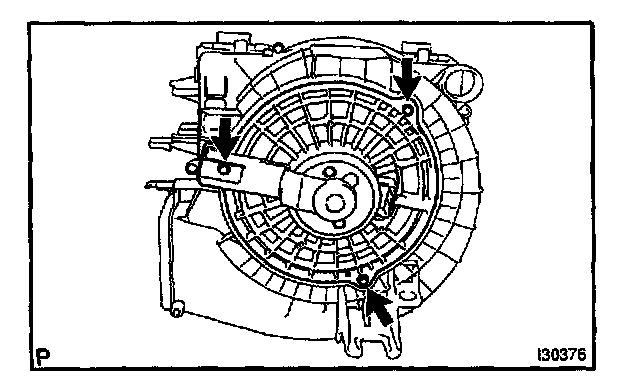

a. Remove the 3 screws and blower w/fan motor sub-assy.

44. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY
45. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.2
46. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.1
47. INSTALL CONSOLE BOX ASSY
48. CENTER SPIRAL CABLE
49. INSTALL STEERING WHEEL ASSY
50. INSPECT STEERING WHEEL CENTER POINT
51. INSPECT HORN BUTTON ASSY
52. INSTALL HORN BUTTON ASSY
53. INSPECT SRS WARNING LIGHT
