Home >> Lexus >> 2003 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Belt

Seat Belt

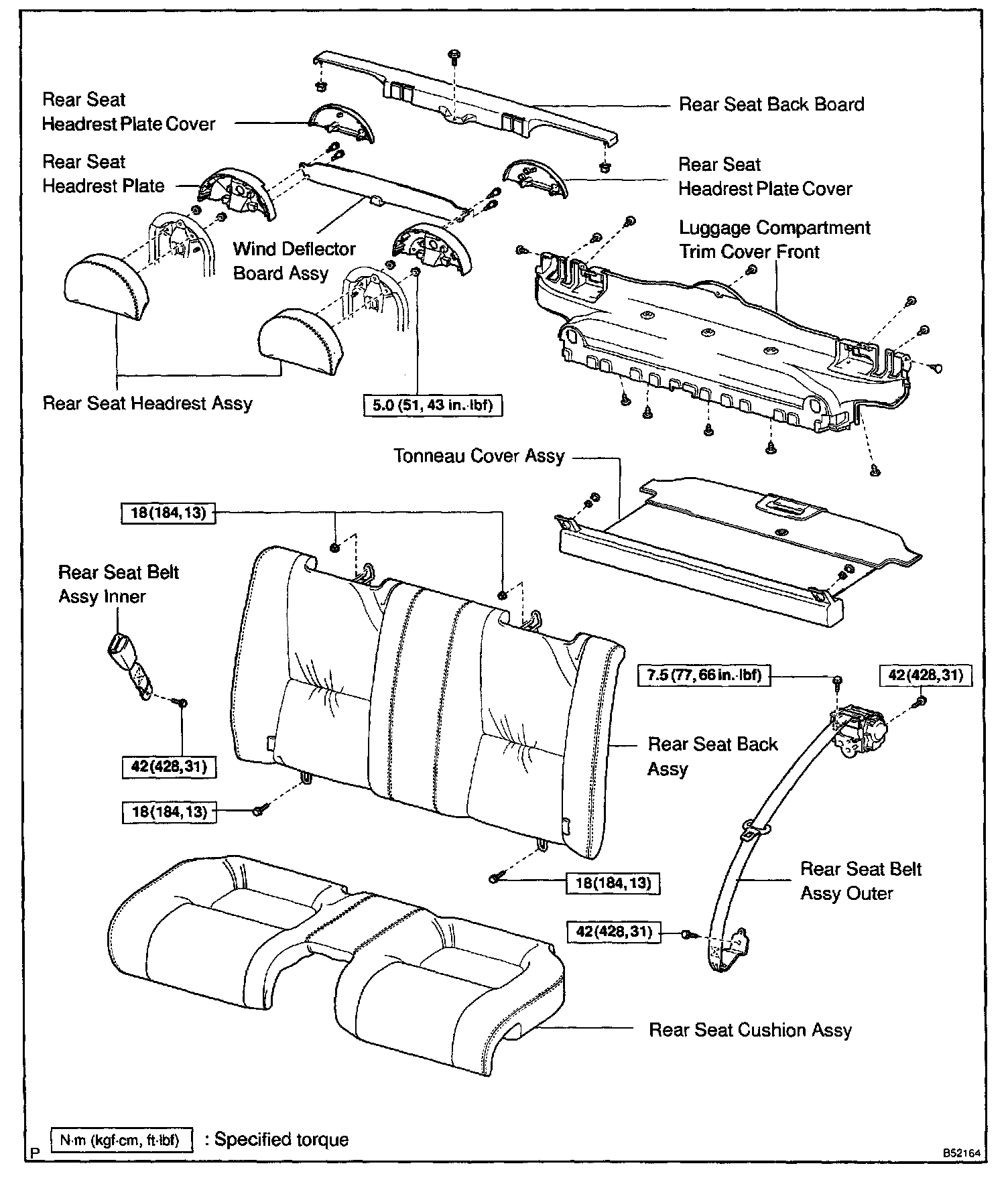

Rear Seat Belt:



Front Seat Belt:

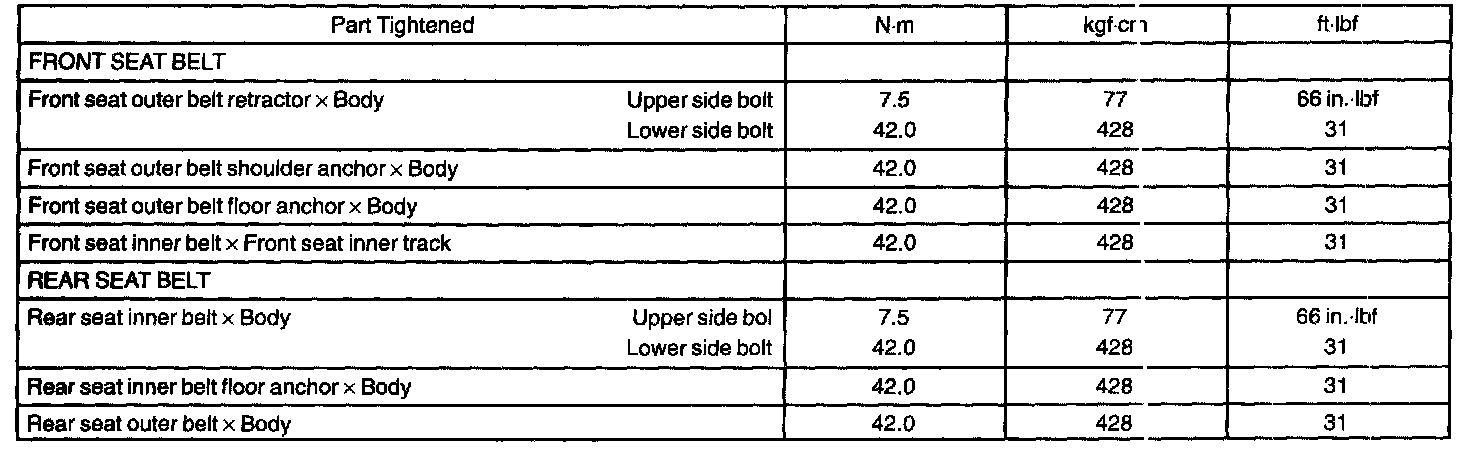

Seat Belt - Torque Specification:
