Rear Crankshaft Main Bearing Seal

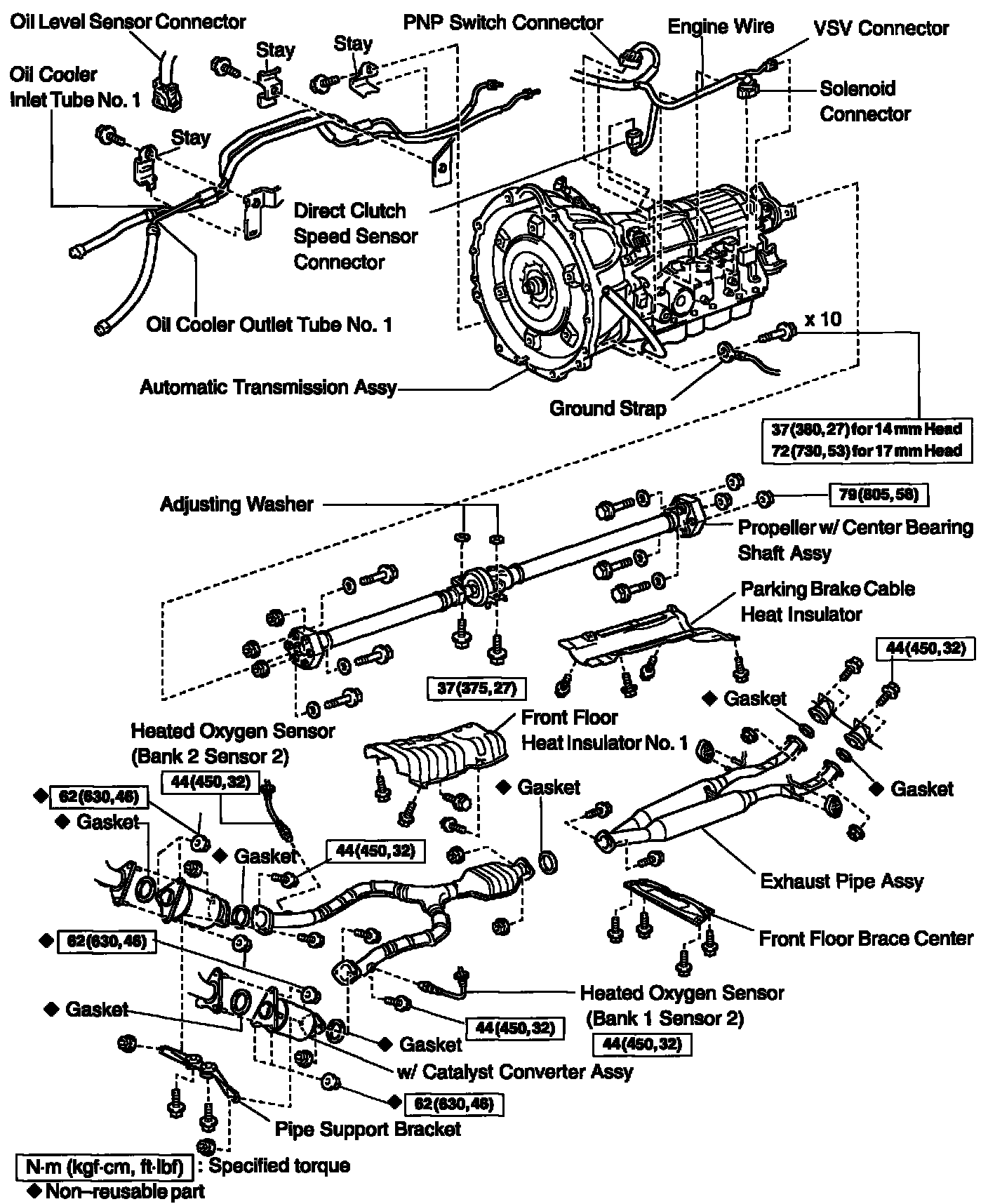

Part 1 Of 2:

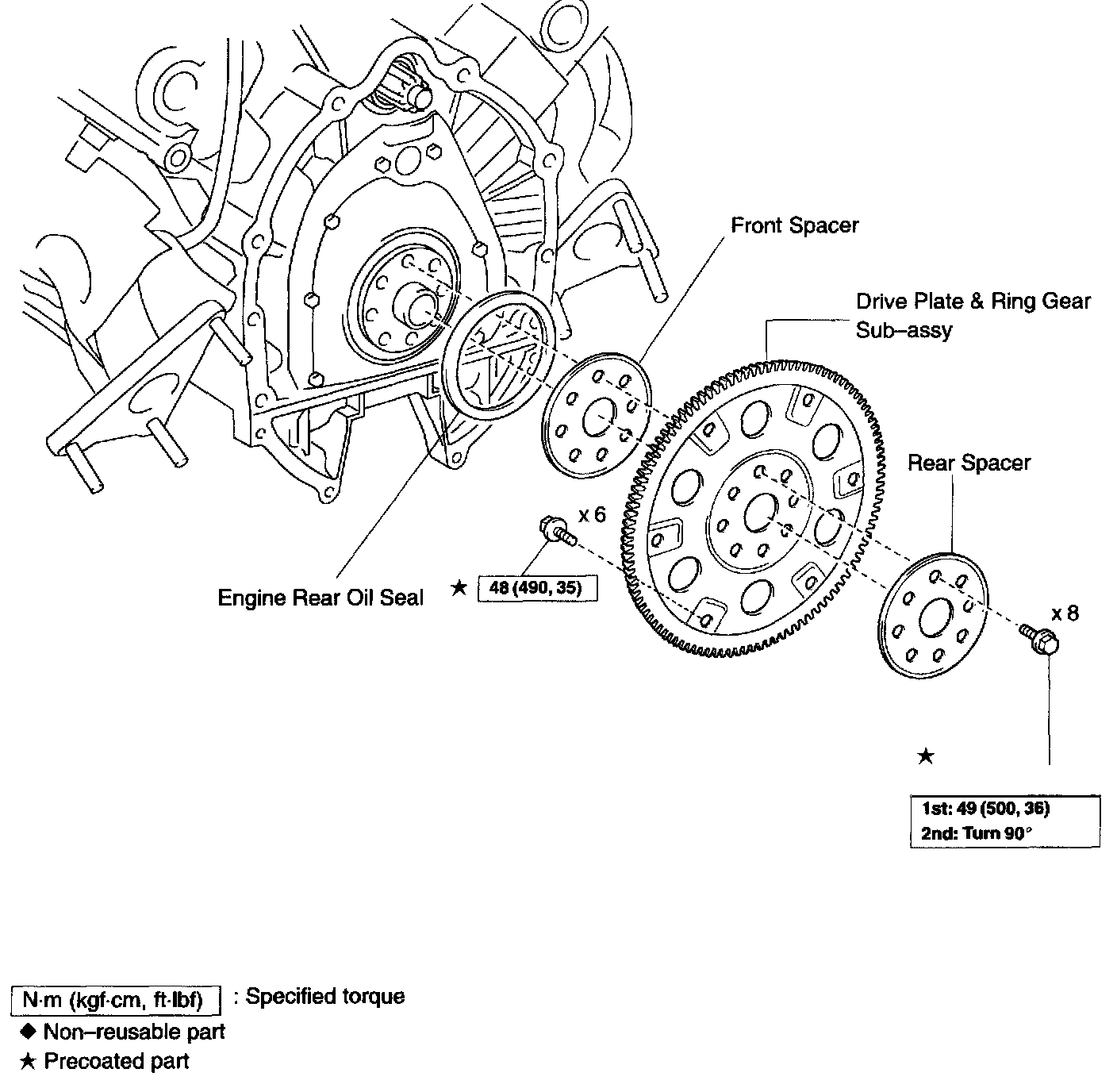

Part 2 Of 2:





ENGINE REAR OIL SEAL REPLACEMENT W/ RELATED COMPONENTS
