Cylinder Head Cover Gasket RH




Part 2 Of 2:

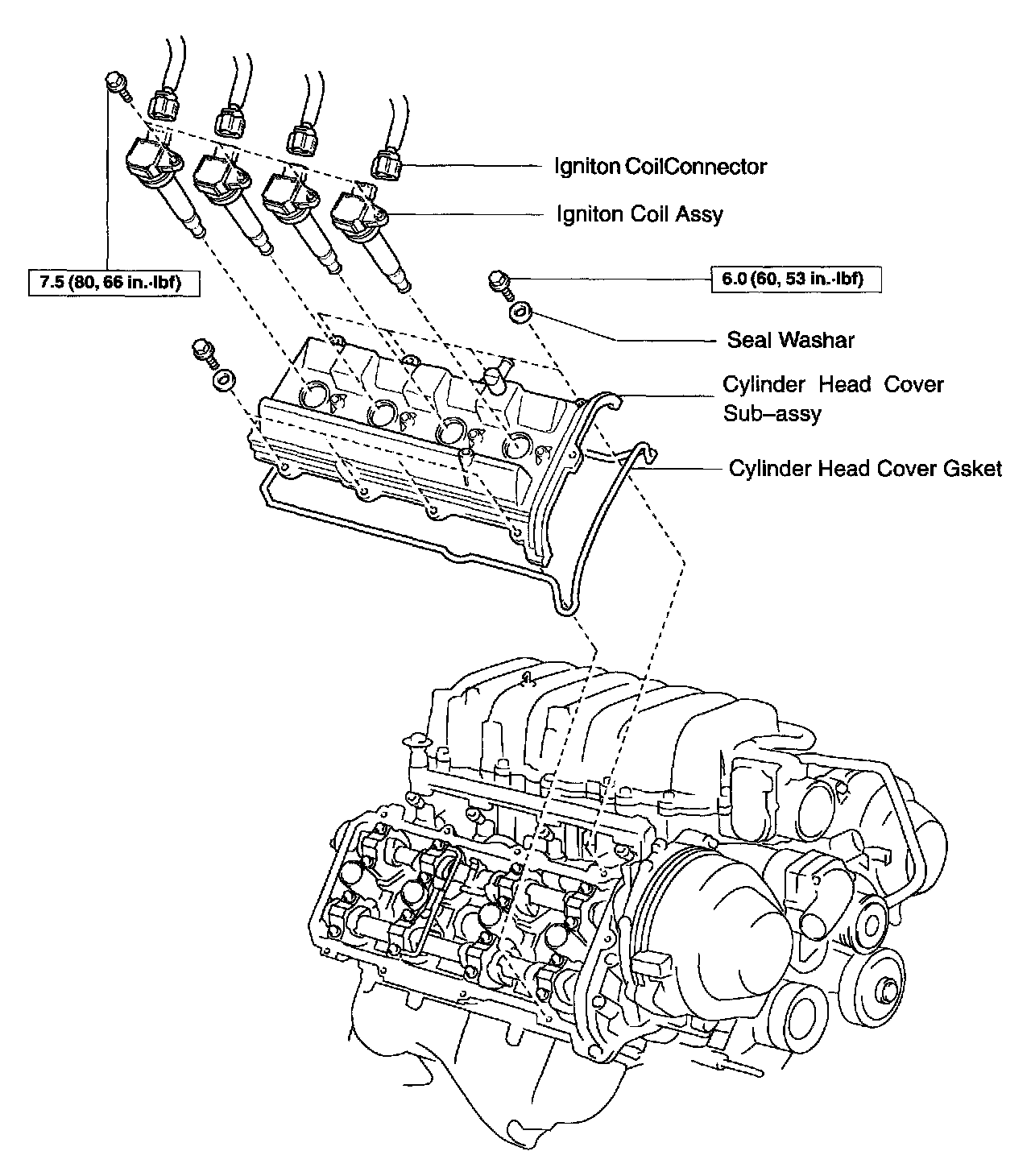

CYLINDER HEAD COVER GASKET REPLACEMENT W/ RELATED COMPONENTS
