Brakes and Traction Control
>>
Brake Pedal Assy

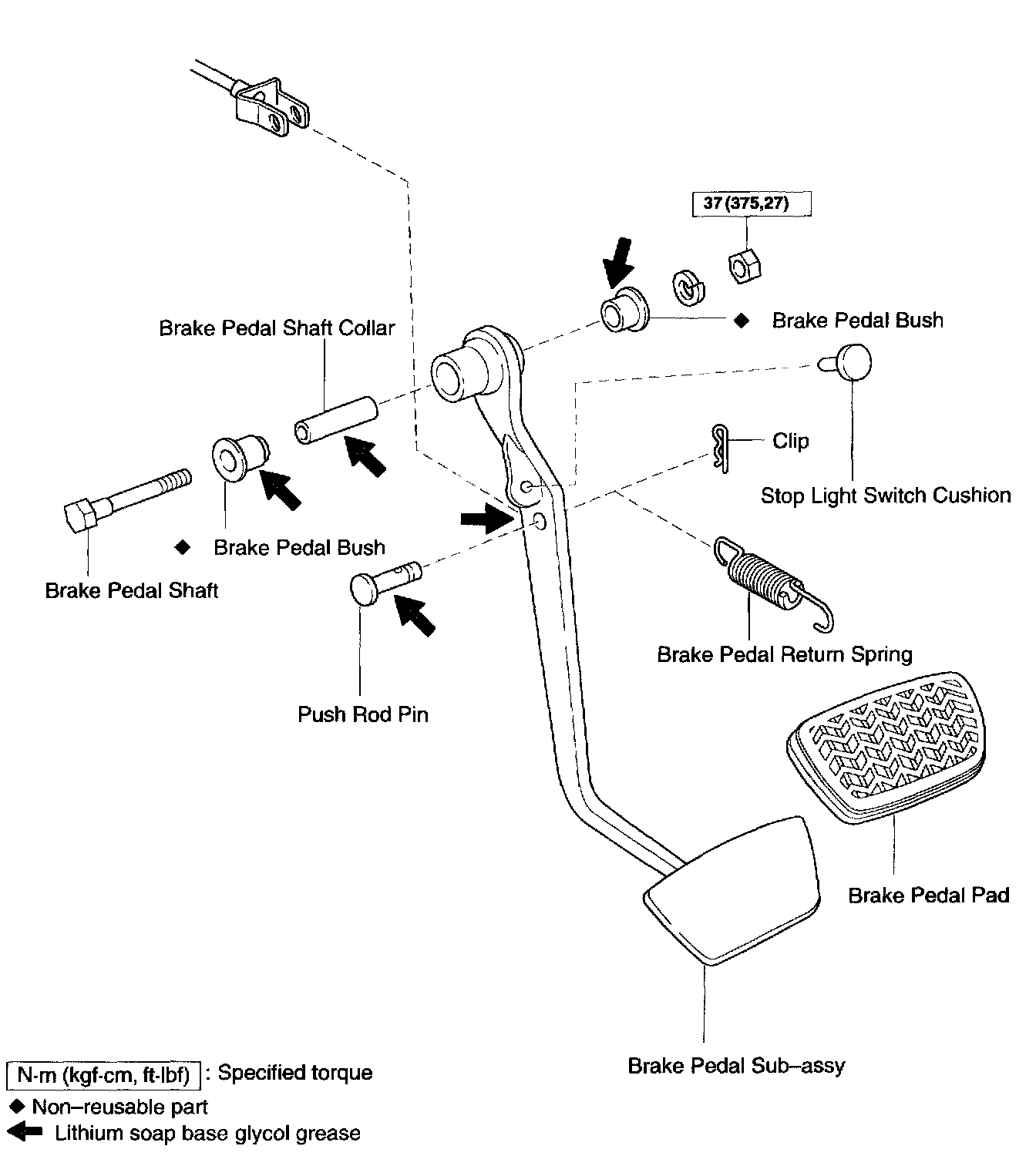

Brake Pedal Assy
REPLACEMENT
HINT:
After installation, check and adjust brake pedal height, freeplay and reserve distance.
