Parking Brake Cable No. 3

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

PARKING BRAKE CABLE ASSEMBLY NO.3
REPLACEMENT

HINT: For parking brake cable No. 2, employ the same procedure to the No. 3.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH
3. REMOVE REAR DISC
4. REMOVE PARKING BRAKE SHOE STRUT LH
5. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET
6. REMOVE PARKING BRAKE SHOE ASSEMBLY LH NO.1
SST 09718-00010
7. REMOVE PARKING BRAKE SHOE ASSEMBLY LH NO.2
SST 09718-00010
8. REMOVE PARKING BRAKE SHOE LEVER LH





9. SEPARATE PARKING BRAKE CABLE ASSEMBLY NO.3

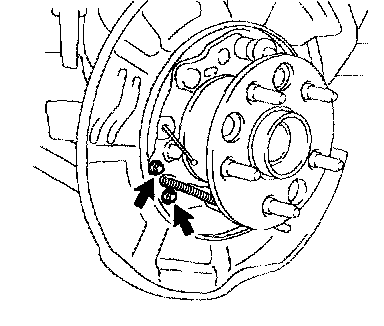

a. Remove the 2 bolts, and disconnect the parking brake cable No. 3 from the backing plate.
10. REMOVE FRONT FLOOR BRACE CENTER
11. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH
12. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH
13. SEPARATE OXYGEN SENSOR
14. REMOVE EXHAUST PIPE
15. REMOVE FRONT FLOOR HEAT INSULATOR NO.1
16. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
17. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.3
a. Remove the 3 bolts and disconnect the parking brake cable No. 3 from the body.
b. Disconnect the parking brake cable No. 3 from the parking brake intermediate lever sub-assembly, and remove the parking brake cable No. 3.
c. Remove the 2 cable support brackets from the parking brake cable No. 3.





18. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3
a. Install the 2 cable support brackets to the parking brake cable No. 3
b. Install the parking brake cable No. 3 to the parking brake intermediate lever sub-assembly
c. Install the parking brake cable No 3 to the clamp.

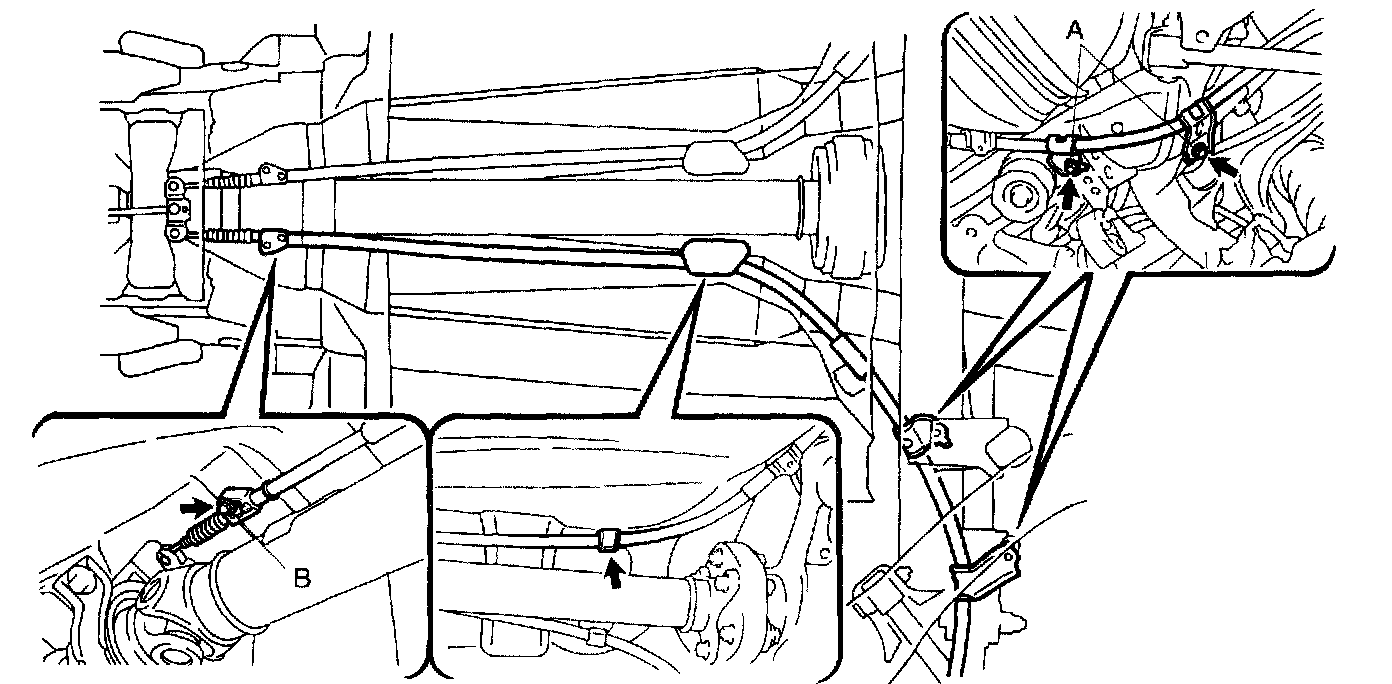

d. Install the parking brake cable No. 3 to the body with the 3 bolts
Torque:
Bolt A: 18.6 Nm (190 kgf-cm, 19 ft. lbs.)
Bolt B: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
19. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
20. INSTALL FRONT FLOOR HEAT INSULATOR NO.1
21. INSTALL EXHAUST PIPE
22. INSTALL OXYGEN SENSOR
23. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH
24. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH
25. INSTALL FRONT FLOOR BRACE CENTER





26. CONNECT PARKING BRAKE CABLE ASSEMBLY NO.3

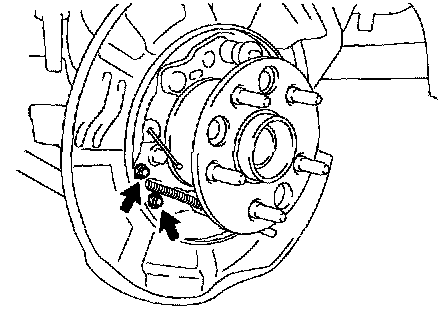

a. Install the parking brake cable No 3 with the 2 bolts to the backing plate
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
27. APPLY HIGH TEMPERATURE GREASE
28. INSTALL PARKING BRAKE SHOE LEVER LH
29. INSTALL PARKING BRAKE SHOE ASSEMBLY LH NO.2
SST 09718-00010
30. INSTALL PARKING BRAKE SHOE ASSEMBLY LH NO.1
SST 09718-00010
31. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET
32. INSTALL PARKING BRAKE SHOE STRUT LH
33. CHECK PARKING BRAKE INSTALLATION
34. INSTALL REAR DISC
35. ADJUST PARKING BRAKE SHOE CLEARANCE
36. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH
37. INSTALL REAR WHEEL
a. Install the rear wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
b. Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
38. CHECK PARKING BRAKE PEDAL TRAVEL
39. ADJUST PARKING BRAKE PEDAL TRAVEL
40. CHECK EXHAUST GAS LEAK
