Always On - Malfunction In ECU (VSC Warning Light)

Always ON MALFUNCTION IN ECU (VSC WARNING LIGHT)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

If the ECU stores DTC, the VSC warning light lights on the combination meter.

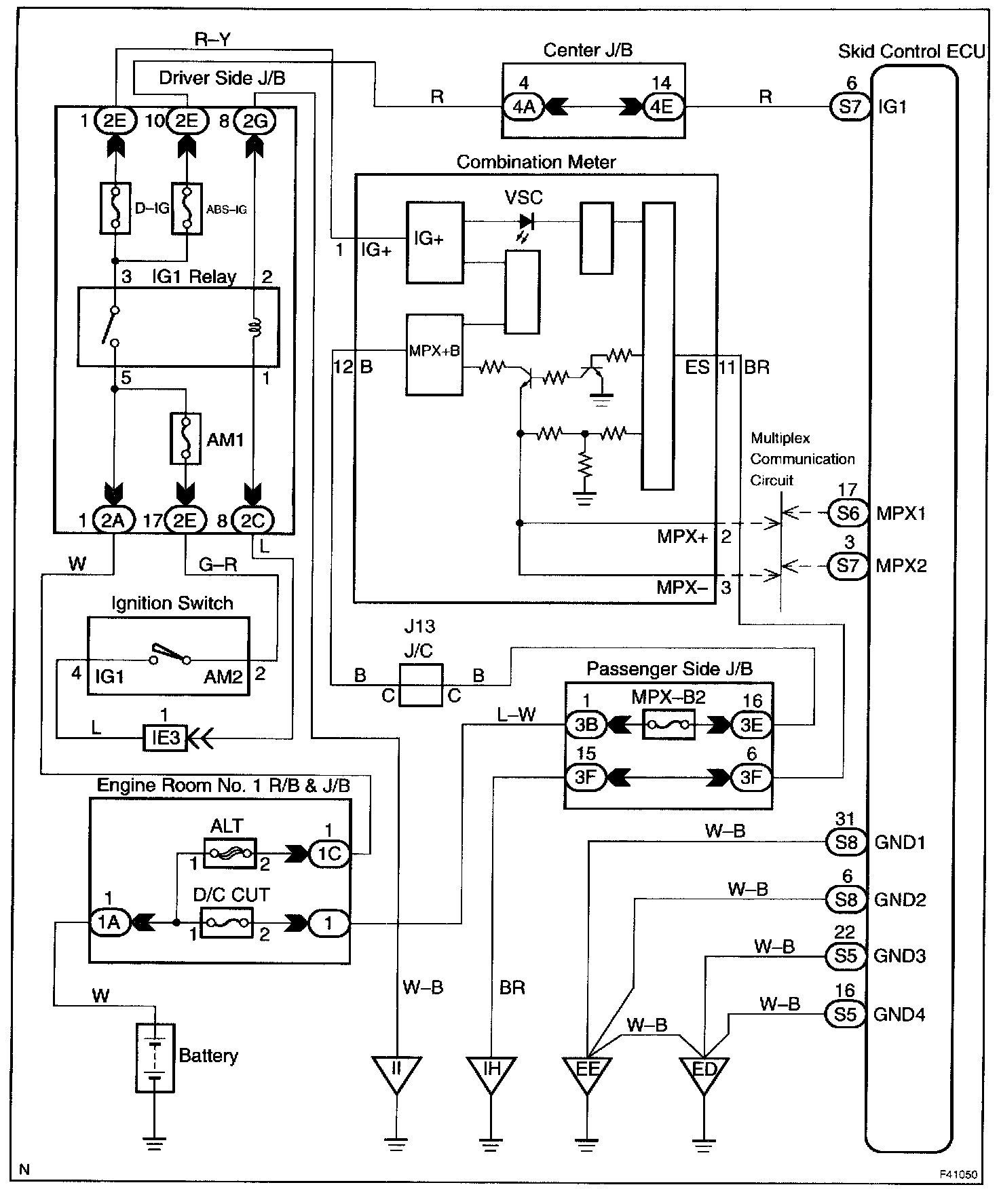

Wiring Diagram:

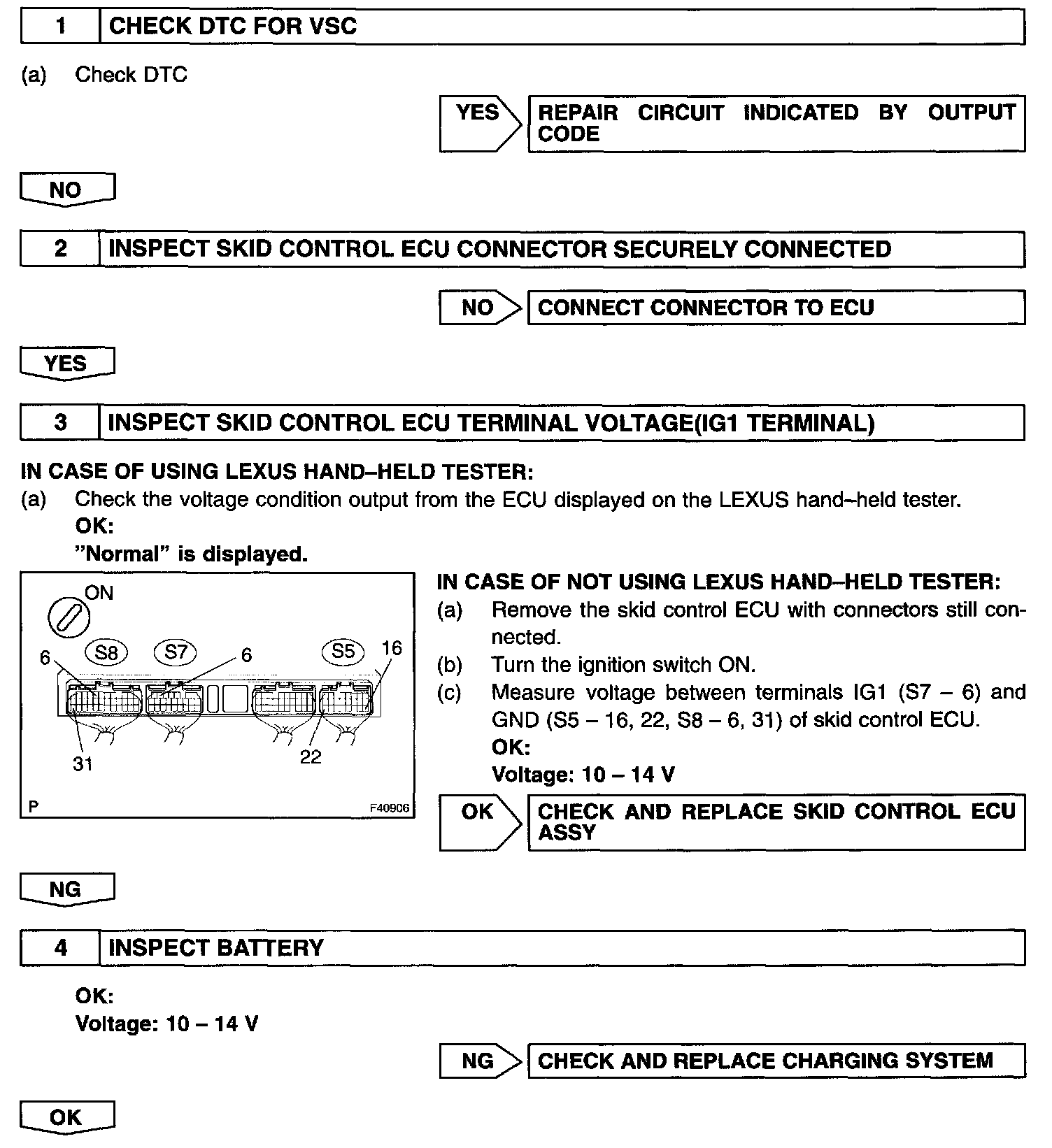

Step 1 - 4:

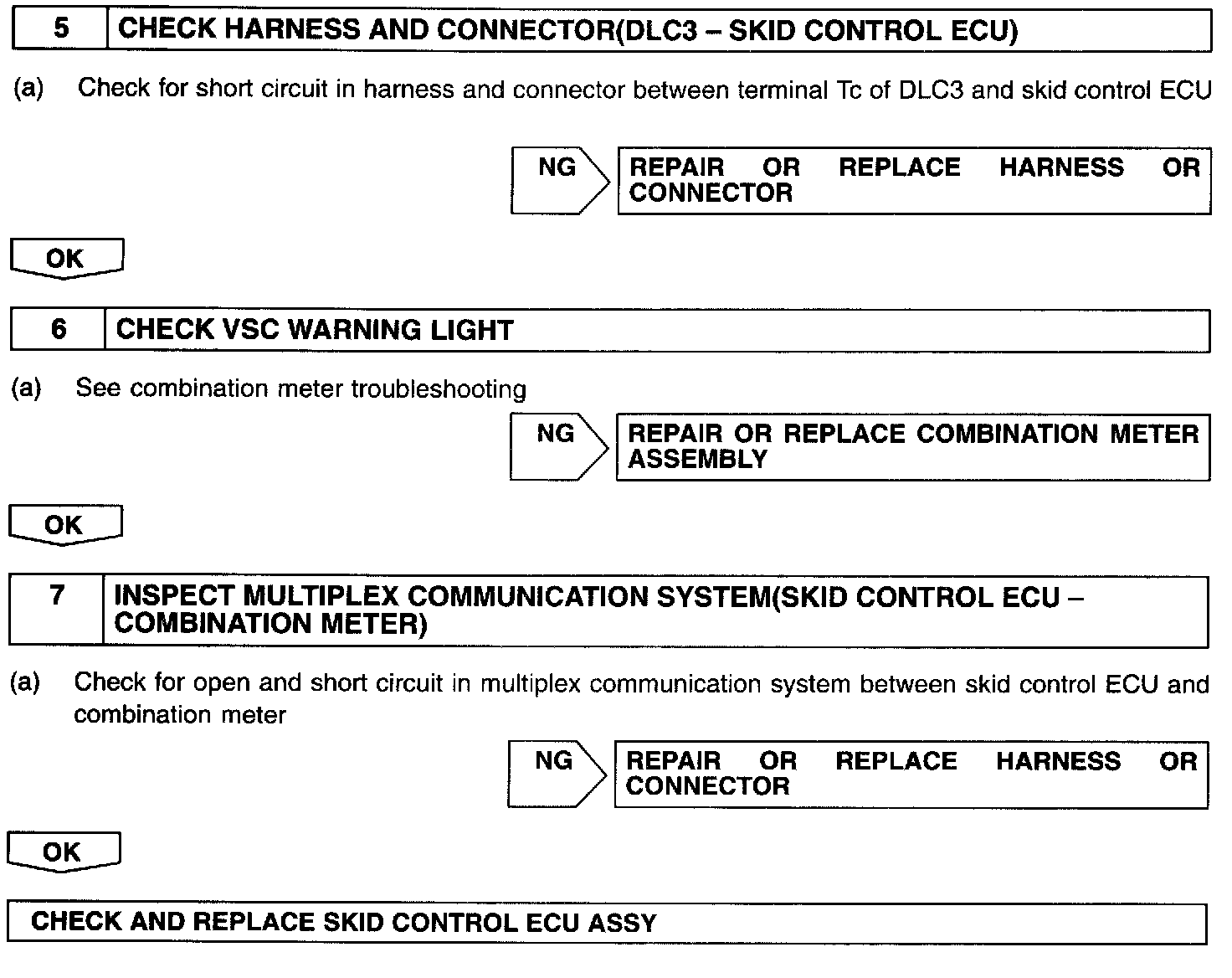

Step 5 - 7:

INSPECTION PROCEDURE
