Always On - Malfunction In ABS ECU
Always On - Malfunction In ABS ECU
DTC Always On Malfunction In ABS ECU

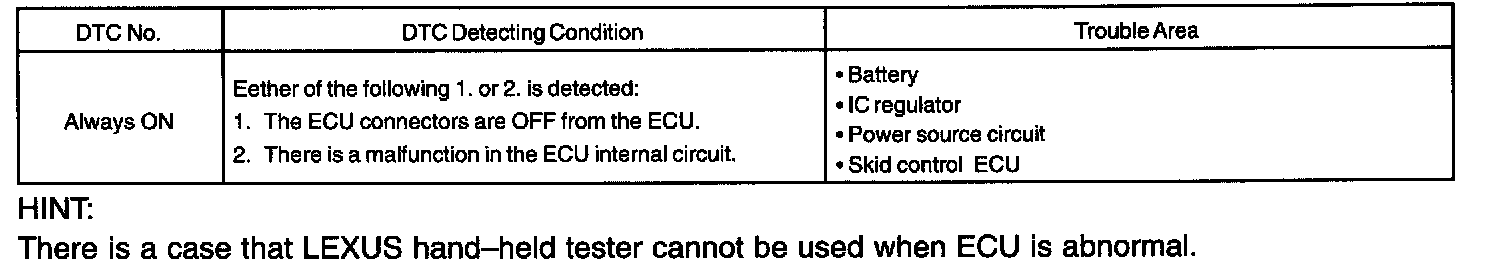

DTC Detecting Condition:
CIRCUIT DESCRIPTION

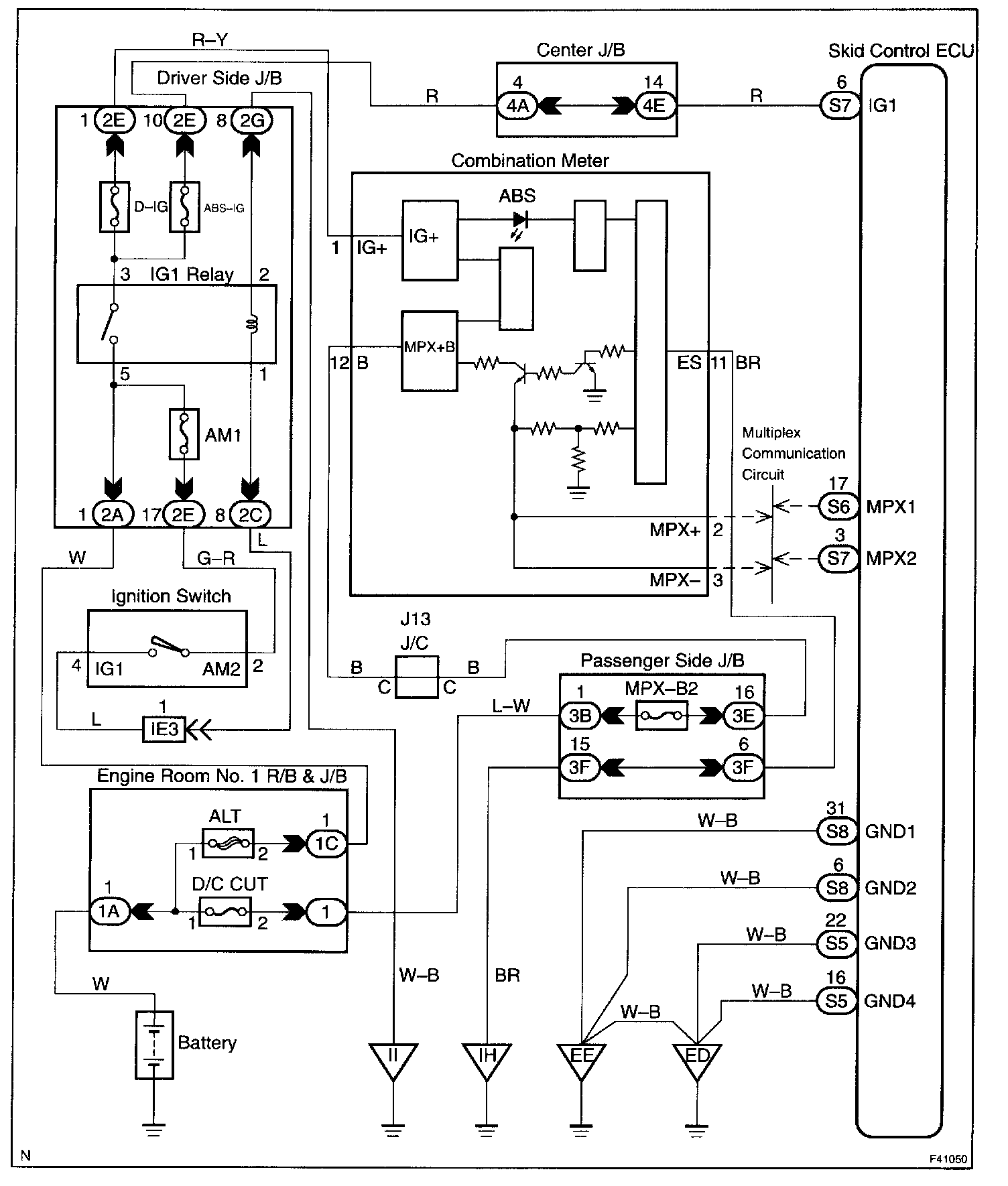

Wiring Diagram:
Step 1 - 4:

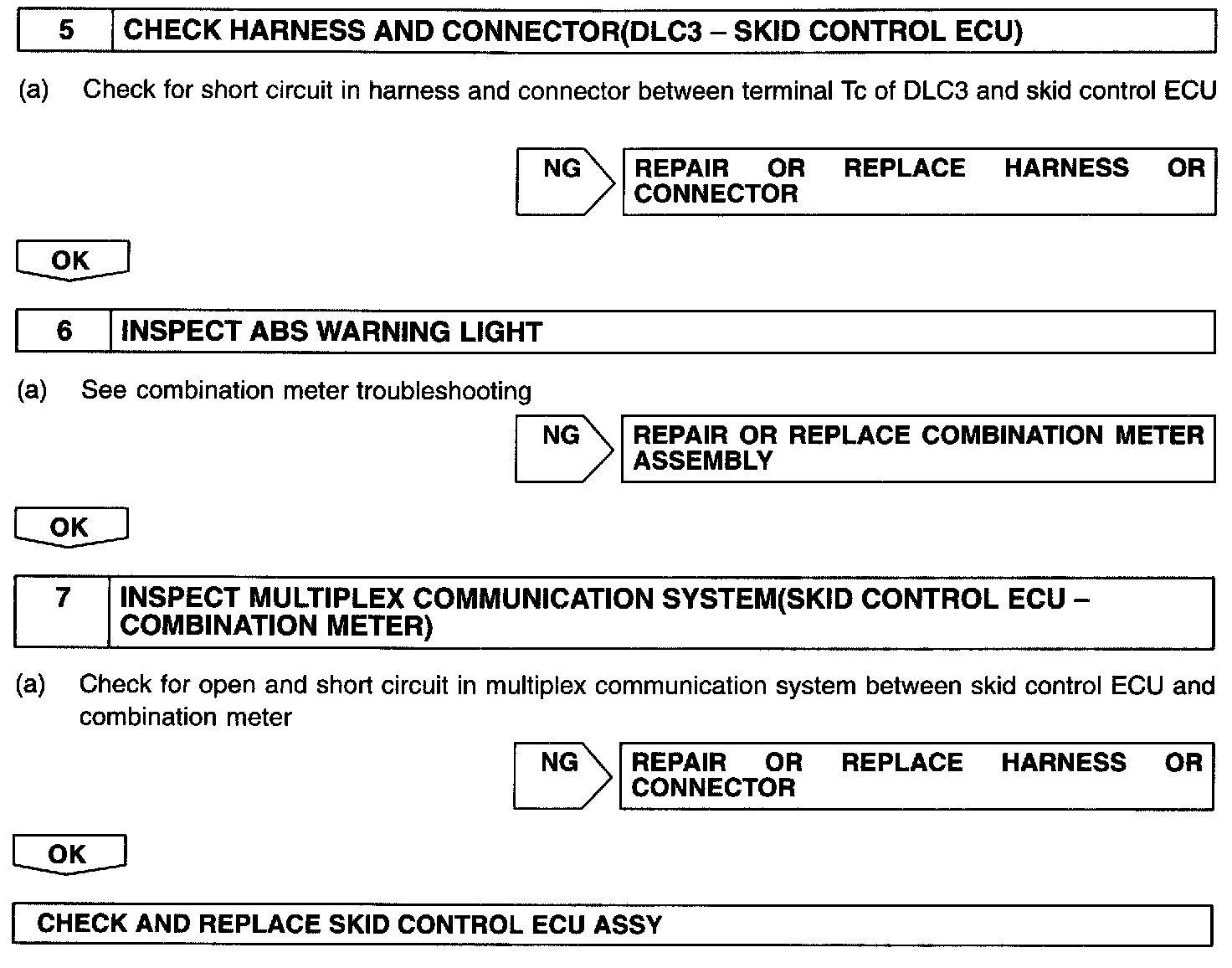

Step 5 - 7:
INSPECTION PROCEDURE
