Without Scan Tool

Clear the DTC




1. Using SST, connect the terminals Tc and CG of the DLC3.
SST 09843-18040

2. Turn the ignition switch ON.

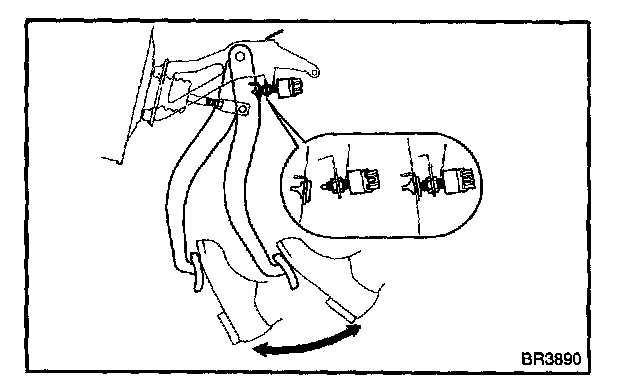

3. Clear DTC stored in ECU by depressing the brake pedal 8 or more times within 5 sec.
4. Check that the ABS warning light and VSC warning light shows the normal code.
5. Remove the SST from the DLC3.
SST 09843-18040

HINT: Disconnect the battery cable during repairs will not erase the DTC in the ECU.
