Skid Control Buzzer Circuit

CIRCUIT DESCRIPTION
The skid control buzzer sounds during VSC operation.

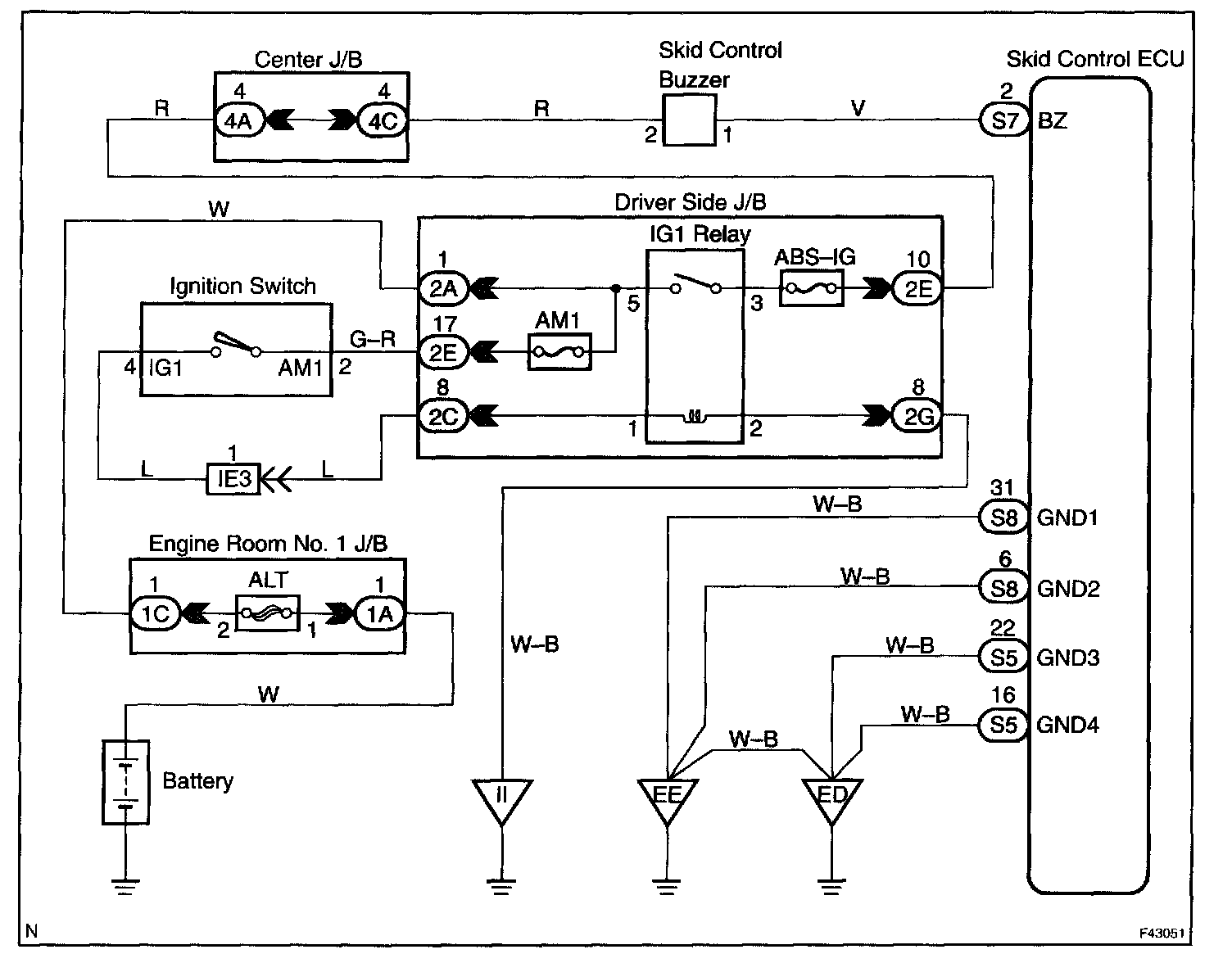

Wiring Diagram:

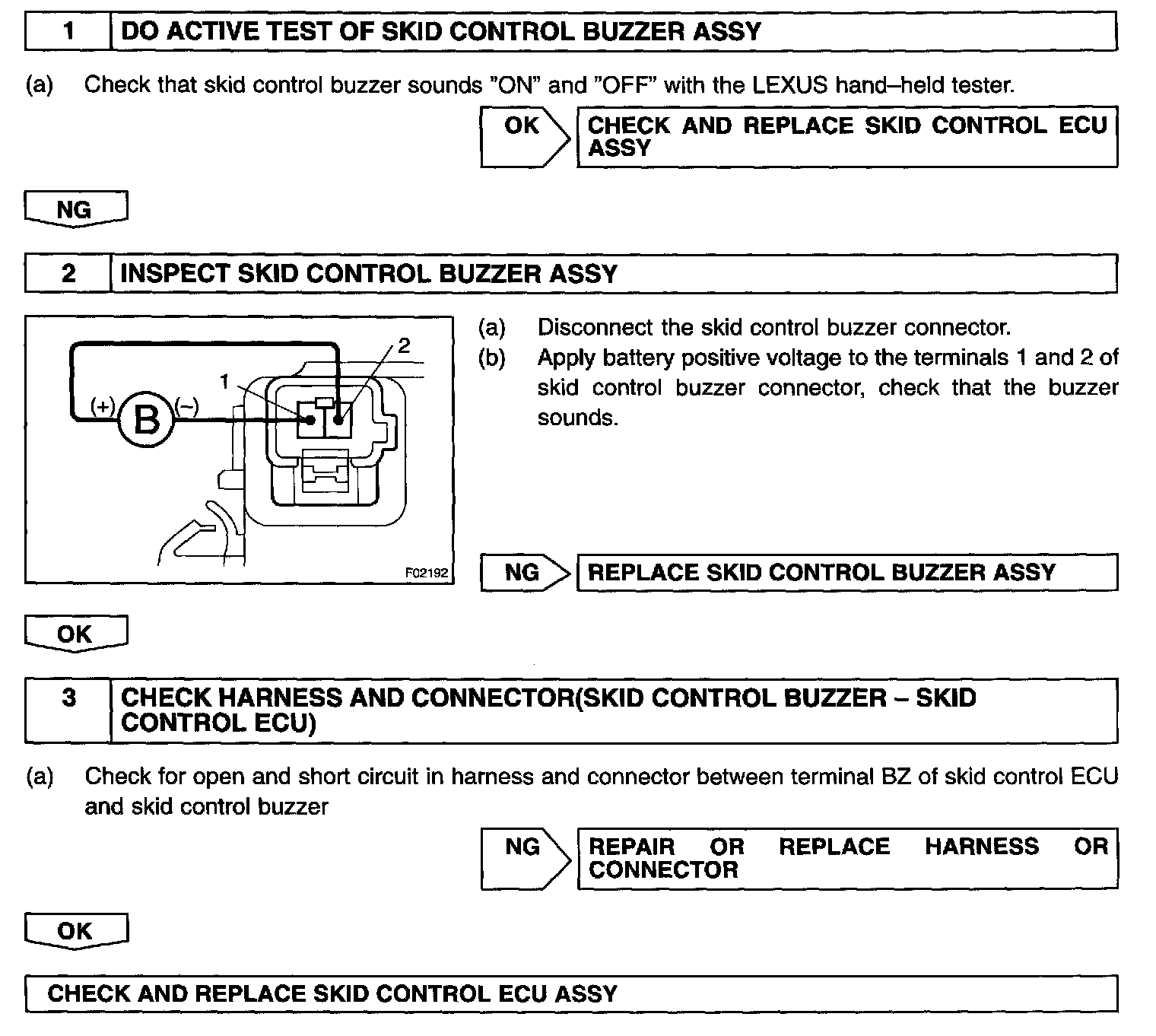

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using LEXUS hand-held tester and start from step 2 in case of not using LEXUS hand-held tester.
