Seat Temperature Switch: Testing and Inspection

INSPECT SEAT HEATER SWITCH

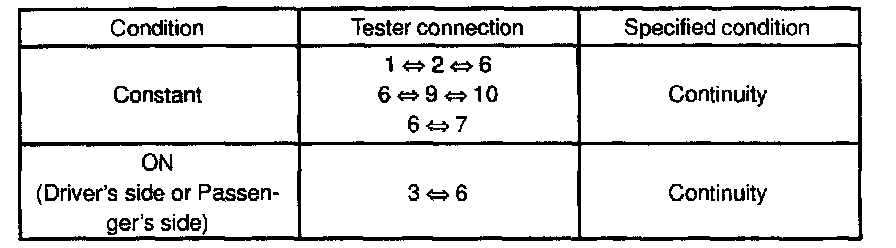

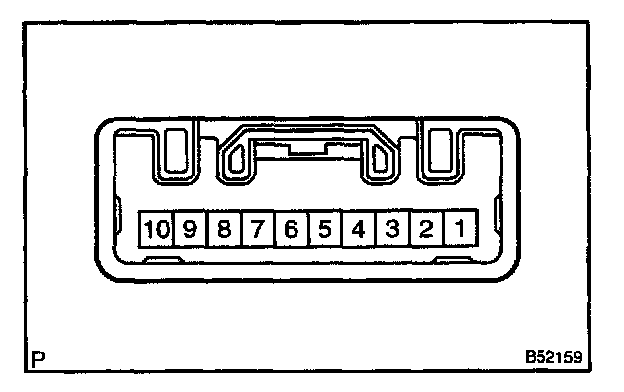

a. Inspect the seat heater switch continuity.
If the continuity is not as specified, replace the seat heater switch.

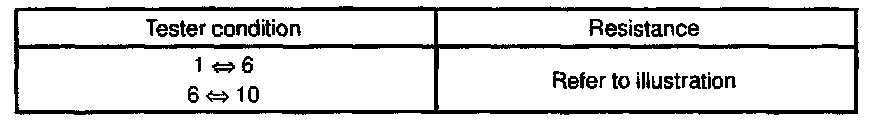

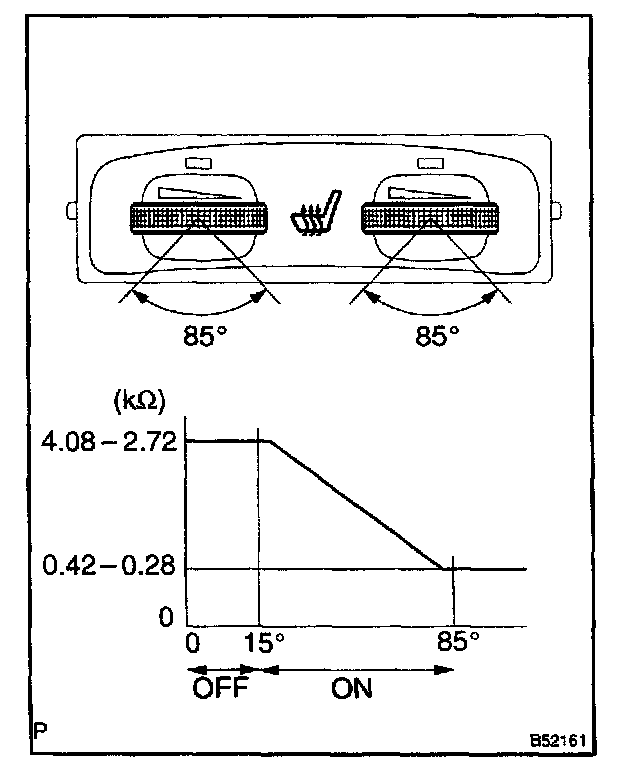

b. Inspect the seat heater switch resistance.
If the resistance value is not as specified, replace the seat heater switch.
